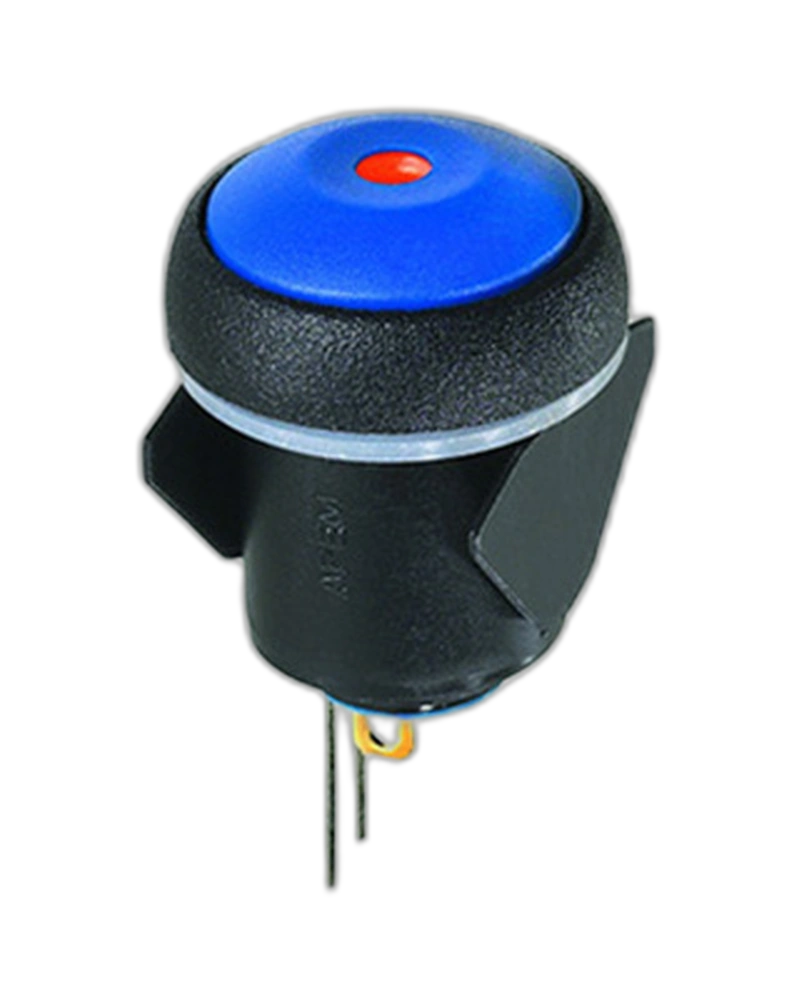

The APEM Panel Switches IQR1S422 is a Switches and Pushbutton with documented product-specific characteristics including Electrical Functions: ON OFF Bushing Bezel: Black Standard; terminals: 4 A 48 VDC, 500,000 cycles; Insulation resistance: 1 GΩ min. at 500 VDC.
The Panel Switches IQR1S422 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | with flat seal: 2.20 mm (.088) max. without flat seal: 3 mm (.118) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| operating force | 4N +/- 2N Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Latching actio |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts:Code 2: screw |
The APEMPanel Switches IQR1S422 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | with flat seal : 2.20 mm (.088) max. without flat seal: 3 mm (.118) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| operating force | 4N +/- 2N Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Latching actio |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts:Code 2: screw |
