Explore performance details, construction highlights, applications, and technical information in one clear overview.

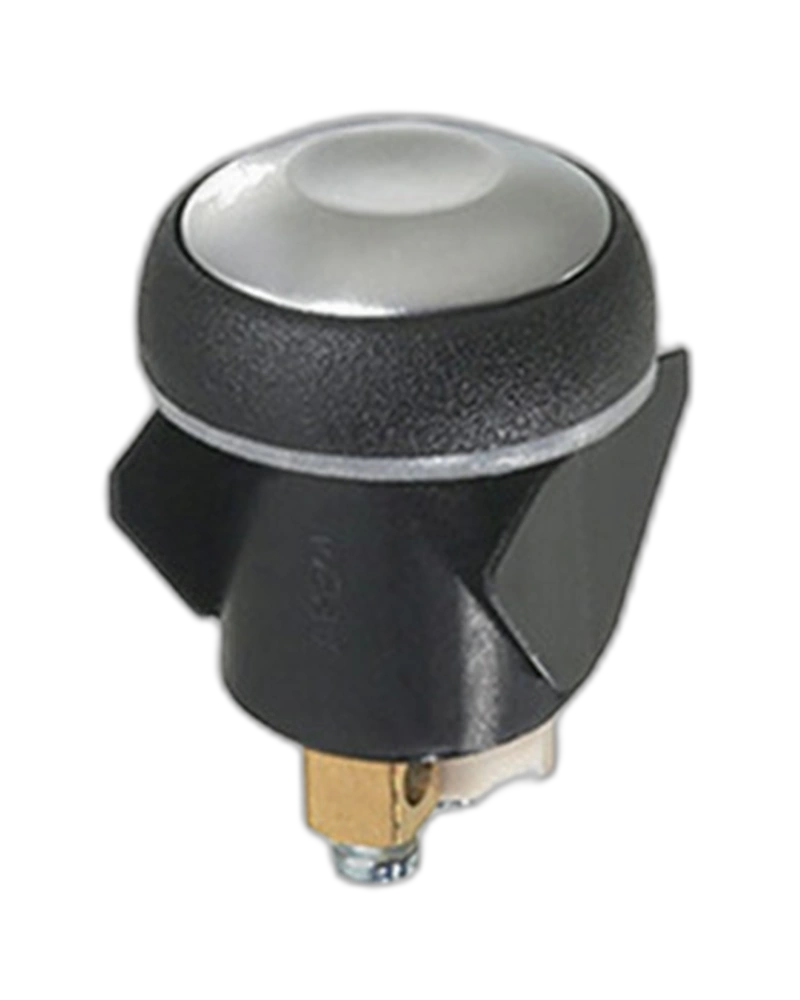

The IQP3S422 is a modern pushbutton switch with a round flat actuator, 200 mA current rating, 48 VDC voltage rating, and silver gold-plated contacts for reliable conductivity. Select Quantity
| Feature | Specification |
|---|---|
| force | 5 N |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | with flat seal: 2.20 mm (.088) max.without flat seal: 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0,3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Latching action |
| terminals | 4 A 48 VDC, 500,000 cycles |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts:Code 2: screw |
| Electrical Functions | Normally Open (NO) |
| Mounting | Solder Lug |
