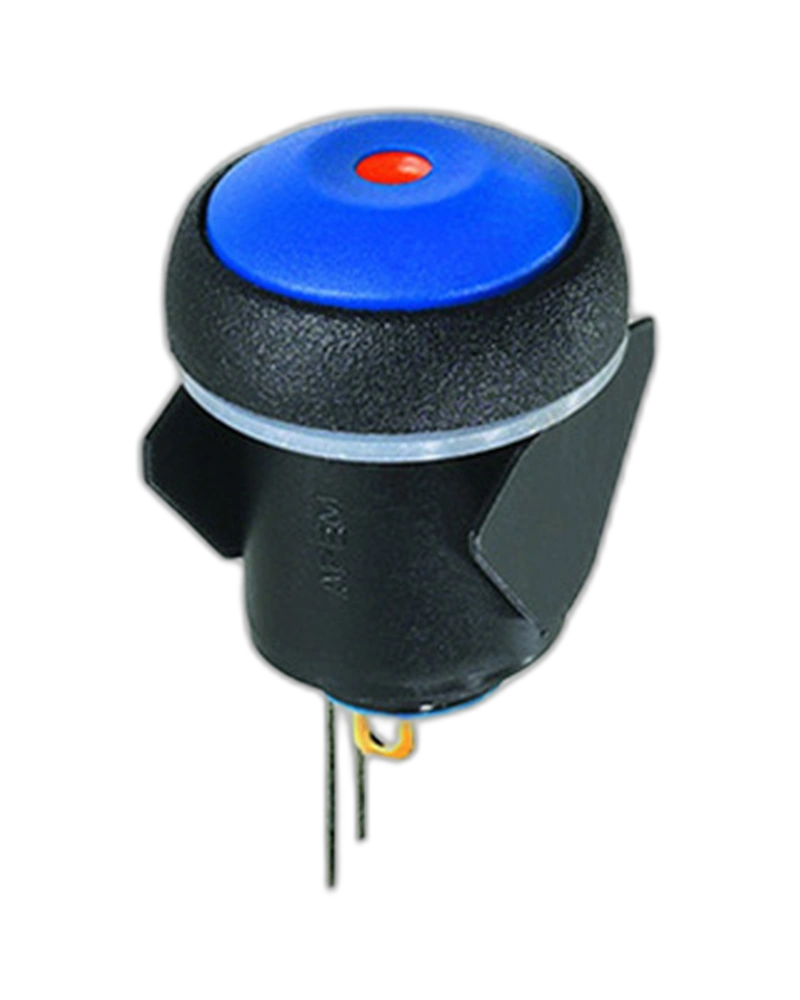

The APEM Panel Switches IQC1S422 is a robust autoswitch designed for industrial applications. Featuring IP54 sealing, 1,000,000 cycles, and operation across -40°C to +85°C, this switch ensures reliable performance in demanding environments. Ideal for electrical control systems requiring high durability and precision.
The APEM Panel Switches IQC1S422 is a high-reliability autoswitch engineered for industrial control systems. With a compact flat round actuator design, this switch delivers precise ON/OFF functionality while maintaining exceptional durability through its robust construction and extensive environmental protection. The product combines IP54 sealing with a wide operating temperature range of -40°C to +85°C, ensuring consistent performance in harsh industrial settings without compromising on electrical safety or mechanical resilience.
The IQC1S422 delivers precise electrical switching with gold-plated contacts rated for 200 mA at 48 VDC over 500,000 cycles. It maintains a minimum insulation resistance of 1 GΩ at 500 VDC and features a dielectric strength of 1,500 Vrms. The switch supports low-level or mechanical life of 1,000,000 cycles, ensuring long-term operational stability in critical electrical environments.
Engineered for extreme conditions, the IQC1S422 withstands shock resistance of 100 g (IEC 512-4, test 6c) and vibration resistance from 10-500 Hz at 10 g (IEC 512-4, test 6d). It also passes salt spray testing (IEC 512-6, test 11f), making it suitable for outdoor or marine applications where environmental exposure is a concern.
With a panel thickness of 2.20 mm (with flat seal) or 3 mm (without flat seal), the IQC1S422 features a compact flat round actuator design. The switch includes latching action for secure operation and is available with optional marking for enhanced identification. Its robust construction ensures minimal wear even under repeated use.
The IQC1S422 operates within a temperature range of -40°C to +85°C, accommodating both extreme cold and high heat. It has a total travel of 1.6 mm (±0.3 mm) and an operating force of 4 N ± 2 N, ensuring smooth and consistent actuation. The switch also supports soldering at 320°C for up to 3 seconds without compromising integrity.
| Feature | Specification |
|---|---|
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | with flat seal : 2.20 mm (.088) max. without flat seal: 3 mm (.118) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| operating force | 4N +/- 2N Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Latching actio |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts:Code 2: screw |
| Electrical Functions | ON OFF |
The APEMPanel Switches IQC1S422 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | with flat seal : 2.20 mm (.088) max. without flat seal: 3 mm (.118) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| operating force | 4N +/- 2N Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Latching actio |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts:Code 2: screw |
| Electrical Functions | ON OFF |
