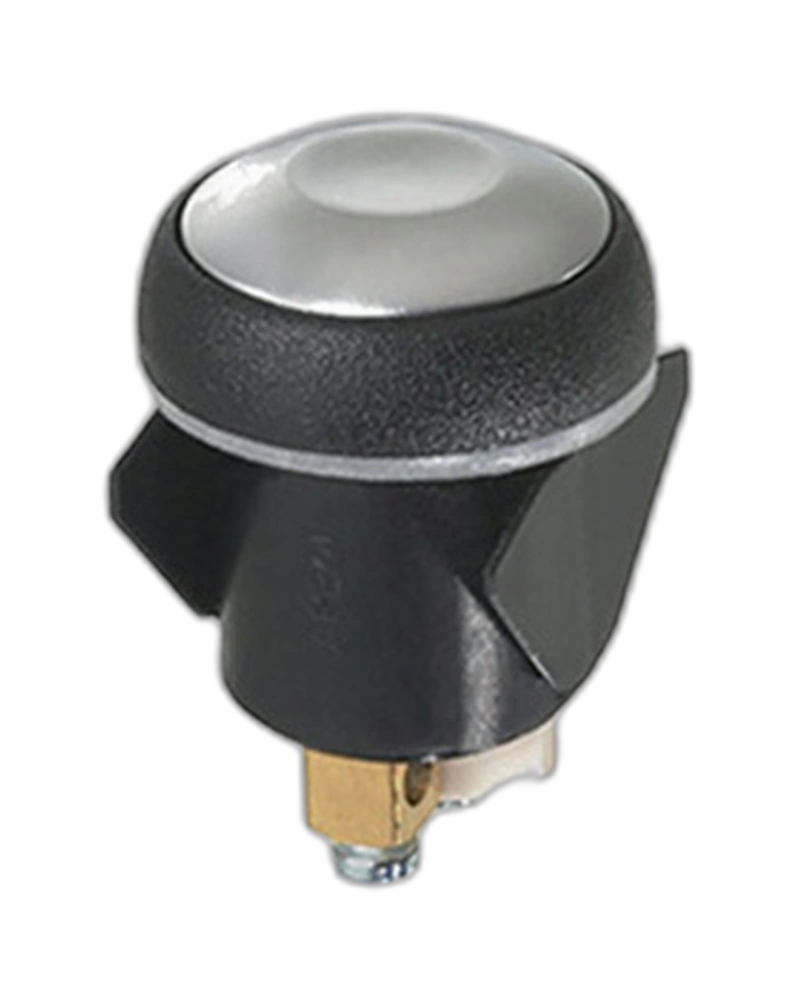

IQ - momentary IQR3F432 Sealed pushbutton switch from the IQ series with snap-in mounting for quick installation, ensuring time and cost savings.

Brand APEM
Category Autoswitches
Subcategory Switches and Pushbutton

Panel Switches IQ - momentary

IQ - momentary IQR3F432 Sealed pushbutton switch from the IQ series with snap-in mounting for quick installation, ensuring time and cost savings. Select Quantity

Key Features

Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F) Latching action models Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Flat round actuator for opti
terminals: 4 A 48 VDC, 500,000 cycles
Max. current/voltage rating with resistive load: - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts: Code 2: screw
Latching action models Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marking
Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marking
Electrical Functions: Normally Open (NO)
LED Color: Non-Illuminated,Actuator Colors:White,Bushing Bezel:Black Standard
Mounting: Straight PC
Illuminated or non-illuminated Flat round actuator for optional marking
Flat round actuator for optional marking
Dia.16 mm bushing
Sealed to IP54
Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67
Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67
Compact Flat round actuator for optional marking Sealed to IP67
Flat round actuator for optional marking Sealed to IP67
Sealed to IP67
Datasheet 3D CAD Files Name Last Updated File Type File Size pusbutton_switches_serie_IQ 16/08/2024
Snap-in mounting for easy installation
Tactile feedback
Illuminated or non-illuminated
Wide choice of actuator and illumination colors
Five terminal options, including screw terminals
Silver contacts for screw terminal types, gold plated contacts for other types

Technical Specifications

Electrical Specifications

Feature	Specification
Insulation resistance	1 GΩ min. at 500 VDC
Initial contact resistance	100 mΩ max.
Dielectric strength	1,500 Vrms between terminals

Environmental Specifications

Feature	Specification
sealing	IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f

General Specifications

Feature	Specification
Panel thickness	with flat seal: 2.20 mm (.088) max.without flat seal: 3 mm (.118) max.
Total travel	2.5 mm (.098) +/- 0,3 mm Typical
operating force	5 N +/- 2 N Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec.

Specifications

Feature	Specification
force	5 N

Feature

Specification

Insulation resistance

1 GΩ min. at 500 VDC

Feature

Specification

sealing

IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f

Feature

Specification

Panel thickness

with flat seal: 2.20 mm (.088) max.without flat seal: 3 mm (.118) max.

Total travel

2.5 mm (.098) +/- 0,3 mm Typical

operating force

5 N +/- 2 N Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec.

Feature	Specification
Operating temperature	-40 °C to +85 °C (-40 °F to 185 °F) Latching action models Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Flat round actuator for opti
terminals	4 A 48 VDC, 500,000 cycles
Max. current/voltage rating with resistive load	- Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts: Code 2: screw
Electrical Functions	Normally Open (NO)
Mounting	Straight PC

Feature

Specification

Operating temperature

-40 °C to +85 °C (-40 °F to 185 °F) Latching action models Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Flat round actuator for opti

terminals

4 A 48 VDC, 500,000 cycles

Max. current/voltage rating with resistive load

- Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts: Code 2: screw

Electrical Functions

Normally Open (NO)

Mounting

Straight PC
