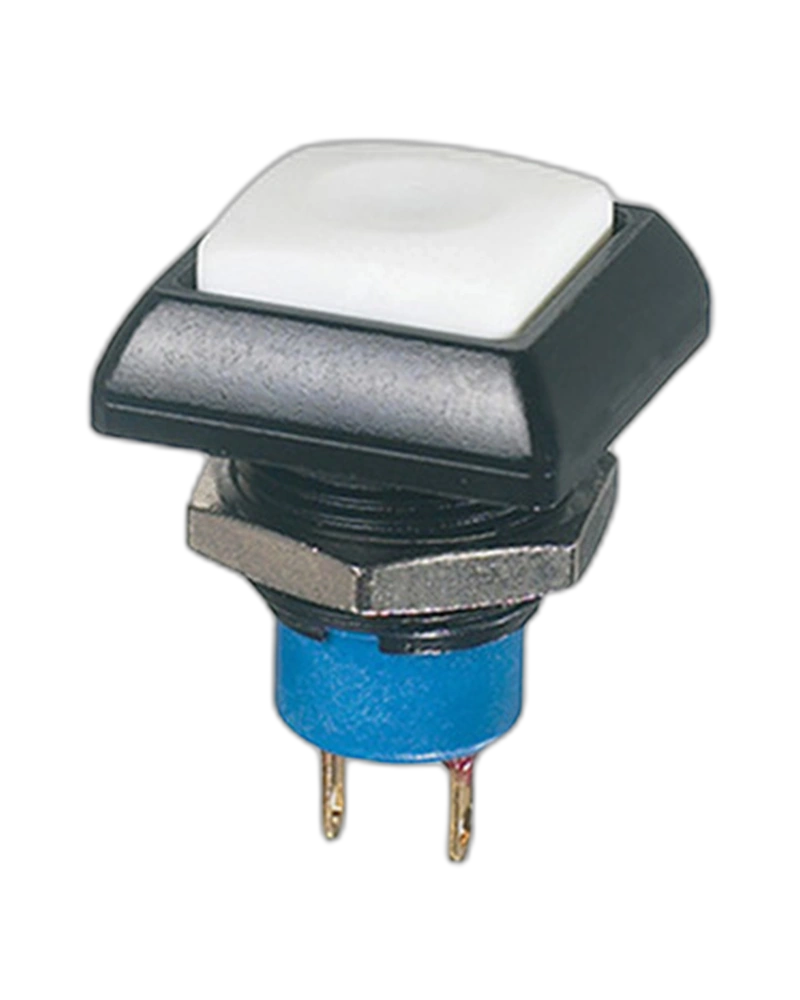

The APEM Panel Switches IPR5SAD9 is a Switches and Pushbutton with documented product-specific characteristics including sealing: IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f Robustness (non-illuminated) :; Operating temperature: -40°C to +85°C; Panel thickness: 1,5 mm (.059) min. 5,5 mm (.217) max..
The Panel Switches IPR5SAD9 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f Robustness (non-illuminated) |
| Operating temperature | -40°C to +85°C |
| Panel thickness | 1,5 mm (.059) min. 5,5 mm (.217) max. |
| Total travel | 2,5 mm (.098) +/- 0,3 mm Typical |
| operating force | 10 N Low level/mech. life : 200.000 cycles |
| Torque | 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Illuminated or non-illuminated Tactile feedback Wide variety of configurations Flat round actuator for optional marking Seale |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 4A 12VDC, 200.000 cycles1A 48VDC, 200.000 cycles2A 48VDC, 100.000 cycles3A 48VDC, 75.000 cycles1A 72VDC, 15.000 cycles |
| Electrical Functions | Combined (NC/NO). Non-illuminated |
The APEMPanel Switches IPR5SAD9 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f Robustness (non-illuminated) |
| Operating temperature | -40°C to +85°C |
| Panel thickness | 1,5 mm (.059) min. 5,5 mm (.217) max. |
| Total travel | 2,5 mm (.098) +/- 0,3 mm Typical |
| operating force | 10 N Low level/mech. life : 200.000 cycles |
| Torque | 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Illuminated or non-illuminated Tactile feedback Wide variety of configurations Flat round actuator for optional marking Seale |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 4A 12VDC, 200.000 cycles1A 48VDC, 200.000 cycles2A 48VDC, 100.000 cycles3A 48VDC, 75.000 cycles1A 72VDC, 15.000 cycles |
| Electrical Functions | Combined (NC/NO). Non-illuminated |
