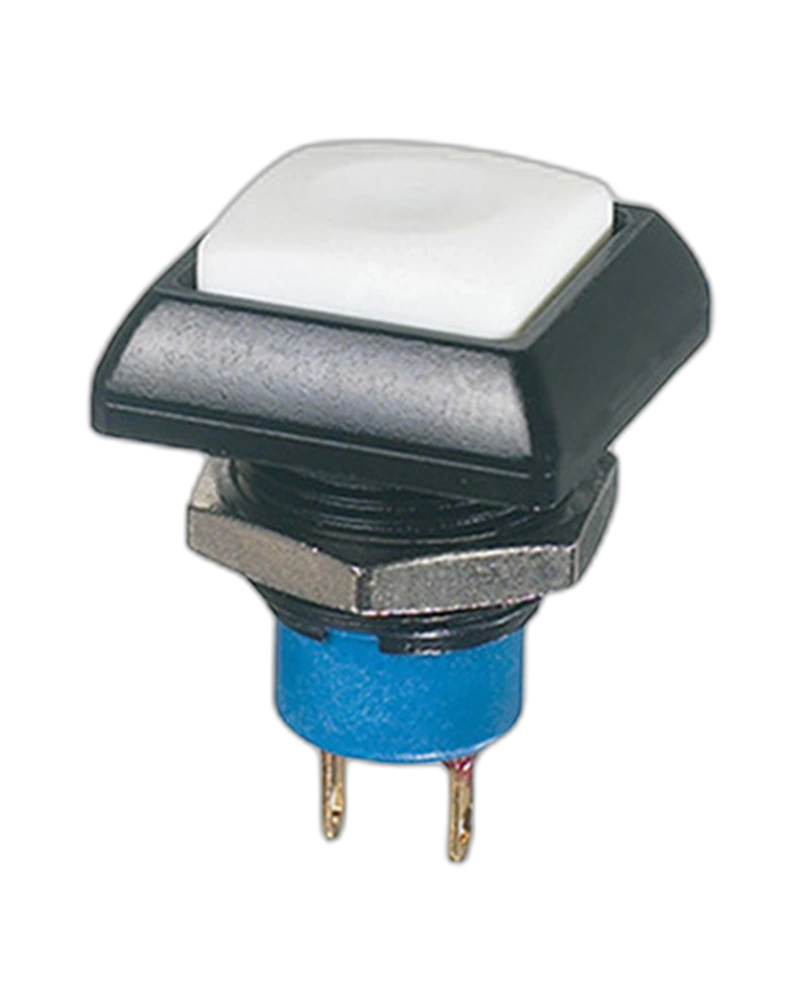

The APEM Panel Switches IPR3WAD2 is a Switches and Pushbutton with documented product-specific characteristics including sealing: IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f Robustness (non-illuminated) :; Operating temperature: -40°C to +85°C; Panel thickness: 1,5 mm (.059) min. 5,5 mm (.217) max..
| Feature | Specification |
|---|---|
| force | 10 N |
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f Robustness (non-illuminated) |
| Operating temperature | -40°C to +85°C |
| Panel thickness | 1,5 mm (.059) min. 5,5 mm (.217) max. |
| Total travel | 2,5 mm (.098) +/- 0,3 mm Typical |
| operating force | 10 N Low level/mech. life : 200.000 cycles |
| Torque | 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Illuminated or non-illuminated Tactile feedback Wide variety of configurations Flat round actuator for optional marking Seale |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 4A 12VDC, 200.000 cycles1A 48VDC, 200.000 cycles2A 48VDC, 100.000 cycles3A 48VDC, 75.000 cycles1A 72VDC, 15.000 cycles |
| Electrical Functions | Normally Open (NO) |
