Panel Switches IPR3FAD2L0W

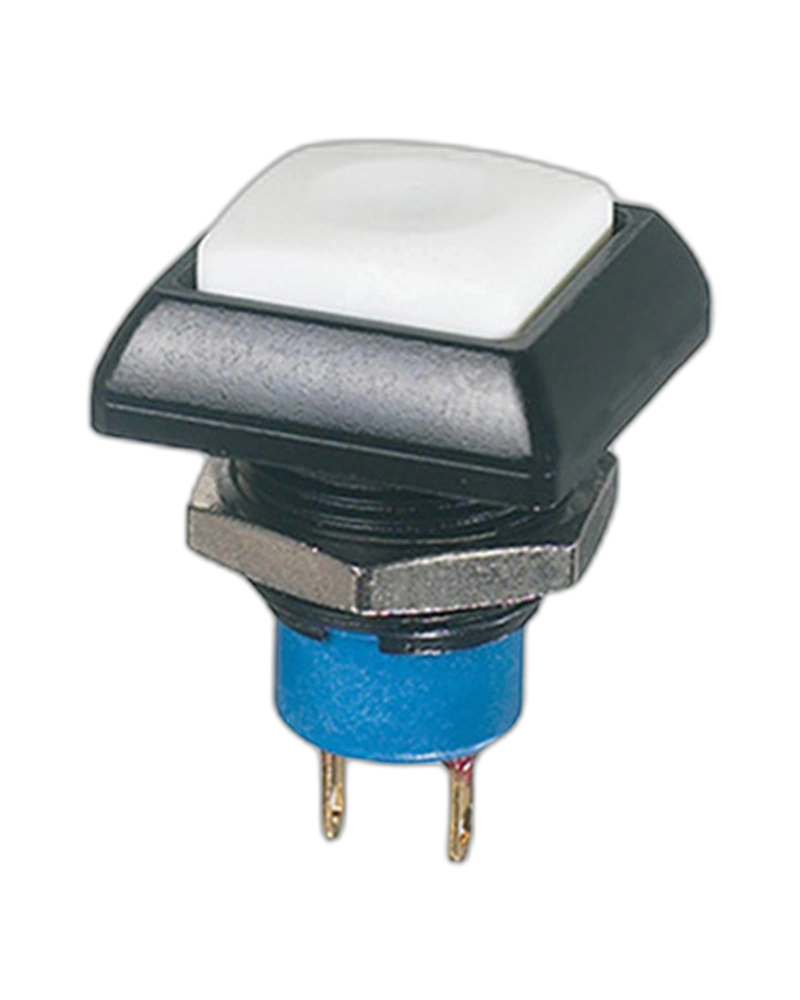

The APEM Panel Switches IPR3FAD2L0W is a Switches and Pushbutton with documented product-specific characteristics including Mounting: Flying Leads Standard Contact Materials: Silver (Gold-Plated); sealing: IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f Robustness (non-illuminated):; Operating temperature: -40°C to +85°C.

Key Features

• Mounting: Flying Leads Standard Contact Materials: Silver (Gold-Plated)
• sealing: IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f Robustness (non-illuminated):
• Operating temperature: -40°C to +85°C
• Panel thickness: 1,5 mm (.059) min. 5,5 mm (.217) max.
• Total travel: 2,5 mm (.098) +/- 0,3 mm Typical
• operating force: 10 N Low level/mech. life: 200.000 cycles
• Torque: 1,5 Nm max. applied to nut Soldering: 320°C max. for 3 sec. Soldering: 320°C max. for 3 sec. Illuminated or non-illuminated Tactile feedback Wide variety of configurations Flat round actuator for optional marking Seale
• Initial contact resistance: 100 mΩ max.
• Insulation resistance: 1 GΩ min. at 500VDC
• Dielectric strength: 1.500 Vrms between terminals - 1.000 Vrms between terminals and frame Front panel
• Max. current/voltage rating with resistive load: 4A 12VDC, 200.000 cycles1A 48VDC, 200.000 cycles2A 48VDC, 100.000 cycles3A 48VDC, 75.000 cycles1A 72VDC, 15.000 cycles
• Illuminated or non-illuminated Tactile feedback Wide variety of configurations Flat round actuator for optional marking Sealed to IP67 and IP69K
• Tactile feedback Wide variety of configurations Flat round actuator for optional marking Sealed to IP67 and IP69K
• Wide variety of configurations Flat round actuator for optional marking Sealed to IP67 and IP69K
• Flat round actuator for optional marking Sealed to IP67 and IP69K
• Sealed to IP67 and IP69K
• Datasheet 3D CAD Files Name Last Updated File Type File Size APEM_pushbutton_switches_IPMOM 16/08/2024
• LED Color: White,Actuator Colors:Black,Contact Materials:Silver (Gold-Plated)
• Electrical Functions: Normally Open (NO)
