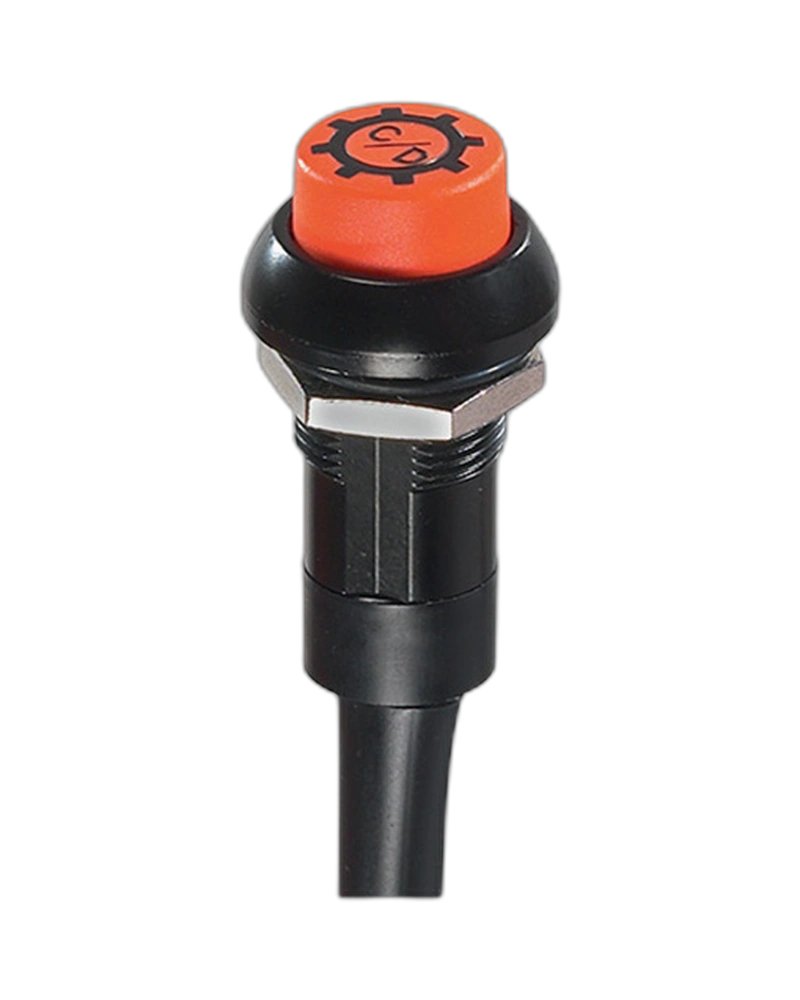

The APEM Panel Switches IPR1SADAL0Y100 is a Switches and Pushbutton with documented product-specific characteristics including Options: Satin Chrome Bezel; Panel thickness: 1,5 mm (.059) min., 4 mm (.157 max.); Total travel: Funct. 3: 1,7 mm (.067) +/- 0,3 mmFunct. 5: 1,3 mm (.051) +/- 0,3 mm Typical.
| Feature | Specification |
|---|---|
| Panel thickness | 1,5 mm (.059) min. , 4 mm (.157 max.) |
| Total travel | Funct. 3 : 1,7 mm (.067) +/- 0,3 mmFunct. 5 : 1,3 mm (.051) +/- 0,3 mm Typical |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Dielectric strength | 1.500 Vrms Contact bounce : 10 ms Contact bounce : 10 ms Front panel |
| operating force | 6N +/- 2N Low level/mech. life : 1.000.000 cycles |
| Electrical Functions | ON OFF |
| Mounting | Solder Lug Contact Materials: Silver (Gold-Plated) |
