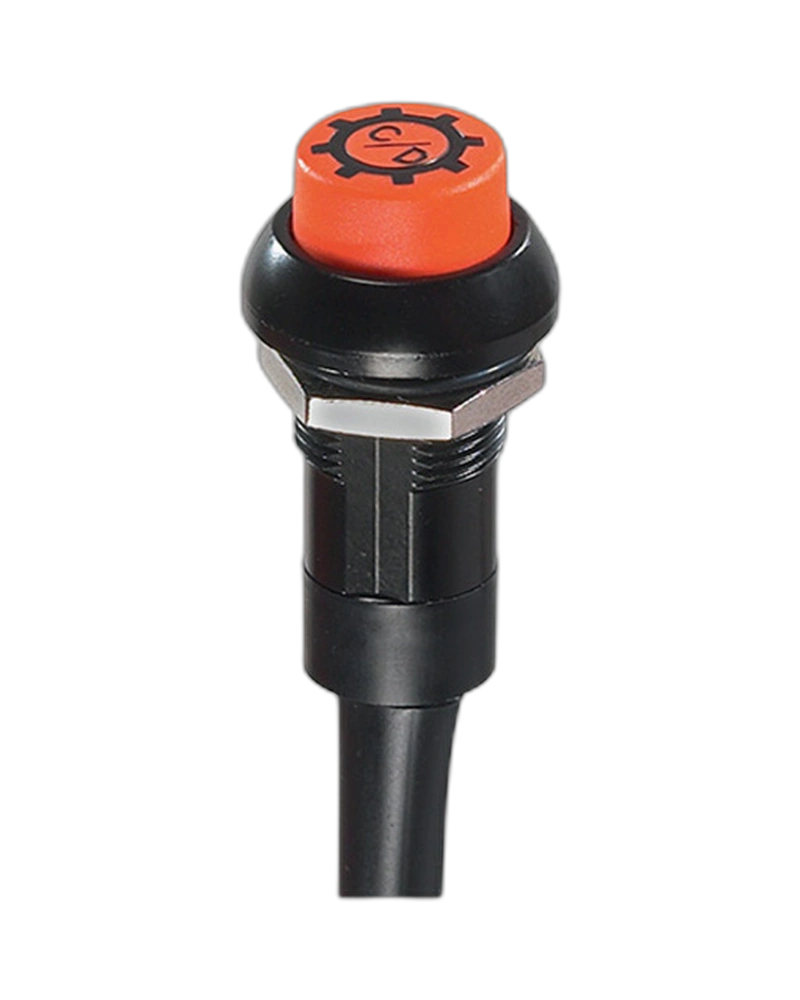

The APEM Panel Switches IPR1SAD2100 is a Switches and Pushbutton with documented product-specific characteristics including sealing: IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d; Operating temperature: -40°C to +85°C; Panel thickness: 1,5 mm (.059) min. , 4 mm (.157 max.).
The Panel Switches IPR1SAD2100 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d |
| Operating temperature | -40°C to +85°C |
| Panel thickness | 1,5 mm (.059) min. , 4 mm (.157 max.) |
| Total travel | Funct. 3 : 1,7 mm (.067) +/- 0,3 mmFunct. 5 : 1,3 mm (.051) +/- 0,3 mm Typical |
| Torque | 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Dielectric strength | 1.500 Vrms Contact bounce : 10 ms Contact bounce : 10 ms Front panel |
| operating force | 6N +/- 2N Low level/mech. life : 1.000.000 cycles |
| Electrical Functions | ON OFF |
The APEMPanel Switches IPR1SAD2100 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d |
| Operating temperature | -40°C to +85°C |
| Panel thickness | 1,5 mm (.059) min. , 4 mm (.157 max.) |
| Total travel | Funct. 3 : 1,7 mm (.067) +/- 0,3 mmFunct. 5 : 1,3 mm (.051) +/- 0,3 mm Typical |
| Torque | 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Dielectric strength | 1.500 Vrms Contact bounce : 10 ms Contact bounce : 10 ms Front panel |
| operating force | 6N +/- 2N Low level/mech. life : 1.000.000 cycles |
| Electrical Functions | ON OFF |
