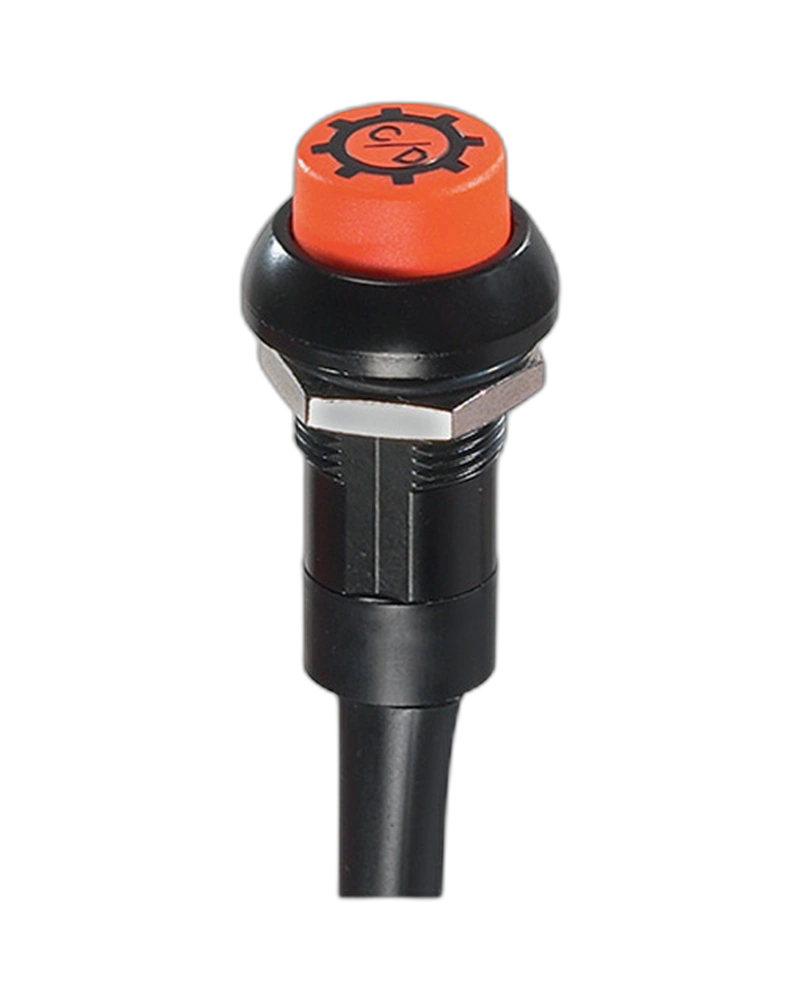

IPR1SAD2UL Versatile IPR1SAD2UL Panel Switch features a stylish round actuator, smooth ON/OFF operation, and durable gold-plated contacts for reliable performance in industrial applications. Select Quantity
| Feature | Specification |
|---|---|
| force | 6N |
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d |
| Operating temperature | -40°C to +85°C |
| Panel thickness | 1,5 mm (.059) min. , 4 mm (.157 max.) |
| Total travel | Funct. 3 : 1,7 mm (.067) +/- 0,3 mmFunct. 5 : 1,3 mm (.051) +/- 0,3 mm Typical |
| Torque | 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Dielectric strength | 1.500 Vrms Contact bounce : 10 ms Contact bounce : 10 ms Front panel |
| operating force | 6N +/- 2N Low level/mech. life : 1.000.000 cycles |
| Electrical Functions | ON OFF |
| Mounting | Solder Lug |
