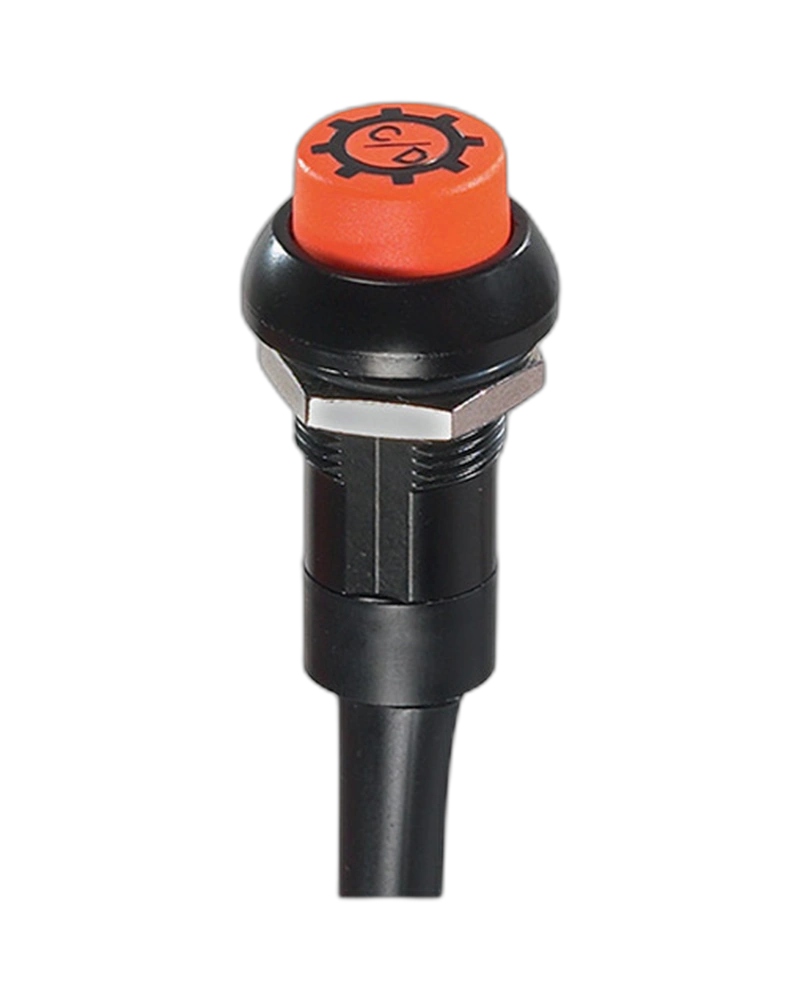

The APEM Panel Switches IPP1SAD1 is a Switches and Pushbutton with documented product-specific characteristics including Panel thickness: 1,5 mm (.059) min. 5,5 mm (.217) max.; Total travel: Funct. 3 : 1,7 mm (.067) +/- 0,3 mmFunct. 5 : 1,3 mm (.051) +/- 0,3 mm Typical; operating force: 10 N Low level/mech. life : 200.000 cycles.
The Panel Switches IPP1SAD1 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Panel thickness | 1,5 mm (.059) min. 5,5 mm (.217) max. |
| Total travel | Funct. 3 : 1,7 mm (.067) +/- 0,3 mmFunct. 5 : 1,3 mm (.051) +/- 0,3 mm Typical |
| operating force | 10 N Low level/mech. life : 200.000 cycles |
| Torque | 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or |
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d |
| Operating temperature | -40°C to +85°C Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 4A 12VDC, 200.000 cycles 1A 48VDC, 200.000 cycles 2A 48VDC, 100.000 cycles 3A 48VDC, 75.000 cycles 1A 72VDC, 15.000 cycles |
| Electrical Functions | ON OFF |
The APEMPanel Switches IPP1SAD1 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Panel thickness | 1,5 mm (.059) min. 5,5 mm (.217) max. |
| Total travel | Funct. 3 : 1,7 mm (.067) +/- 0,3 mmFunct. 5 : 1,3 mm (.051) +/- 0,3 mm Typical |
| operating force | 10 N Low level/mech. life : 200.000 cycles |
| Torque | 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or |
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d |
| Operating temperature | -40°C to +85°C Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 4A 12VDC, 200.000 cycles 1A 48VDC, 200.000 cycles 2A 48VDC, 100.000 cycles 3A 48VDC, 75.000 cycles 1A 72VDC, 15.000 cycles |
| Electrical Functions | ON OFF |
