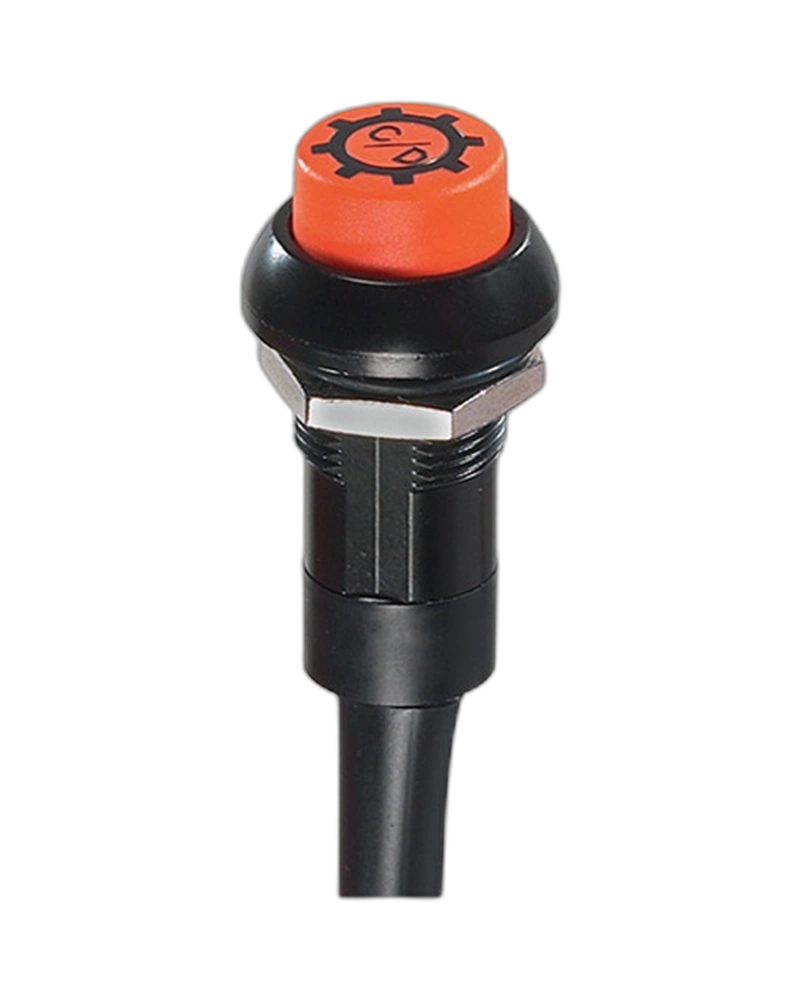

Panel Switches IPP1FAD2

The APEM Panel Switches IPP1FAD2 is a Switches and Pushbutton with documented product-specific characteristics including sealing: IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d; Operating temperature: -40°C to +85°C (-40°F to 185°F) Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Compact Flat round actuator for optional marki; Panel thickness: 1.5 mm (.059) min. 5.5 mm (.217) max..

Product Overview

IPP1FAD2L0G Select Quantity

Key Features

• sealing: IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d
• Operating temperature: -40°C to +85°C (-40°F to 185°F) Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Compact Flat round actuator for optional marki
• Panel thickness: 1.5 mm (.059) min. 5.5 mm (.217) max.
• Total travel: 2.5 mm (.098) +/- 0.3 mm Typical
• Torque: 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or
• operating force: 10 N Low level/mechanical life : 200,000 cycles
• Dielectric strength: 1.500 Vrms between terminals - 1.000 Vrms between terminals and frame Front panel
• Case: thermoplastic, UL 94-V0
• Max. current/voltage rating with resistive load: 4A 12VDC, 200,000 cycles 1A 48VDC, 200,000 cycles 2A 48VDC, 100,000 cycles 3A 48VDC, 75,000 cycles 1A 72VDC, 15,000 cycles
• Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67
• Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67
• Compact Flat round actuator for optional marking Sealed to IP67
• Flat round actuator for optional marking Sealed to IP67
• Sealed to IP67
• Electrical Functions: ON OFF

Technical Specifications
