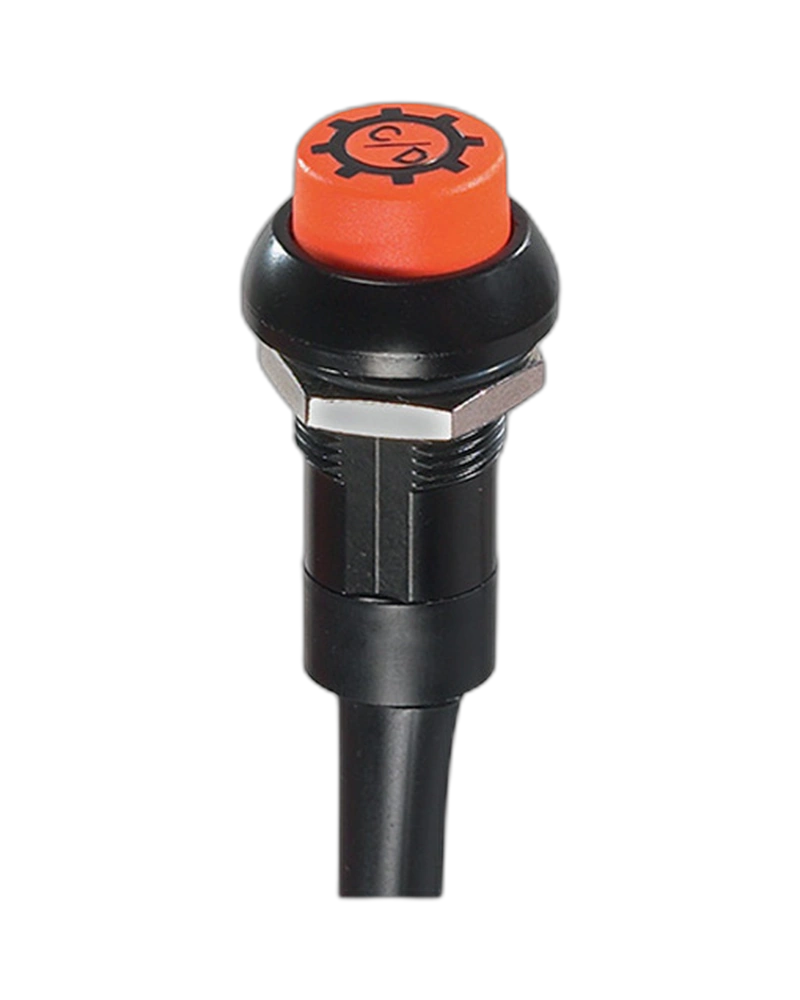

Panel Switches IP - latching

The APEM Panel Switches IP - latching is a Switches and Pushbutton with documented product-specific characteristics including sealing: IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d; Operating temperature: -40°C to +85°C Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67; Panel thickness: 1,5 mm (.059) min. , 4 mm (.157 max.).

Product Overview

IP - latching IPP1SAD1L0Y Select Quantity

Key Features

• sealing: IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d
• Operating temperature: -40°C to +85°C Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67
• Panel thickness: 1,5 mm (.059) min. , 4 mm (.157 max.)
• Total travel: Funct. 3 : 1,7 mm (.067) +/- 0,3 mmFunct. 5 : 1,3 mm (.051) +/- 0,3 mm Typical
• operating force: 10 N Low level/mech. life : 200.000 cycles
• Torque: 1,5 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67 Illuminated or
• Initial contact resistance: 100 mΩ max.
• Insulation resistance: 1 GΩ min. at 500VDC
• Dielectric strength: 1.500 Vrms between terminals - 1.000 Vrms between terminals and frame Front panel
• Case: thermoplastic, UL 94-V0
• Max. current/voltage rating with resistive load: 4A 12VDC, 200.000 cycles 1A 48VDC, 200.000 cycles 2A 48VDC, 100.000 cycles 3A 48VDC, 75.000 cycles 1A 72VDC, 15.000 cycles
• Latching action Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67
• Illuminated or non-illuminated Compact Flat round actuator for optional marking Sealed to IP67
• Compact Flat round actuator for optional marking Sealed to IP67
• Flat round actuator for optional marking Sealed to IP67
• Sealed to IP67
• Datasheet 3D CAD Files Name Last Updated File Type File Size pusbutton_switches_serie_IP_latch 16/08/2024
• Electrical Functions: ON OFF
• Compact: behind-panel depth less than 20 mm (.787)
• Latching action: actuator remains in the low position when ON
• Illuminated and non-illuminated
• Flat round actuator for optional marking
• High brightness illumination
• Four LED colors

Technical Specifications
