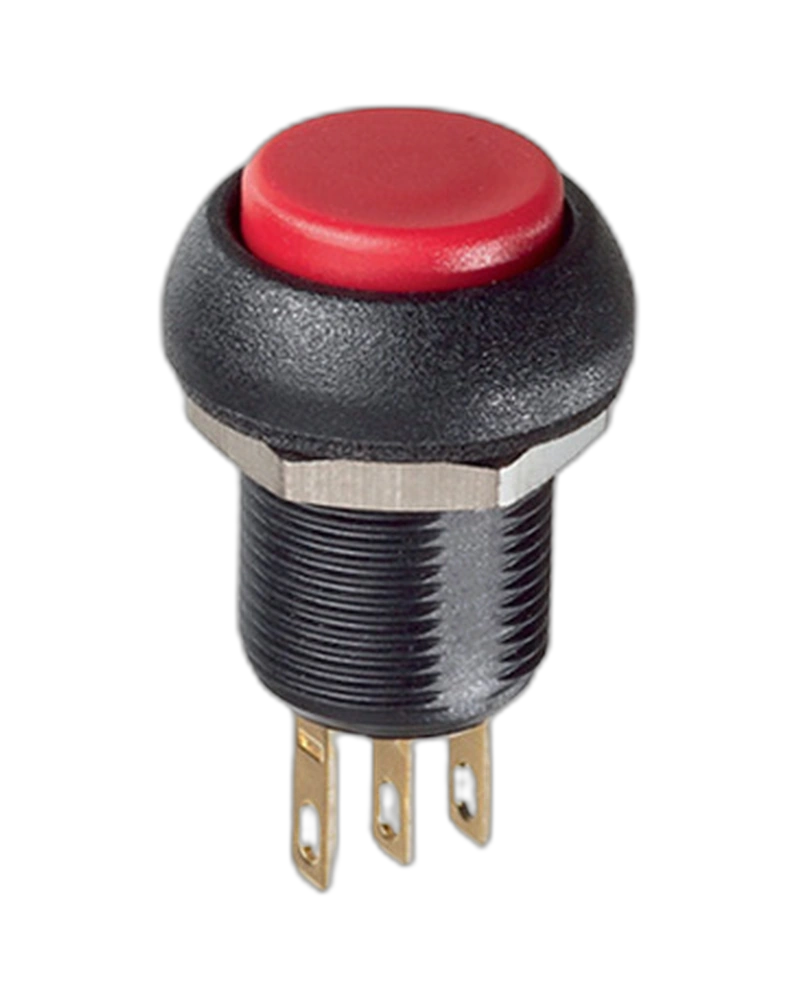

IMP7Z452104 Sleek round flat design, versatile pushbutton switch for electronics projects. Available in momentary or latching actions to suit your needs. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 50 g - 11 ms according to IEC 68-2-27 Salt spray: IEC 512-6, test 11f |
| Storage temperature | -40 °C to +8 5°C (-40 °F to 185 °F) Shock resistance: 50 g - 11 ms according to IEC 68-2-27 Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1.5 mm (.059) to 10 mm (.394) |
| Total travel | 1.7 mm (.067) +/- 0.3 mm Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 - 1.5 Nm max. with plastic nut U4248 Low level or mechanical life: 1,000,000 cycles Torque (a |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Max. current/voltage rating with resistive load | 3 A 28 VDC |
| Electrical Functions | NC/NO |
