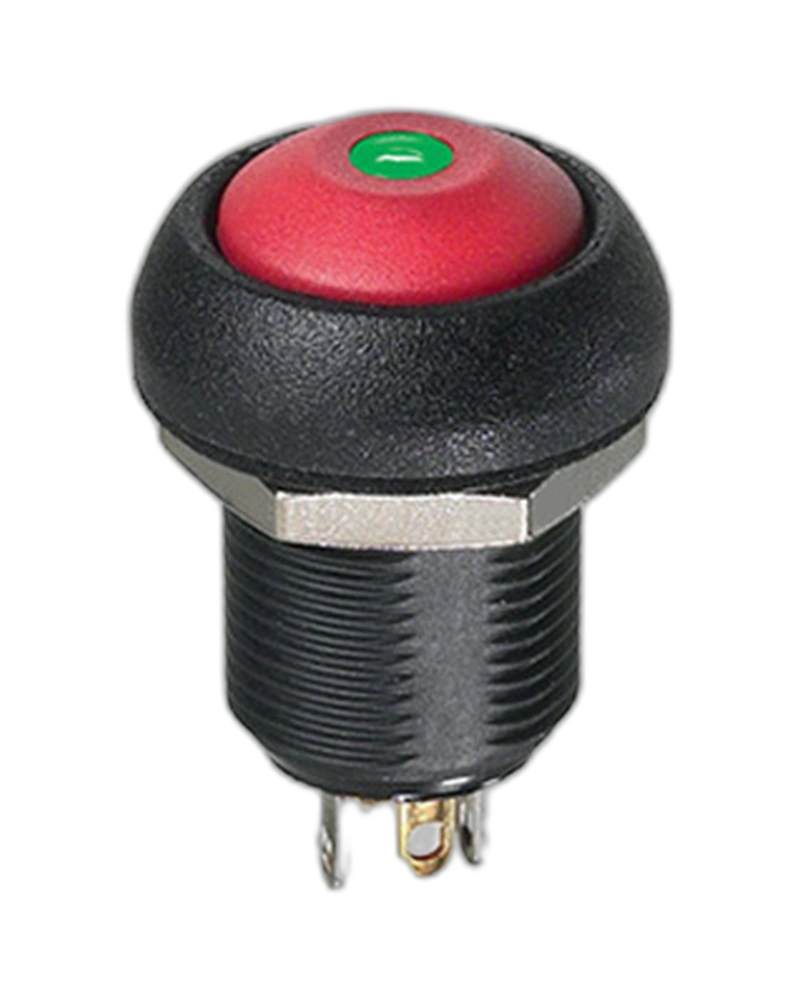

The APEM Panel Switches ILP3PAD2L0G is a robust, high-reliability autoswitch designed for demanding industrial environments. Featuring IP67 sealing, 1,000,000 cycle life, and 24 VDC 2 A ratings with resistive loads, this switch ensures reliable operation across extreme temperatures (-40°C to +85°C) and harsh conditions.
The APEM Panel Switches ILP3PAD2L0G is a high-performance, sealed autoswitch engineered for critical industrial applications where durability and precision are paramount. With an IP67 rating for complete protection against dust and water immersion, this switch delivers exceptional reliability in challenging environments. Its robust construction, featuring gold-plated silver contacts and a 1.7 mm travel distance, ensures consistent performance under extreme conditions, including temperature ranges from -40°C to +85°C. The switch supports 1,000,000 mechanical cycles and operates within a 24 VDC 2 A current rating for resistive loads, making it ideal for applications requiring long-term, uninterrupted operation in harsh industrial settings.
Engineered to withstand extreme environmental conditions, the ILP3PAD2L0G features IP67 sealing for complete dust and water resistance (standard models). It meets stringent shock resistance (100 g per IEC 512-4, test 6c) and vibration resistance (10-500 Hz at 10 g per IEC 512-4, test 6d) standards, ensuring reliable performance in harsh industrial settings. The switch operates across a wide temperature range (-40°C to +85°C), making it suitable for both cold and hot environments.
The switch delivers precise electrical performance with a maximum initial contact resistance of 50 mΩ and a 24 VDC 2 A current rating for resistive loads (200,000 cycles). Its gold-plated silver contacts ensure low resistance and long-term stability, while the 1.7 mm total travel distance with ±0.3 mm tolerance provides consistent actuation without wear.
With a mechanical life of 1,000,000 cycles and a 2 N operating force, the ILP3PAD2L0G is designed for high-reliability applications. The switch includes a tactile feedback mechanism for precise actuation and supports both momentary and latching operations, ensuring reliable performance even under repeated use.
The switch features a 1.50 mm minimum panel thickness (up to 10 mm) with a flat round actuator for optional marking. Its sealed construction (IP67 for standard models) protects against dust and water immersion, while the gold-plated silver contacts ensure long-term electrical integrity and resistance to corrosion.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Front panel sealing according to IEC 60529: IP67 (standard models) IP54 (options X1242 and 234) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 5 |
| Operating temperature | -40 °C to +85 °C (-40°F to 185°F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1.50 mm (.059) min. 10 mm (.393) max. |
| Total travel | 1.7 mm (.067) +/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 2 A 24 VDC, 200,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Mounting | Straight PC |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches ILP3PAD2L0G is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Front panel sealing according to IEC 60529: IP67 (standard models) IP54 (options X1242 and 234) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 5 |
| Operating temperature | -40 °C to +85 °C (-40°F to 185°F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1.50 mm (.059) min. 10 mm (.393) max. |
| Total travel | 1.7 mm (.067) +/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 2 A 24 VDC, 200,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Mounting | Straight PC |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
