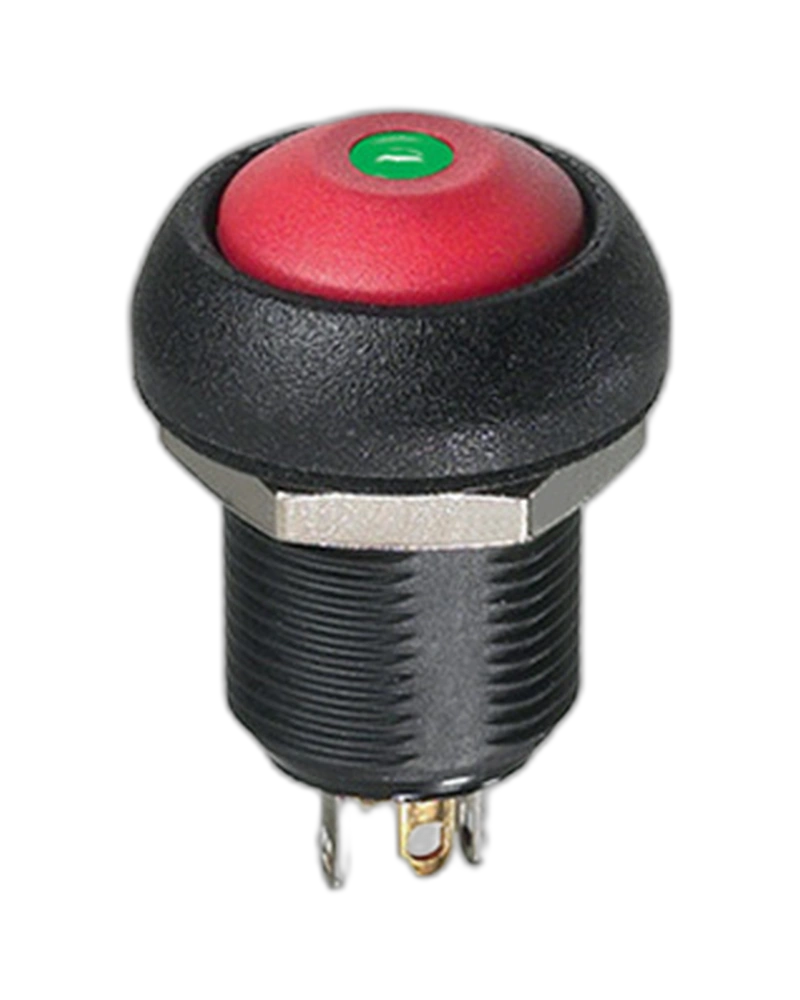

The APEM Panel Switches ILP3FAD5234 is a robust, high-reliability autoswitch designed for demanding industrial environments. Featuring IP67 sealing, 1,000,000 cycle life, and 2 A 24 VDC ratings, this momentary pushbutton switch ensures reliable operation in extreme conditions from -40°C to +85°C. Ideal for applications requiring high durability and environmental resilience.
The APEM Panel Switches ILP3FAD5234 is a high-performance, momentary pushbutton switch engineered for industrial applications where reliability and environmental resilience are critical. With a robust IP67 rating for dust and water resistance, this switch delivers exceptional durability in harsh conditions, including extreme temperatures ranging from -40°C to +85°C. Its 1,000,000 cycle life ensures long-term functionality, while the 2 A 24 VDC rating with 200,000 cycles supports demanding electrical loads. The switch features tactile feedback, a flat round actuator for optional marking, and is designed to withstand shock and vibration, making it suitable for use in challenging industrial settings.
Engineered for extreme conditions, the ILP3FAD5234 operates reliably across a wide temperature range (-40°C to +85°C) and withstands harsh environmental factors. Its IP67 sealing (standard models) provides protection against dust and immersion in water up to 1 meter, while shock resistance (100 g, IEC 512-4, test 6c) and vibration resistance (10-500 Hz, 10 g, IEC 5) ensure robust performance in industrial settings.
The switch supports a maximum current of 2 A at 24 VDC with a resistive load, delivering 200,000 cycles. Initial contact resistance is 50 mΩ max, ensuring minimal voltage drop and reliable connections. The switch is designed for momentary operation with a typical total travel of 1.7 mm (±0.3 mm), providing precise actuation without excessive force (2 N).
With a mechanical life of 1,000,000 cycles, the ILP3FAD5234 is built to endure repeated use in demanding applications. The switch features a flat round actuator for tactile feedback and optional marking, while its robust construction withstands shock and vibration testing to IEC standards. The panel thickness ranges from 1.50 mm to 10 mm, accommodating various installation requirements.
This switch is ideal for industrial control panels, machinery, and equipment requiring high reliability in harsh environments. Its IP67 rating makes it suitable for outdoor installations, marine applications, and areas with high dust or moisture exposure. The momentary pushbutton design allows for quick, precise control without the need for continuous activation.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Front panel sealing according to IEC 60529: IP67 (standard models) IP54 (options X1242 and 234) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 5 |
| Operating temperature | -40 °C to +85 °C (-40°F to 185°F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1.50 mm (.059) min. 10 mm (.393) max. |
| Total travel | 1.7 mm (.067) +/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 2 A 24 VDC, 200,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches ILP3FAD5234 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Front panel sealing according to IEC 60529: IP67 (standard models) IP54 (options X1242 and 234) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 5 |
| Operating temperature | -40 °C to +85 °C (-40°F to 185°F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1.50 mm (.059) min. 10 mm (.393) max. |
| Total travel | 1.7 mm (.067) +/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 2 A 24 VDC, 200,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
