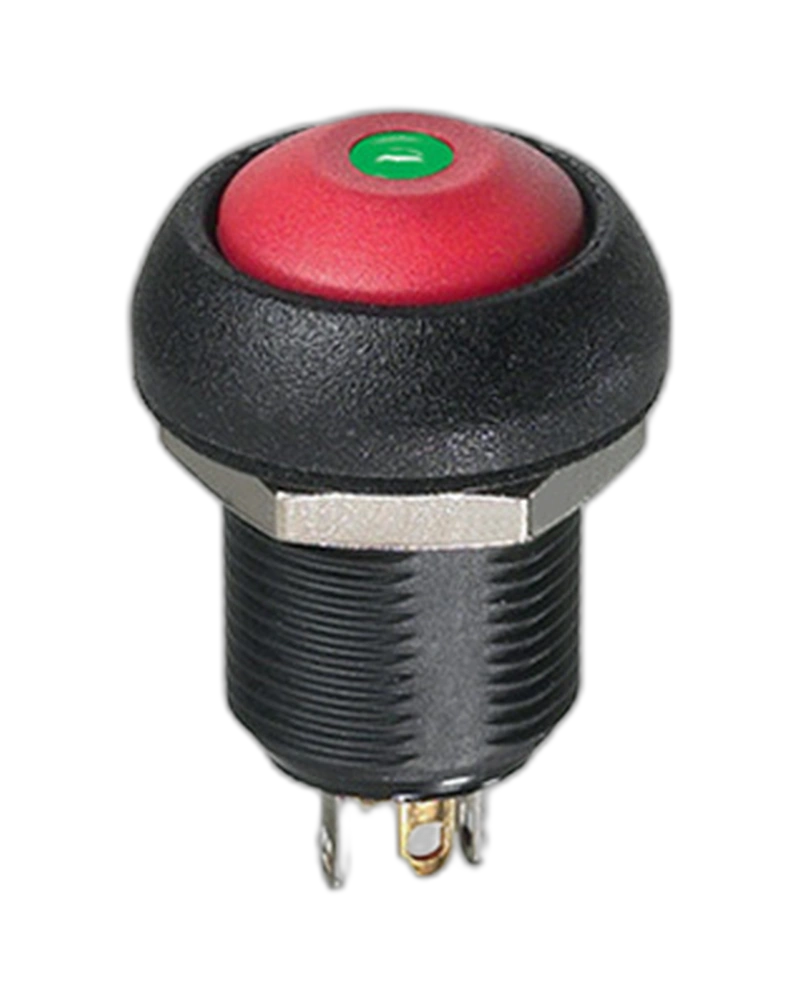

The APEM Panel Switches ILP3FAD2L0Y is a robust autoswitch designed for industrial applications. With an IP67 sealing rating, 1 GΩ insulation resistance at 500 VDC, and operation across -40°C to +85°C temperatures, this switch ensures reliable performance in demanding environments. Ideal for controlling lighting and other critical systems where durability and precision are essential.
The APEM Panel Switches ILP3FAD2L0Y is a high-reliability autoswitch engineered for industrial use, featuring an IP67 rating to protect against dust and water immersion. This switch delivers exceptional electrical safety with a minimum insulation resistance of 1 GΩ at 500 VDC and withstands dielectric strength up to 1,000 Vrms. Its wide operating temperature range of -40°C to +85°C (-40°F to 185°F) ensures consistent performance in extreme conditions, while the compact 1.50 mm panel thickness (minimum) and 1.7 mm total travel (typical) make it suitable for space-constrained installations. The switch also provides low contact resistance (50 mΩ max) and requires only 4 N force for operation, making it ideal for precise control applications such as lighting systems.
The ILP3FAD2L0Y delivers robust electrical characteristics including a minimum insulation resistance of 1 GΩ at 500 VDC, ensuring safe operation under high-voltage conditions. Its dielectric strength of 1,000 Vrms allows it to withstand transient voltage spikes without failure. The switch also maintains low contact resistance (50 mΩ max) during operation, minimizing power loss and heat generation in electrical circuits.
Engineered for extreme environments, this switch operates within a temperature range of -40°C to +85°C (-40°F to 185°F), making it suitable for both cold and hot industrial settings. The IP67 rating provides protection against dust ingress and immersion in water up to 1 meter depth, ensuring reliable performance in harsh conditions without maintenance.
With a panel thickness of 1.50 mm (minimum) to 10 mm (maximum), the switch balances structural integrity with space efficiency. The total travel of 1.7 mm (±0.3 mm typical) ensures precise actuation, while the 4 N operating force requirement allows for smooth and consistent activation without excessive mechanical stress.
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Operating temperature | -40 °C to +85 °C (-40°F to 185°F) |
| Panel thickness | 1.50 mm (.059) min. 10 mm (.393) max. |
| Total travel | 1.7 mm (.067) +/- 0.3 mm Typical |
| connection | to other components. Whether you need to control lighting |
The APEMPanel Switches ILP3FAD2L0Y is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Operating temperature | -40 °C to +85 °C (-40°F to 185°F) |
| Panel thickness | 1.50 mm (.059) min. 10 mm (.393) max. |
| Total travel | 1.7 mm (.067) +/- 0.3 mm Typical |
| connection | to other components. Whether you need to control lighting |
