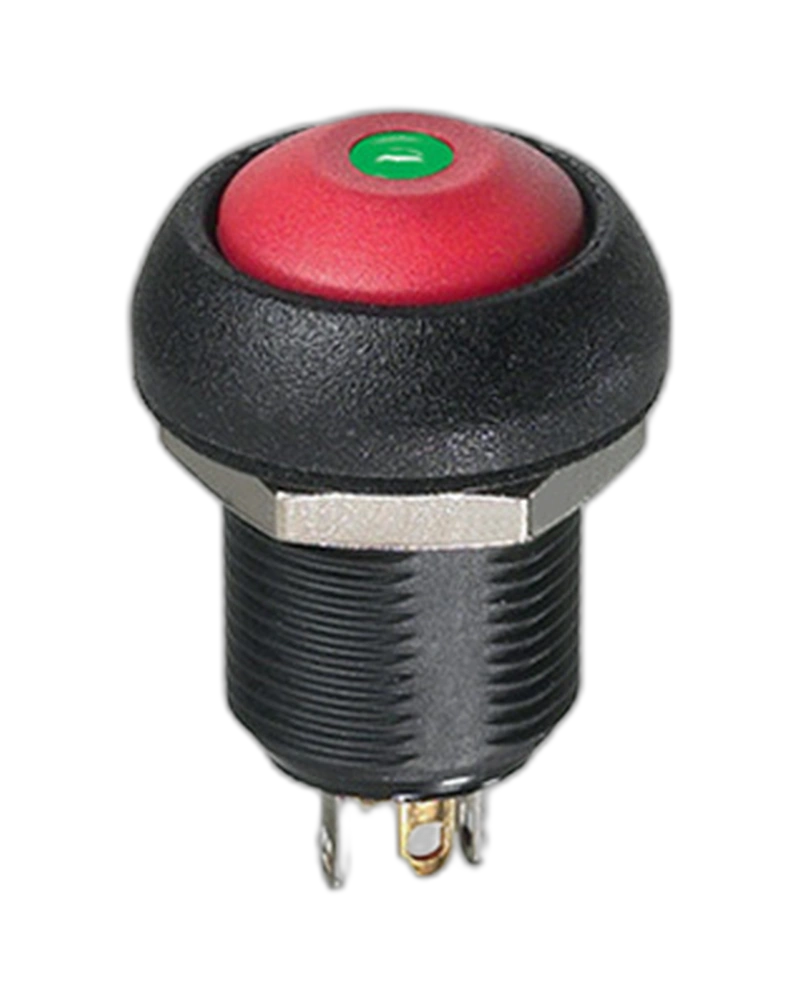

The ILP3FAD2L0B Panel Switch features a sleek round flat actuator, normally open configuration for reliable switching, and gold-plated silver contacts for optimal conductivity and durability. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| force | 4 N |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Front panel sealing according to IEC 60529: IP67 (standard models) IP54 (options X1242 and 234) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 5 |
| Operating temperature | -40 °C to +85 °C (-40°F to 185°F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1.50 mm (.059) min. 10 mm (.393) max. |
| Total travel | 1.7 mm (.067) +/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 2 A 24 VDC, 200,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
