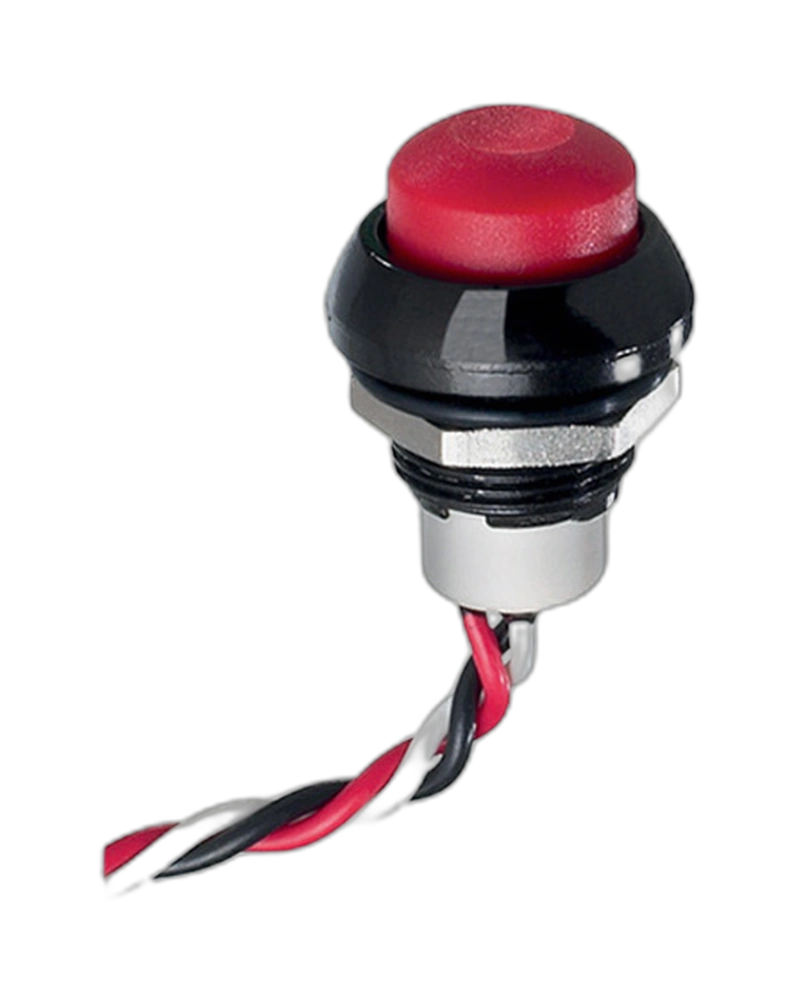

The APEM Panel Switches IHSR36F9 is a robust momentary pushbutton switch designed for industrial applications. With an operating force of 6 N ± 2 N, 5 million cycle life, and IP67 sealing, it ensures reliable performance in harsh environments. This NPN output switch operates from 3.5 VDC to 24 VDC and delivers up to 50 mA current.
The APEM Panel Switches IHSR36F9 is a high-reliability momentary pushbutton switch engineered for demanding industrial environments. Featuring an IP67 rating for dust and water resistance, this switch operates within a temperature range of -40°C to +85°C, making it suitable for extreme conditions. With a mechanical life of 5 million cycles and an operating force of 6 N ± 2 N, it provides consistent performance while maintaining low behind-panel depth for easy installation. The switch delivers a maximum output current of 50 mA and operates at 24 VDC with NPN output characteristics, ensuring compatibility with a wide range of industrial control systems.
The IHSR36F9 operates within a supply voltage range of 3.5 VDC to 24 VDC, with a typical current consumption of 2.5 mA to 5 mA in the OFF position at 12 VDC. It delivers a maximum output current of 50 mA and operates at a maximum output voltage of 24 VDC with NPN output characteristics.
Engineered for extreme conditions, the switch maintains reliable operation across a temperature range of -40°C to +85°C (-40°F to 185°F). Its IP67 rating ensures protection against dust and water immersion, making it ideal for industrial settings where environmental exposure is a concern.
With a panel thickness ranging from 1.5 mm to 4 mm, the switch offers flexibility in installation while maintaining structural integrity. The total travel is 1.80 mm ± 0.3 mm, and the maximum torque applied to the nut is 1.5 Nm. The momentary pushbutton design ensures precise actuation with a mechanical life of 5 million cycles.
The IHSR36F9 provides both standard and high actuator options, catering to different user requirements. Its low behind-panel depth design minimizes space requirements, while the IP67 sealing ensures long-term durability in challenging environments.
| Feature | Specification |
|---|---|
| operating force | 6 N +/- 2 N Mechanical life: 5 million cycles |
| Supply voltage | 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ. |
| sealing | IP67 according to IEC 60529 |
| Panel thickness | 1.5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.80 mm (.070) +/- 0.3 mm Typical |
| Torque | 1.5 Nm max. applied to nut Momentary pushbutton (NO)5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 Low behind-panel depth Standard and high actuator Sealed to IP67 Standard and high act |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
The APEMPanel Switches IHSR36F9 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| operating force | 6 N +/- 2 N Mechanical life: 5 million cycles |
| Supply voltage | 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ. |
| sealing | IP67 according to IEC 60529 |
| Panel thickness | 1.5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.80 mm (.070) +/- 0.3 mm Typical |
| Torque | 1.5 Nm max. applied to nut Momentary pushbutton (NO)5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 Low behind-panel depth Standard and high actuator Sealed to IP67 Standard and high act |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
