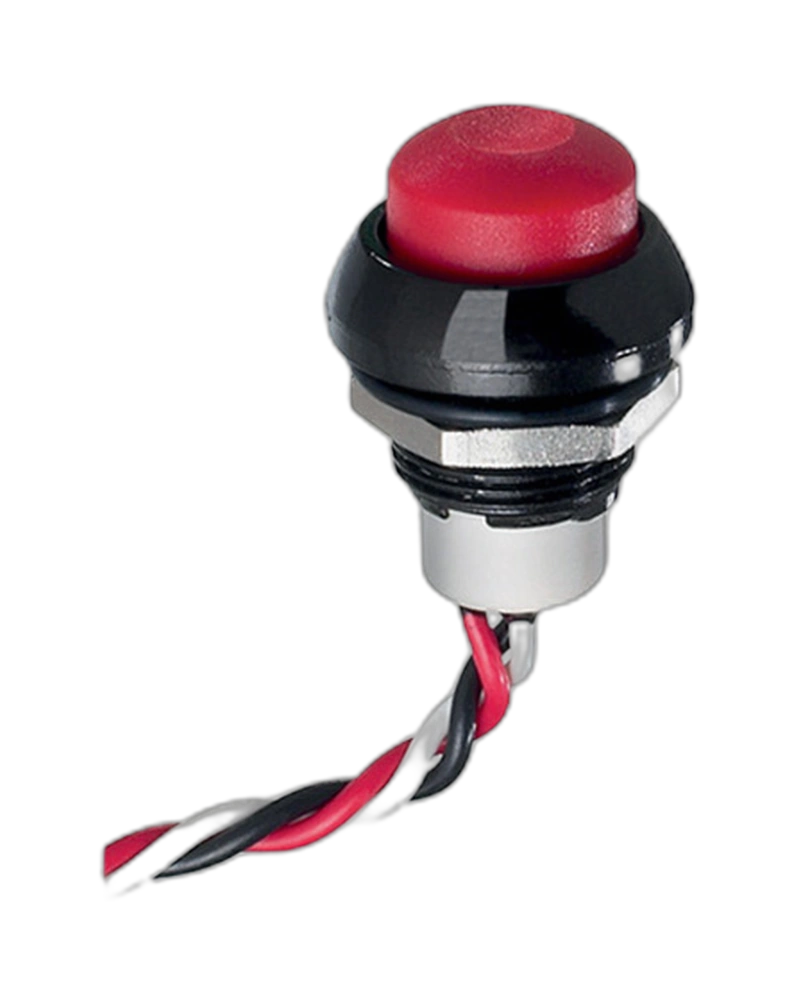

The APEM Panel Switches IHSR36F3 is a robust, sealed momentary pushbutton switch designed for industrial applications. With an IP67 rating, 5 million cycle life, and NPN output, it operates reliably across -40°C to +85°C temperatures. Ideal for demanding environments requiring low behind-panel depth and high actuator options.
The APEM Panel Switches IHSR36F3 is a high-reliability momentary pushbutton switch engineered for industrial automation systems. This NPN output switch delivers precise control with a sealed IP67 rating, ensuring protection against dust and water ingress in harsh environments. Its low behind-panel depth design minimizes space requirements while maintaining a mechanical life of 5 million cycles. The switch operates within a wide temperature range of -40°C to +85°C and supports 24 VDC output with a maximum current of 50 mA, making it suitable for applications requiring robust, long-term performance in demanding industrial settings.
The IHSR36F3 operates within a supply voltage range of 3.5 VDC to 24 VDC. At 12 VDC, it consumes 2.5 mA typical to 5 mA maximum current in the OFF position. The switch provides an NPN output with a maximum output current of 50 mA and maximum output voltage of 24 VDC.
Engineered for extreme conditions, the IHSR36F3 operates across a temperature range of -40°C to +85°C (-40°F to 185°F). Its IP67 rating ensures protection against dust and water immersion, making it ideal for industrial environments with high exposure to contaminants.
The switch features a total travel of 1.80 mm (±0.3 mm typical) and a maximum operating torque of 1.5 Nm. It requires an operating force of 6 N ± 2 N for consistent actuation, with a mechanical life of 5 million cycles for reliable long-term use.
With a panel thickness range of 1.5 mm (min.) to 4 mm (max.), the IHSR36F3 offers low behind-panel depth for space-constrained installations. Standard and high actuator options provide flexibility in application design while maintaining the IP67 sealed construction.
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529 |
| Supply voltage | 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ. |
| Torque | 1.5 Nm max. applied to nut Momentary pushbutton (NO) 5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 Low |
| operating force | 6 N +/- 2 N Mechanical life: 5 million cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| Panel thickness | 1.5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.80 mm (.070) +/- 0.3 mm Typical |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
The APEMPanel Switches IHSR36F3 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529 |
| Supply voltage | 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ. |
| Torque | 1.5 Nm max. applied to nut Momentary pushbutton (NO) 5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 Low |
| operating force | 6 N +/- 2 N Mechanical life: 5 million cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| Panel thickness | 1.5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.80 mm (.070) +/- 0.3 mm Typical |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
