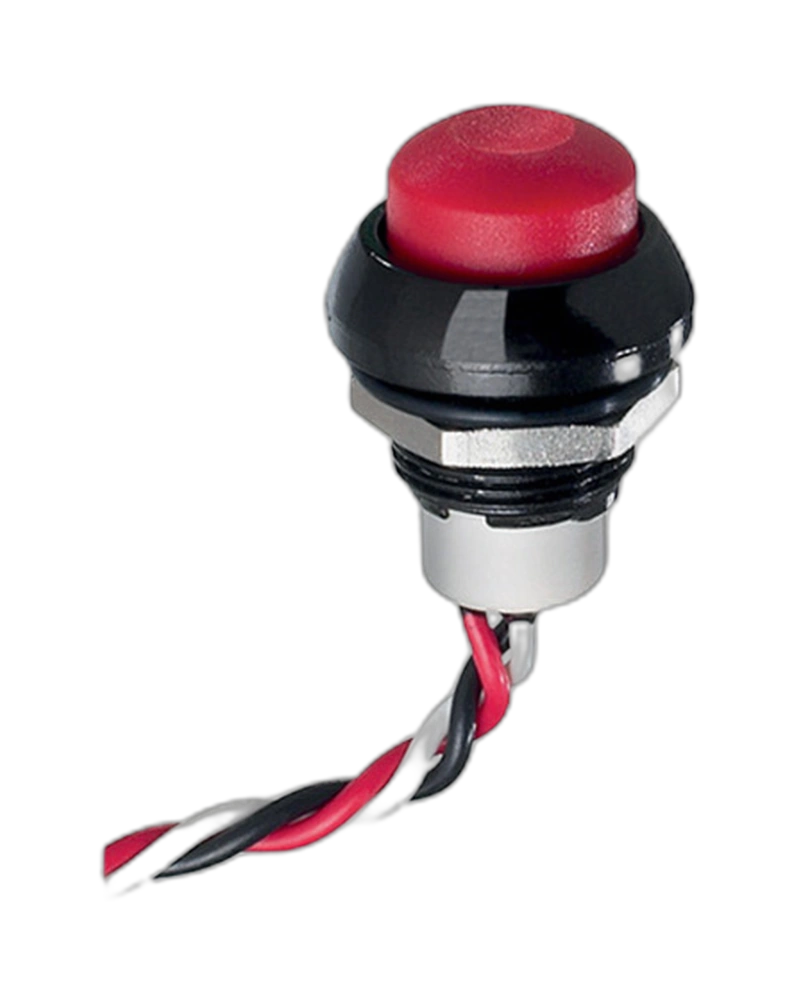

The APEM Panel Switches IHSR36F2101 is a robust, sealed momentary pushbutton switch designed for industrial applications. With an operating force of 6 N ± 2 N, 5 million cycle life, and IP67 sealing, it ensures reliable performance in harsh environments. Ideal for use with 3.5 VDC to 24 VDC power supplies and up to 50 mA output current.
The APEM Panel Switches IHSR36F2101 is a high-reliability momentary pushbutton switch engineered for demanding industrial environments. This switch delivers precise control with a 6 N ± 2 N operating force, 5 million cycle mechanical life, and IP67 protection against dust and water ingress. Designed for operation across a wide temperature range from -40 °C to +85 °C, it ensures consistent performance in extreme conditions. The switch features a low behind-panel depth, standard and high actuator options, and NPN output type, making it suitable for applications requiring reliable, sealed switching in electrical systems.
The IHSR36F2101 operates within a supply voltage range of 3.5 VDC to 24 VDC, with a typical current consumption of 2.5 mA to 5 mA in the OFF position at 12 VDC. It delivers a maximum output current of 50 mA and operates as an NPN switch, ensuring compatibility with a wide range of industrial control systems.
Engineered to withstand extreme environmental conditions, the switch maintains functionality across a temperature range of -40 °C to +85 °C. Its IP67 rating provides robust protection against dust and water ingress, making it ideal for use in harsh industrial settings where exposure to contaminants is common.
With a total travel of 1.80 mm ± 0.3 mm, the switch ensures precise actuation. The panel thickness ranges from 1.5 mm to 4 mm, accommodating various installation requirements while maintaining structural integrity. The switch requires a maximum torque of 1.5 Nm to secure the nut, ensuring reliable assembly.
The low behind-panel depth design minimizes space requirements in tight installations. Standard and high actuator options provide flexibility for different user requirements, while the sealed construction ensures durability without compromising on functionality. This switch is suitable for applications requiring momentary pushbutton functionality in industrial control panels.
| Feature | Specification |
|---|---|
| operating force | 6 N +/- 2 N Mechanical life: 5 million cycles |
| Supply voltage | 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ. |
| sealing | IP67 according to IEC 60529 |
| Panel thickness | 1.5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.80 mm (.070) +/- 0.3 mm Typical |
| Torque | 1.5 Nm max. applied to nut Momentary pushbutton (NO)5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 Low behind-panel depth Standard and high actuator Sealed to IP67 Standard and high act |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
The APEMPanel Switches IHSR36F2101 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| operating force | 6 N +/- 2 N Mechanical life: 5 million cycles |
| Supply voltage | 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ. |
| sealing | IP67 according to IEC 60529 |
| Panel thickness | 1.5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.80 mm (.070) +/- 0.3 mm Typical |
| Torque | 1.5 Nm max. applied to nut Momentary pushbutton (NO)5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 Low behind-panel depth Standard and high actuator Sealed to IP67 Standard and high act |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
