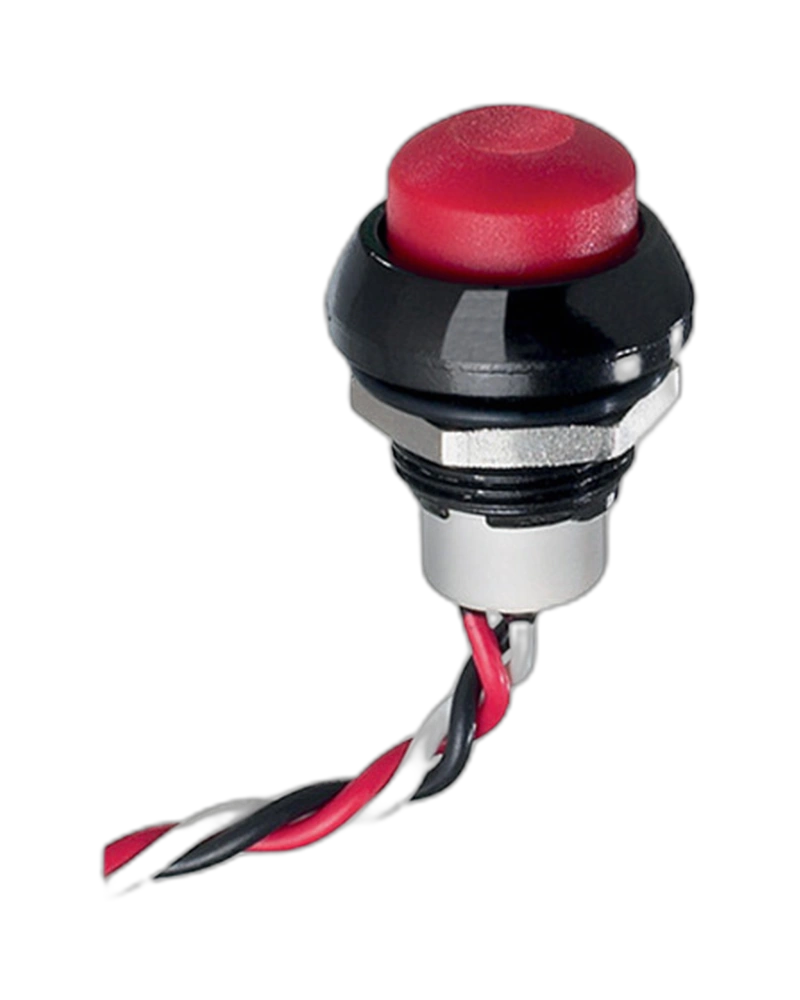

The APEM Panel Switches IHSR36F1 is a robust, sealed momentary pushbutton switch designed for industrial applications. With an IP67 rating, 5 million cycle life, and operation within -40°C to +85°C, it ensures reliable performance in harsh environments. This NPN output switch operates from 3.5 VDC to 24 VDC and delivers up to 50 mA current.
The APEM Panel Switches IHSR36F1 is a high-reliability momentary pushbutton switch engineered for demanding industrial environments. Featuring an IP67 sealed construction, this switch withstands dust and water immersion while maintaining precise operation across extreme temperatures (-40°C to +85°C). Its NPN output configuration, 6 N operating force, and 5 million cycle life make it ideal for applications requiring consistent performance under mechanical stress and electrical load. The switch operates within a 3.5 VDC to 24 VDC range, delivering up to 50 mA current with minimal power consumption (2.5 mA typical at 12 VDC).
The IHSR36F1 operates within a supply voltage range of 3.5 VDC to 24 VDC. At 12 VDC, it consumes 2.5 mA typical current in the OFF position, with a maximum output current of 50 mA and output voltage up to 24 VDC. The switch features an NPN output configuration, ensuring compatibility with a wide range of industrial control systems.
Engineered for extreme conditions, the IHSR36F1 operates across a temperature range of -40°C to +85°C (-40°F to 185°F). Its IP67 rating guarantees protection against dust ingress and temporary immersion in water, making it suitable for outdoor installations and harsh industrial settings.
With a total travel of 1.80 mm (±0.3 mm), the switch provides precise actuation. The maximum operating force is 6 N ± 2 N, and the panel thickness ranges from 1.5 mm to 4 mm. The switch includes low behind-panel depth options for space-constrained applications.
Designed for 5 million cycles of operation, the IHSR36F1 ensures long-term performance in high-traffic environments. The sealed construction and robust mechanical design maintain functionality even under repeated stress and environmental exposure.
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529 |
| operating force | 6 N +/- 2 N Mechanical life: 5 million cycles |
| Supply voltage | 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ. |
| Panel thickness | 1.5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.80 mm (.070) +/- 0.3 mm Typical |
| Torque | 1.5 Nm max. applied to nut Momentary pushbutton (NO) 5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 Low |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
The APEMPanel Switches IHSR36F1 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529 |
| operating force | 6 N +/- 2 N Mechanical life: 5 million cycles |
| Supply voltage | 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ. |
| Panel thickness | 1.5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.80 mm (.070) +/- 0.3 mm Typical |
| Torque | 1.5 Nm max. applied to nut Momentary pushbutton (NO) 5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 Low |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
