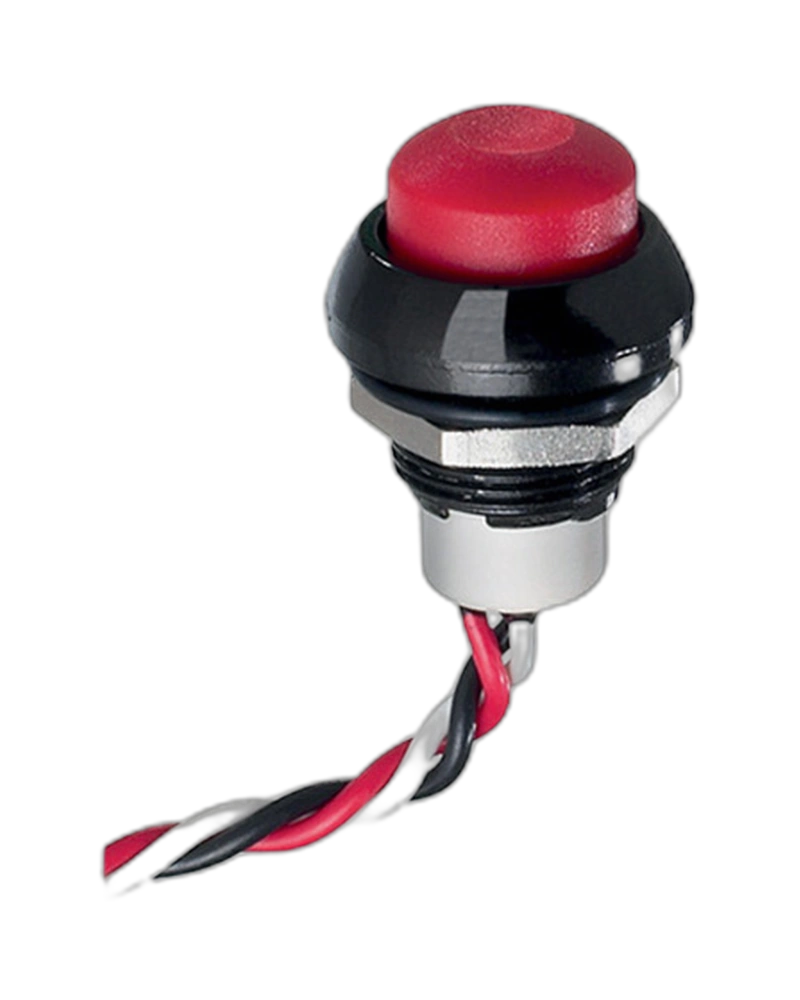

The APEM Panel Switches IHSH36F6 is a Switches and Pushbutton with documented product-specific characteristics including operating force: 6 N +/- 2 N Mechanical life: 5 million cycles; Supply voltage: 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ.; sealing: IP67 according to IEC 60529.
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
| Feature | Specification |
|---|---|
| operating force | 6 N +/- 2 N Mechanical life: 5 million cycles |
| Supply voltage | 3.5 VDC to 24 VDC Supply current: VDC = 12 V: 2.5 mA Typ. to 5 mA max. (current consumption in OFF position) Max. output current: 50 mA Max. output voltage: 24 VDC Output type: NPN Supply current: VDC = 12 V: 2.5 mA Typ. |
| sealing | IP67 according to IEC 60529 |
| Panel thickness | 1.5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.80 mm (.070) +/- 0.3 mm Typical |
| Torque | 1.5 Nm max. applied to nut Momentary pushbutton (NO)5 million cycles Low behind-panel depth Standard and high actuator Sealed to IP67 Low behind-panel depth Standard and high actuator Sealed to IP67 Standard and high act |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Max. output current | 50 mA Max. output voltage: 24 VDC Output type: NPN |
| Max. output voltage | 24 VDC Output type: NPN |
| voltage | 24 V |
| current | 50 mA |
| Output type | NPN |
