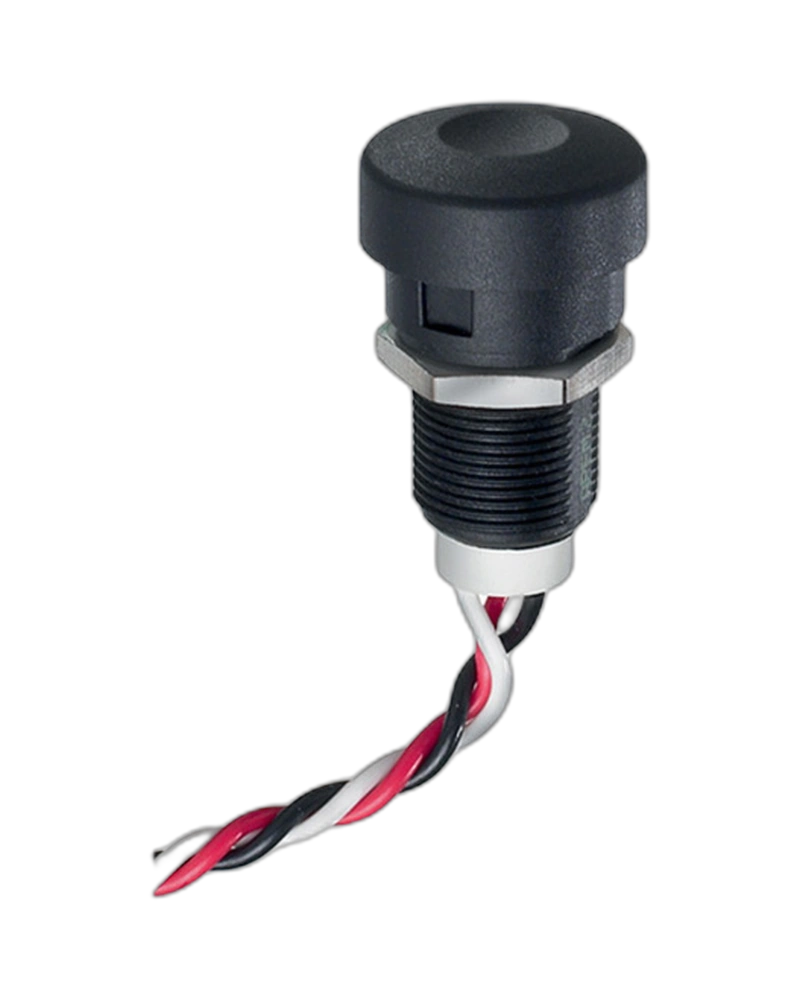

The APEM Panel Switches IHLR017XF2 is a robust linear output pushbutton switch designed for industrial applications. With an IP67 sealing rating, operating temperature range of -40°C to +85°C, and 5 million cycle life, this autoswitch provides reliable performance in demanding environments. It delivers 0.5 to 4.5 V output with a max output current of 1.25 mA, suitable for low-power control systems.
The APEM Panel Switches IHLR017XF2 is a high-reliability linear output pushbutton switch engineered for industrial automation and control systems. This autoswitch features an IP67-rated enclosure for dust and water resistance, ensuring seamless operation in harsh environments from -40°C to +85°C. With a mechanical life of 5 million cycles and a 1.25 mA max output current, it delivers precise control for low-power applications while maintaining robust performance under varying operating conditions. The switch operates within a 0.5 to 4.5 V output range and supports different operating forces, making it ideal for integration into critical industrial machinery and equipment.
The IHLR017XF2 operates within a supply voltage range of -4.5 VDC to 5.5 VDC without a regulator and 6.5 VDC to 24 VDC with a 5 V regulator. It delivers a maximum output current of 1.25 mA and requires a supply current of 9 mA max. The switch provides a linear output voltage range of 0.5 to 4.5 V, suitable for low-power control circuits.
Engineered for extreme conditions, the IHLR017XF2 operates across a temperature range of -40°C to +85°C. Its IP67 rating ensures protection against dust and water immersion, meeting IEC 60529 standards. The switch also complies with EMC testing requirements up to 1,000 MHz, ensuring robust performance in electromagnetic environments.
With a panel thickness of 1.5 mm (minimum) to 10 mm (maximum), the switch features a total travel of 4 mm (±0.3 mm). The maximum torque applied to the nut is 1 Nm, and it supports 5 million cycles of operation, making it suitable for high-reliability industrial applications.
The IHLR017XF2 is ideal for industrial control panels, machinery interfaces, and automation systems requiring reliable pushbutton switches. Its linear output and low-power operation make it suitable for applications such as machine control, process monitoring, and safety interlocks where precise switching is critical.
| Feature | Specification |
|---|---|
| Operating Force | Hard,Output Voltage:0.5 to 45 V,Regulator:None |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
The APEMPanel Switches IHLR017XF2 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Operating Force | Hard,Output Voltage:0.5 to 45 V,Regulator:None |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
