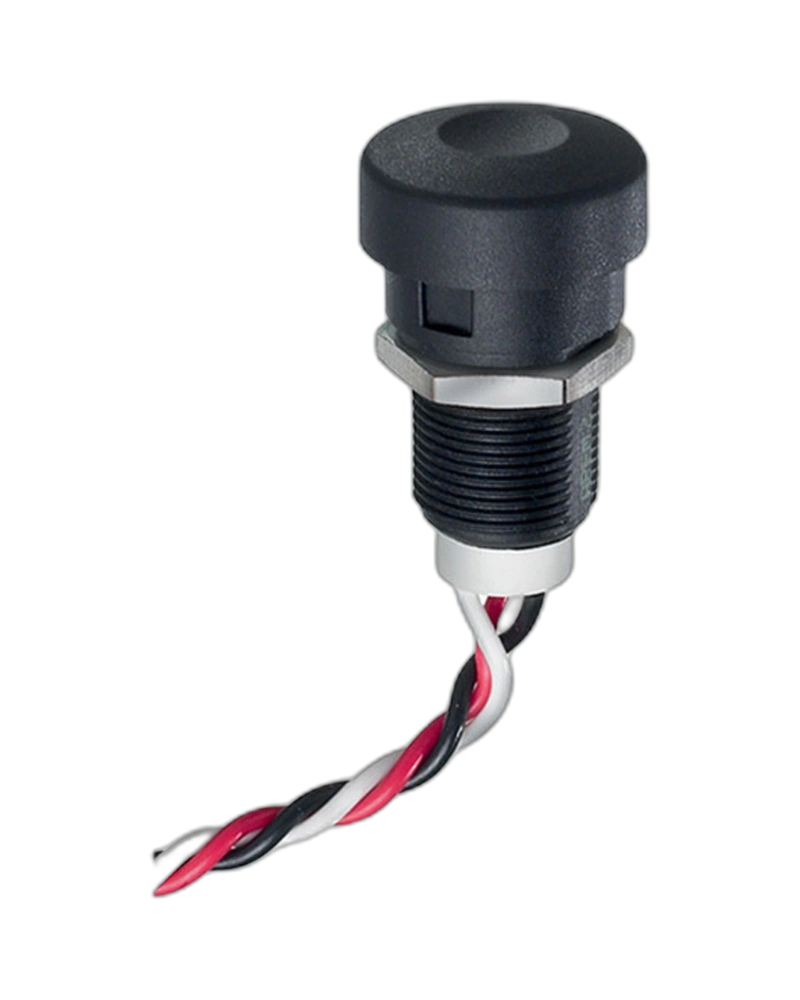

The APEM Panel Switches IHLR015XF6 is a robust linear output pushbutton switch designed for industrial applications. With an IP67 sealing rating, 5 million cycle life, and operating forces of 4N to 6N, this autoswitch delivers reliable performance across extreme temperatures (-40°C to +85°C) and voltage ranges (0.5V to 45V). Ideal for demanding environments where durability and electrical stability are critical.
The APEM Panel Switches IHLR015XF6 is a high-reliability linear output pushbutton switch engineered for industrial automation systems. This autoswitch combines IP67-rated sealing, exceptional mechanical durability with 5 million operational cycles, and a wide operating temperature range (-40°C to +85°C) to ensure consistent performance in harsh conditions. Its linear output capability provides precise electrical signaling from 0.5V to 4.5V, making it suitable for applications requiring reliable switching in electrically noisy environments.
The IHLR015XF6 operates within a supply voltage range of 4.5VDC to 5.5VDC without a regulator and 6.5VDC to 24VDC with a 5V regulator. It delivers a maximum output current of 1.25 mA and consumes up to 9 mA of supply current. The switch provides linear output signals between 0.5V and 4.5V, ensuring precise electrical control in industrial systems.
Engineered for extreme conditions, this switch operates across a temperature range of -40°C to +85°C and features IP67 sealing to protect against dust and immersion in water. It meets rigorous EMC standards, including radiated emissions up to 1,000 MHz and 1 kHz sine wave modulation, ensuring stability in electrically noisy environments.
With a total travel of 4 mm (±0.3 mm) and a maximum torque of 1 Nm, the IHLR015XF6 withstands 5 million operational cycles. Its flying leads mounting design minimizes behind-the-panel depth, facilitating easy installation in confined spaces while maintaining robust mechanical integrity.
The IHLR015XF6 is ideal for industrial control panels, machinery interfaces, and automation systems where reliable switching is critical. Its low behind-the-panel depth and IP67 rating make it suitable for marine, automotive, and outdoor applications requiring resistance to environmental stressors.
| Feature | Specification |
|---|---|
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton0.5 to 4.5 volt output Different operating forces5 million cycles Sealed to IP67 Different operating forces5 million cycles Sealed to IP67 Sealed to IP67 Discover ihlr015x |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
The APEMPanel Switches IHLR015XF6 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton0.5 to 4.5 volt output Different operating forces5 million cycles Sealed to IP67 Different operating forces5 million cycles Sealed to IP67 Sealed to IP67 Discover ihlr015x |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
