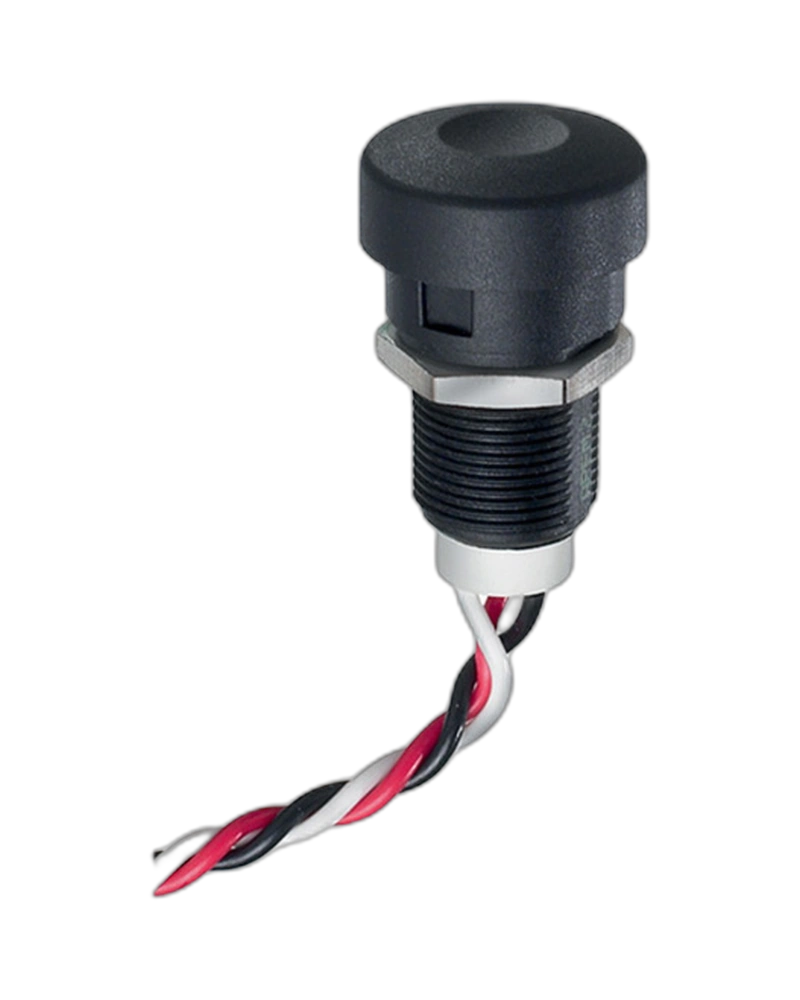

The APEM Panel Switches IHLR015XF4 is a robust linear output pushbutton switch designed for industrial applications. With an IP67 sealing rating, operating force range of 4N to 6N, and 5 million cycle life, this autoswitch ensures reliable performance in harsh environments. It delivers 0.5 to 4.5 VDC output with a max current of 1.25 mA, suitable for demanding electrical systems.
The APEM Panel Switches IHLR015XF4 is a high-reliability linear output pushbutton switch engineered for industrial automation and control systems. This autoswitch combines IP67 sealing for dust and water resistance with a wide operating temperature range of -40°C to +85°C, making it ideal for extreme environments. Its 5 million cycle life, 4N to 6N operating force, and 0.5 to 4.5 VDC output capability ensure consistent performance in critical applications where durability and precision are essential.
The IHLR015XF4 operates within a supply voltage range of 4.5 VDC to 5.5 VDC without a regulator and 6.5 VDC to 24 VDC with a 5 V regulator. It delivers a maximum output current of 1.25 mA and consumes up to 9 mA of supply current. The output voltage ranges from 0.5 to 4.5 VDC, providing flexibility for diverse industrial circuits.
Engineered for extreme conditions, this switch operates across a temperature range of -40°C to +85°C and features IP67 sealing to protect against dust and water immersion. It meets stringent EMC standards, including radiated fields up to 1,000 MHz and 1 kHz sine wave modulation, ensuring compatibility in electromagnetic-rich environments.
With a panel thickness of 1.5 mm (minimum) to 10 mm (maximum), the IHLR015XF4 offers a total travel of 4 mm (±0.3 mm) and a maximum torque of 1 Nm. Its linear output pushbutton design ensures precise actuation with 5 million cycle life, ideal for high-frequency applications.
The IHLR015XF4 is designed for industrial control panels, machinery, and automation systems where reliable switching is critical. Its robust construction and environmental resilience make it suitable for use in automotive, manufacturing, and energy sectors without requiring additional protection.
| Feature | Specification |
|---|---|
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
The APEMPanel Switches IHLR015XF4 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
