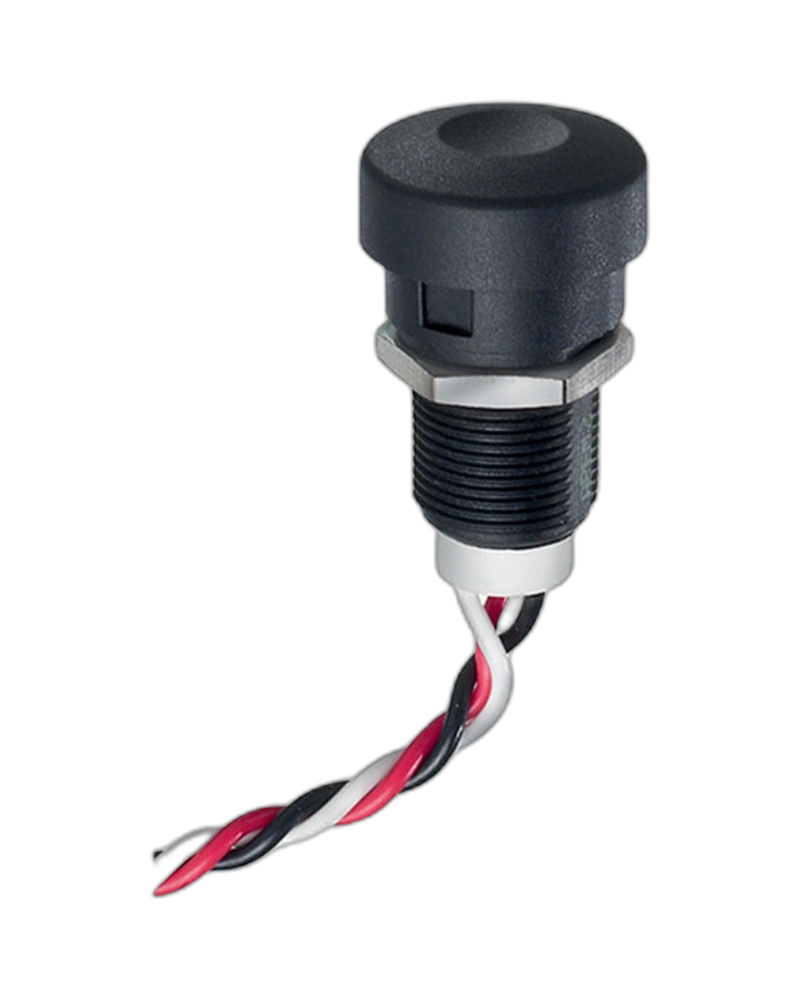

The APEM Panel Switches IHLR015XF3 is a robust linear output pushbutton switch designed for industrial applications. With an IP67 sealed construction, 5 million cycle life, and 0.5 to 4.5 V output range, this autoswitch ensures reliable operation in harsh environments from -40°C to +85°C. Ideal for machinery and control systems requiring precise switching with minimal behind-the-panel depth.
The APEM Panel Switches IHLR015XF3 is a high-reliability linear output pushbutton switch engineered for demanding industrial environments. This autoswitch delivers precise switching functionality with a 0.5 to 4.5 V output range, supporting a wide operating force range and maintaining performance across extreme temperatures from -40°C to +85°C. Its IP67 sealed construction provides exceptional protection against dust and water, while the 5 million cycle life ensures long-term durability in critical applications. The switch features a low behind-the-panel depth, making it suitable for space-constrained installations, and operates within a standard supply voltage range of 4.5 VDC to 5.5 VDC without a regulator or 6.5 VDC to 24 VDC with a 5 V regulator.
The APEM Panel Switches IHLR015XF3 operates within a 0.5 to 4.5 V output range. Supply voltage ranges from 4.5 VDC to 5.5 VDC without a regulator or 6.5 VDC to 24 VDC with a 5 V regulator. Max. supply current is 9 mA, and max. output current is 1.25 mA. The switch supports linear output pushbutton functionality with different operating forces.
Engineered for extreme conditions, this switch operates across a temperature range of -40°C to +85°C. It meets stringent EMC standards including 10 V per meter radiated fields from 80 MHz to 1,000 MHz and 1 kHz 80% sine wave modulation (IEC/EN 61000-4-3). The IP67 rating ensures complete protection against dust and water immersion.
With a panel thickness of 1.5 mm (minimum) to 10 mm (maximum), the switch features a total travel of 4 mm (±0.3 mm). The maximum torque applied to the nut is 1 Nm, and it is designed for 5 million cycles of operation under varying operating forces.
The IP67 sealed construction provides robust protection against dust and water, ensuring reliable performance in harsh industrial environments. The switch is designed for long-term durability with a 5 million cycle life, making it ideal for applications requiring high reliability and minimal maintenance.
| Feature | Specification |
|---|---|
| Operating Force | Standard,Output Voltage:0.5 to 45 V |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
The APEMPanel Switches IHLR015XF3 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Operating Force | Standard,Output Voltage:0.5 to 45 V |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
