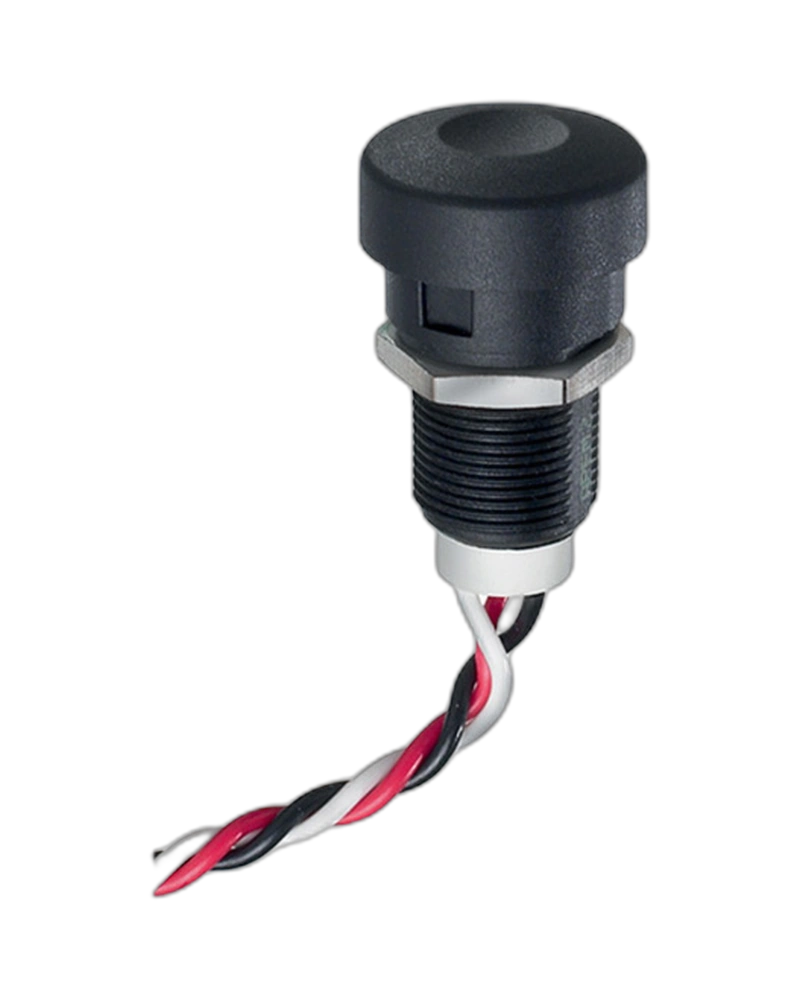

The APEM Panel Switches IHLR015XF2 is a robust, sealed autoswitch designed for industrial applications. Featuring IP67 protection, 5 million cycle life, and 0.5-4.5V output, this switch ensures reliable operation in harsh environments from -40°C to +85°C. Ideal for machinery requiring precise, durable switching.
The APEM Panel Switches IHLR015XF2 is a high-reliability, sealed autoswitch engineered for demanding industrial environments. With IP67 protection against dust and water immersion, this switch delivers exceptional durability through 5 million operational cycles. Its linear output pushbutton design provides precise control with 0.5 to 4.5V outputs, operating forces up to 6N, and a compact form factor with minimal behind-the-panel depth. The switch operates within a wide temperature range of -40°C to +85°C and supports both low-voltage DC (4.5V to 5.5V) and regulated higher-voltage (6.5V to 24V) applications, making it suitable for critical machinery and automation systems where reliability is paramount.
The IHLR015XF2 operates within a supply voltage range of -4.5 VDC to 5.5 VDC without a regulator and -6.5 VDC to 24 VDC with a 5 V regulator. It delivers a maximum output current of 1.25 mA with a supply current of 9 mA max. The switch provides a linear output pushbutton with 0.5 to 4.5V output capability, ensuring precise control signals in industrial automation systems.
Engineered for extreme conditions, the IHLR015XF2 operates across a temperature range of -40°C to +85°C. Its IP67 rating ensures protection against dust ingress and temporary immersion in water, meeting IEC 60529 standards. The switch also passes rigorous EMC testing up to 1,000 MHz, with 10 V/m radiated fields and 80% sine wave modulation at 1 kHz.
With a total travel of 4 mm (±0.3 mm) and a mechanical life of 5 million cycles, the IHLR015XF2 withstands repeated use in high-stress environments. The switch requires a maximum torque of 1 Nm when mounting, ensuring secure installation without compromising performance. Its low behind-the-panel depth minimizes space requirements in tight industrial enclosures.
This autoswitch is ideal for machinery requiring precise, durable switching in harsh conditions. Applications include industrial control panels, automation systems, and equipment where environmental resilience and long operational life are critical.
| Feature | Specification |
|---|---|
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Mechanical life : 5 million cycles |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator - 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 m |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
The APEMPanel Switches IHLR015XF2 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Mechanical life : 5 million cycles |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator - 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 m |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
