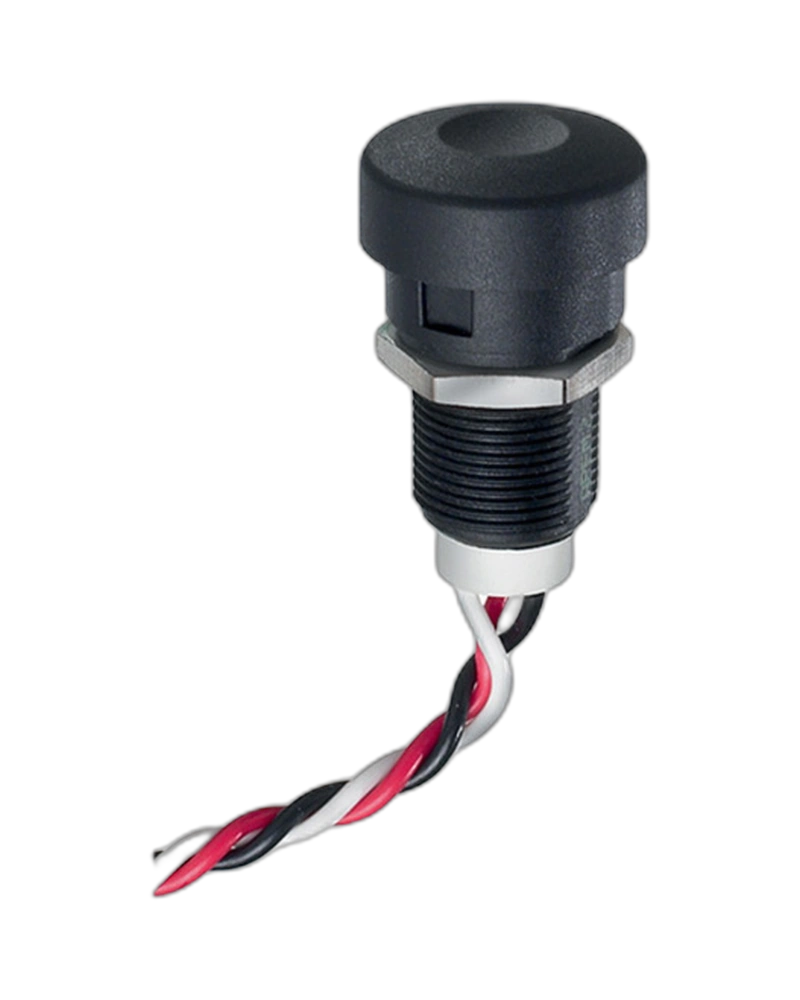

The APEM Panel Switches IHLR015XF1 is a robust linear output pushbutton switch designed for industrial applications. With an IP67 sealing rating, operating force of 4N to 6N, and 0.5 to 4.5V output, this switch delivers reliable performance in harsh environments. It features 5 million cycles of mechanical life and operates within a temperature range of -40°C to +85°C.
The APEM Panel Switches IHLR015XF1 is a high-reliability linear output pushbutton switch engineered for demanding industrial environments. This autoswitch delivers precise control with a 0.5 to 4.5V output range, operating forces between 4N and 6N, and exceptional mechanical life of 5 million cycles. Its IP67 sealing ensures protection against dust and water immersion, while the wide operating temperature range of -40°C to +85°C makes it suitable for extreme conditions. The switch also meets rigorous EMC standards up to 1,000 MHz, ensuring compatibility in complex electrical systems.
The IHLR015XF1 operates within a supply voltage range of 4.5 VDC to 5.5 VDC without a regulator and 6.5 VDC to 24 VDC with a 5 V regulator. It delivers a maximum output current of 1.25 mA and consumes up to 9 mA of supply current. The switch provides a linear output signal ranging from 0.5 to 4.5 volts.
Engineered for extreme conditions, this switch operates across a temperature range of -40°C to +85°C. Its IP67 rating ensures complete protection against dust and water immersion, making it ideal for outdoor or harsh industrial settings. The product also meets EMC standards up to 1,000 MHz, ensuring robust performance in electromagnetic environments.
With a panel thickness of 1.5 mm (minimum) to 10 mm (maximum), the switch features a total travel of 4 mm (±0.3 mm). The maximum torque applied to the nut is 1 Nm, and the switch is designed for 5 million cycles of mechanical operation without degradation.
The IHLR015XF1 is ideal for applications requiring reliable, low-maintenance switching in industrial control panels. Its linear output pushbutton design ensures precise signal generation, while the IP67 sealing and wide temperature range make it suitable for use in automotive, manufacturing, and outdoor environments where durability is critical.
| Feature | Specification |
|---|---|
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
The APEMPanel Switches IHLR015XF1 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
