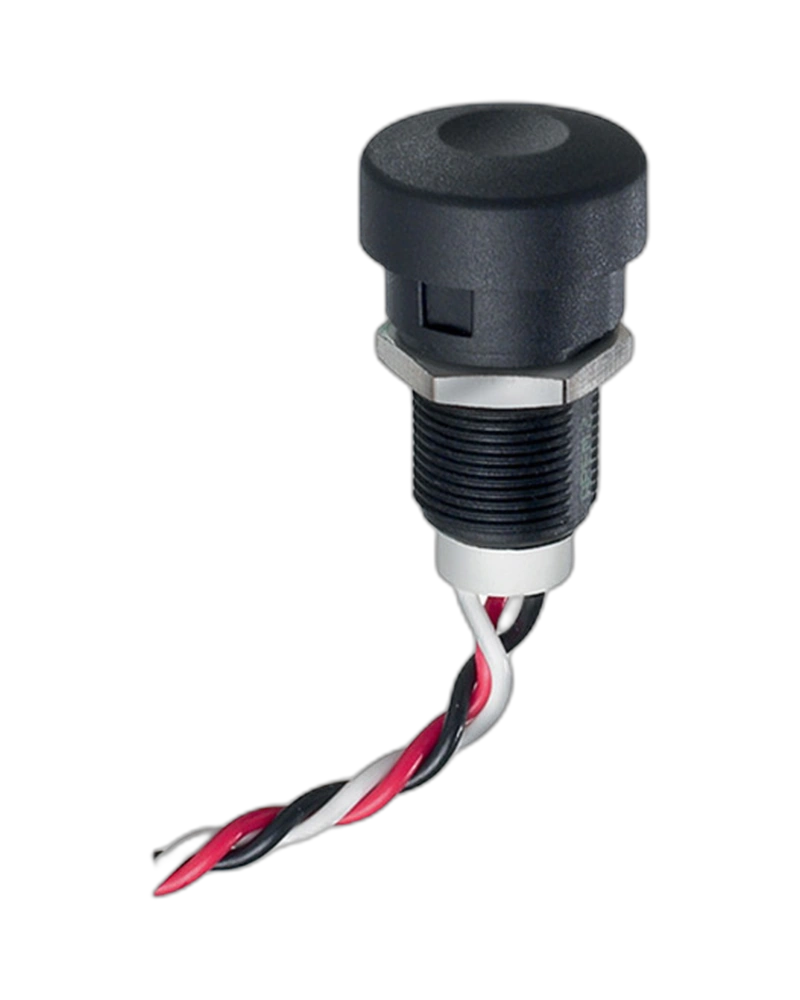

The APEM Panel Switches IHLR0155F6 is a robust linear output pushbutton switch designed for industrial applications. Featuring IP67 sealing, 5 million cycle life, and 0.5 to 4.5 V output, this autoswitch operates reliably across -40°C to +85°C temperatures. Ideal for demanding environments requiring precise electrical control.
The APEM Panel Switches IHLR0155F6 is a high-reliability linear output pushbutton switch engineered for industrial automation systems. This autoswitch delivers precise electrical control with a 0.5 to 4.5 V output range, supporting multiple operating forces and maintaining performance across extreme temperature conditions from -40°C to +85°C. Its IP67-rated construction ensures protection against dust and water immersion, making it suitable for harsh industrial environments where durability and consistent operation are critical.
The IHLR0155F6 operates within a supply voltage range of 4.5 VDC to 5.5 VDC without a regulator and 6.5 VDC to 24 VDC with a 5 V regulator. It delivers a linear output pushbutton signal with a 0.5 to 4.5 V DC output range, supporting maximum output current of 1.25 mA. The switch consumes a maximum supply current of 9 mA, ensuring low power consumption in industrial systems.
Engineered for extreme conditions, the IHLR0155F6 operates reliably across a temperature range of -40°C to +85°C. Its IP67 rating (IEC 60529) provides robust protection against dust and water immersion, making it suitable for outdoor installations and harsh industrial environments. The switch also meets stringent EMC standards with 10 V/m radiated fields up to 1,000 MHz.
With a panel thickness of 1.5 mm (minimum) to 10 mm (maximum), the IHLR0155F6 features a total travel of 4 mm (±0.3 mm) and a maximum torque of 1 Nm. The switch is designed for 5 million cycle life, ensuring long-term durability in high-traffic industrial applications.
| Feature | Specification |
|---|---|
| Operating Force | Standard,Output Voltage:0.5 to 45 V,Regulator:5V |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
The APEMPanel Switches IHLR0155F6 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Operating Force | Standard,Output Voltage:0.5 to 45 V,Regulator:5V |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
