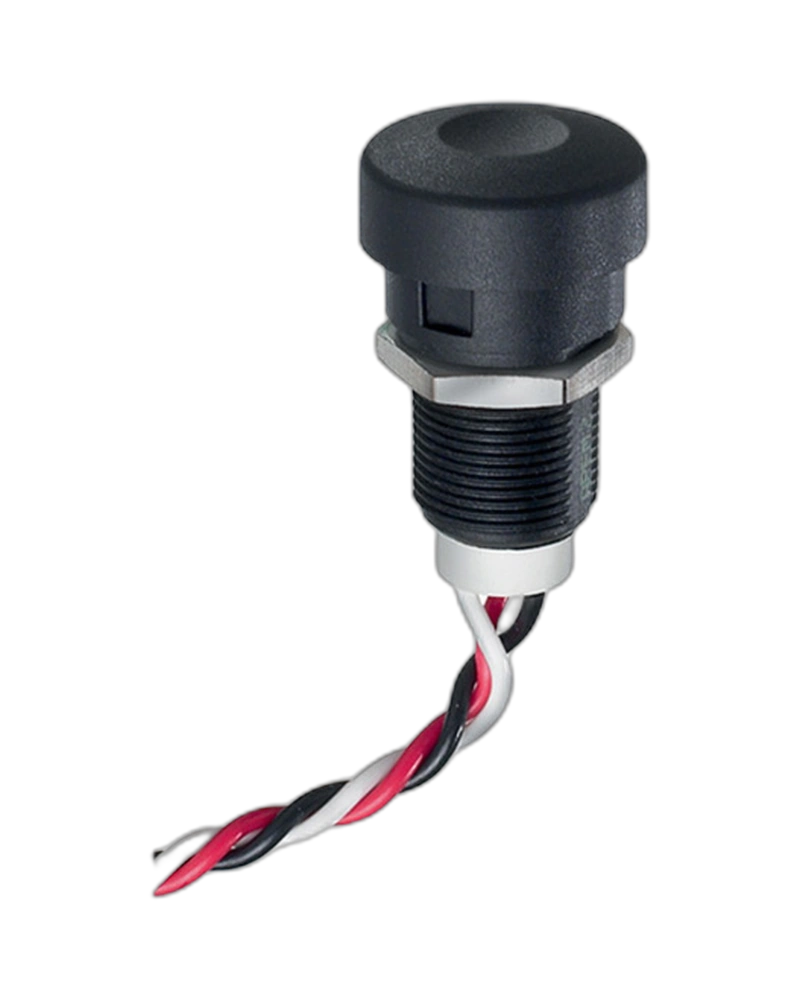

The APEM Panel Switches IHLR0155F2 is a robust linear output pushbutton switch designed for industrial applications. With an IP67 sealing rating, operating temperature range of -40°C to +85°C, and 5 million cycle life, this autoswitch ensures reliable performance in demanding environments. It delivers 0.5 to 4.5 V output with a max output current of 1.25 mA, suitable for precise control in automation systems.
The APEM Panel Switches IHLR0155F2 is a high-reliability linear output pushbutton switch engineered for industrial automation and control systems. This autoswitch features an IP67-rated enclosure for dust and water resistance, operating across extreme temperatures from -40°C to +85°C, and delivers up to 5 million mechanical cycles for long-term durability. Its 0.5 to 4.5 V output range with a maximum output current of 1.25 mA ensures precise signal control in critical applications, while the 4 mm total travel and 1 Nm torque specification support robust actuation in harsh environments.
The IHLR0155F2 operates within a supply voltage range of 4.5 VDC to 5.5 VDC without a regulator and 6.5 VDC to 24 VDC with the integrated 5 V regulator. It delivers a linear output signal between 0.5 V and 4.5 V, with a maximum output current of 1.25 mA. The switch consumes a maximum supply current of 9 mA, ensuring low power consumption in industrial control circuits.
Engineered for extreme conditions, the IHLR0155F2 operates across a temperature range of -40°C to +85°C and meets IP67 standards for dust and water resistance. It also complies with EMC regulations, including 10 V/m radiated fields up to 1,000 MHz and 1 kHz sine wave modulation at 80% amplitude, ensuring robust performance in electromagnetic interference-prone environments.
With a panel thickness of 1.5 mm (minimum) to 10 mm (maximum), the switch features a total travel of 4 mm (±0.3 mm) and a maximum torque of 1 Nm. The linear output pushbutton design supports 5 million mechanical cycles, making it ideal for applications requiring frequent actuation without degradation.
| Feature | Specification |
|---|---|
| Operating Force | Standard,Output Voltage:0.5 to 45 V,Regulator:5V |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
The APEMPanel Switches IHLR0155F2 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Operating Force | Standard,Output Voltage:0.5 to 45 V,Regulator:5V |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
