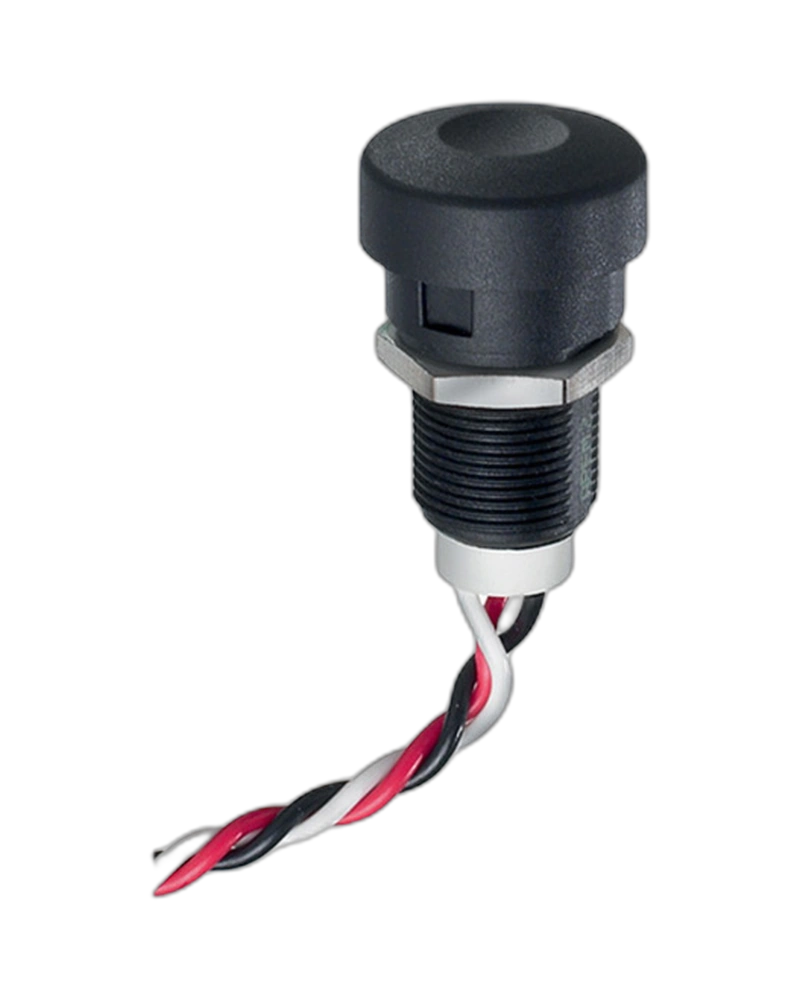

The APEM Panel Switches IHLR013XF6 is a robust linear output pushbutton switch designed for industrial applications. With IP67 sealing, 5 million cycle life, and 0.5 to 4.5 VDC output, this autoswitch ensures reliable operation in harsh environments. Ideal for machinery control where durability and electrical safety are critical.
The APEM Panel Switches IHLR013XF6 is a high-reliability linear output pushbutton switch engineered for demanding industrial environments. This autoswitch delivers precise 0.5 to 4.5 VDC output signals with a maximum output current of 1.25 mA, operating within a wide temperature range of -40 °C to +85 °C. Its IP67-rated sealing ensures protection against dust and water immersion, while the 5 million cycle life guarantees long-term performance in critical applications. The switch features a low behind-the-panel depth, making it suitable for space-constrained installations.
The IHLR013XF6 operates within a supply voltage range of 4.5 VDC to 5.5 VDC without a regulator and 6.5 VDC to 24 VDC with a 5 V regulator. It delivers a maximum output current of 1.25 mA and consumes up to 9 mA of supply current. The switch provides a linear output pushbutton signal with 0.5 to 4.5 VDC output levels, suitable for low-power control circuits.
Engineered for extreme conditions, the IHLR013XF6 operates across a temperature range of -40 °C to +85 °C. It meets stringent electromagnetic compatibility (EMC) standards, including 10 V/m radiated fields up to 1,000 MHz and 1 kHz sine wave modulation at 80% amplitude. The IP67 rating ensures protection against dust ingress and temporary immersion in water.
With a panel thickness of 1.5 mm (minimum) to 10 mm (maximum), the switch features a total travel of 4 mm (±0.3 mm). It supports a maximum torque of 1 Nm applied to the nut and requires a force of 6 N for operation. The switch is designed for 5 million mechanical cycles, ensuring longevity in high-use applications.
The IHLR013XF6 is ideal for industrial control panels where durability and environmental resilience are essential. Its low behind-the-panel depth and IP67 sealing make it suitable for machinery, automation systems, and equipment exposed to dust, moisture, or harsh conditions. The switch’s linear output and low power consumption ensure compatibility with a wide range of control circuits.
| Feature | Specification |
|---|---|
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
The APEMPanel Switches IHLR013XF6 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 0.5 to 4.5 volt output Different operating forces 5 million cycles Sealed to IP67 Differ |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| current | 1.25 mA |
