Explore performance details, construction highlights, applications, and technical information in one clear overview.

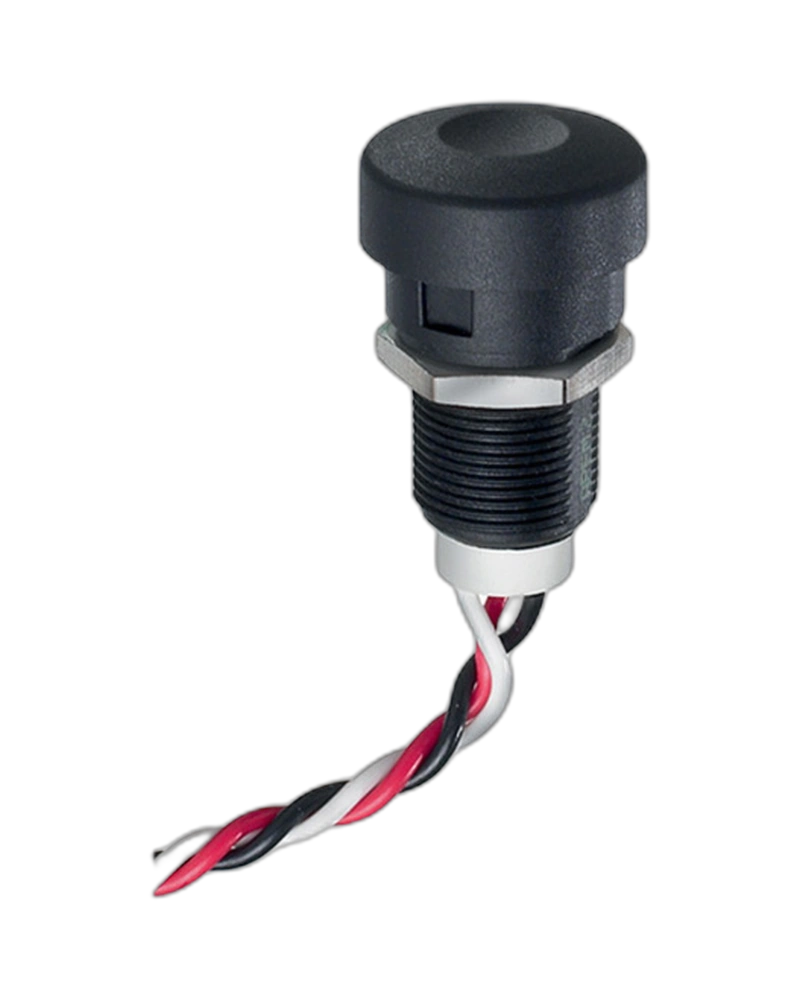

The APEM Panel Switches IHLR0135F2 is a Switches and Pushbutton with documented product-specific characteristics including Operating Force: Soft,Output Voltage:0.5 to 45 V,Regulator:5V; Supply voltage: - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA; sealing: IP67 according to IEC 60529.
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| Electrical Specifications Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA |
| current | 1.25 mA |
| Feature | Specification |
|---|---|
| Operating Force | Soft,Output Voltage:0.5 to 45 V,Regulator:5V |
| Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA Supply current : 9 mA max. Max. output current : 1.25 mA Max. output current : 1.25 mA |
| sealing | IP67 according to IEC 60529 |
| Operating temperature | -40 °C to +85 °C EMC testing : 10 V per meter extend to radiated fields in freq. range of 80 Mhz to 1,000 MHz. 1KHz 80 % sine wave modulation according to IEC/EN 61000-4-3 EMC testing : 10 V per meter extend to radiated |
| Panel thickness | 1.5 mm (.059) min. 10 mm (.393) max. |
| Total travel | 4 mm (.160) +/- 0.3 mm Mechanical life : 5 million cycles |
| Torque | 1 Nm max. applied to nut Linear output pushbutton0.5 to 4.5 volt output Different operating forces5 million cycles Sealed to IP67 Different operating forces5 million cycles Sealed to IP67 Sealed to IP67 Max. output curre |
| Feature | Specification |
|---|---|
| Max. output current | 1.25 mA |
| Electrical Specifications Supply voltage | - 4.5 VDC to 5.5 VDC without regulator- 6.5 VDC to 24 VDC with 5 V regulator Supply current : 9 mA max. Max. output current : 1.25 mA |
| current | 1.25 mA |
