Explore performance details, construction highlights, applications, and technical information in one clear overview.

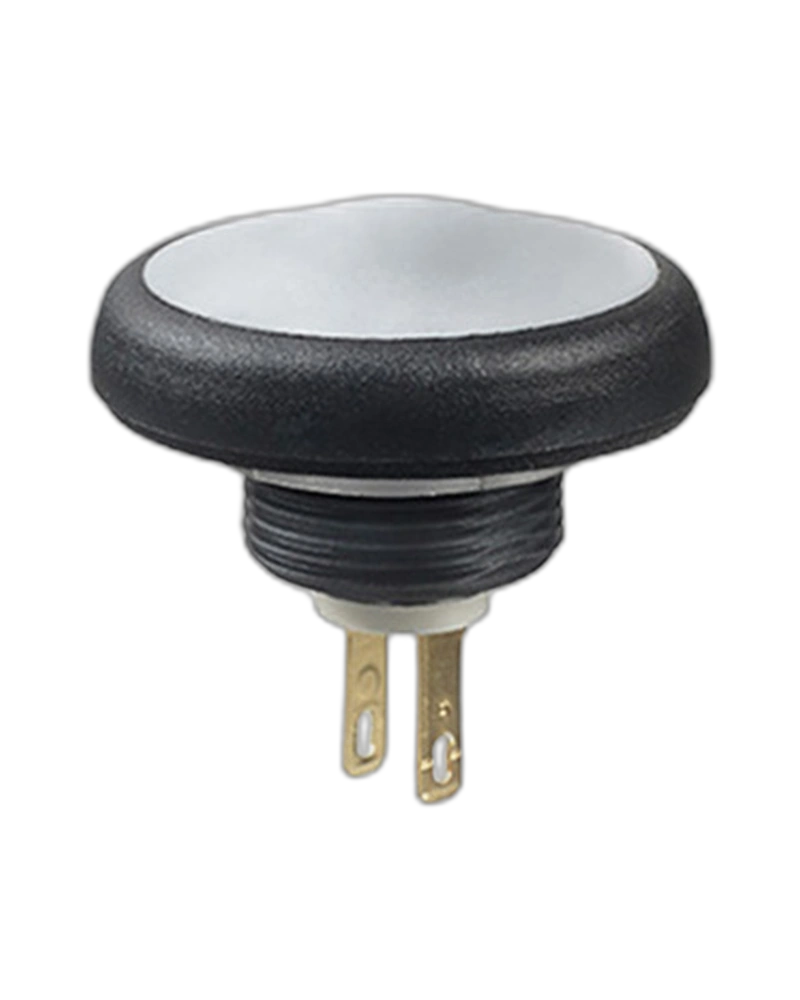

The IFS3Z1AD7/100 Panel Switch features a normally open configuration, solid silver contacts, and gold plating for superior conductivity and durability. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 VAC rms. between terminals and frame 1,500 VAC between terminals Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing (switches mounted on panel):- IP67 (thr |
| Operating temperature | -20 °C to +85 °C (-4 °F to 185 °F) Soldering : 320°C max. for 3 seconds Round Ø9.6 mm h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options h=14.9 mm Chamfer edges Full, lens or legen |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
