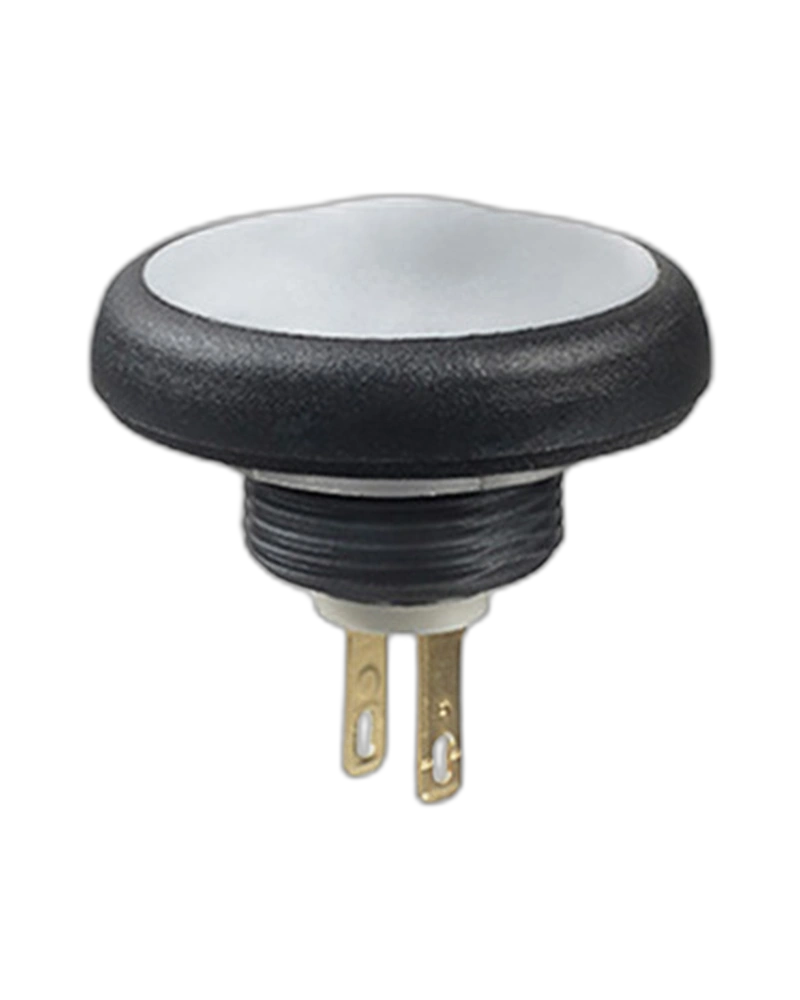

The APEM Panel Switches IFS3Z1AD200 is a robust autoswitch designed for industrial applications. Featuring IP67 sealing, 500,000 cycle electrical life, and 50 mΩ max contact resistance, this round switch ensures reliable operation in harsh environments. Ideal for demanding electrical systems requiring high durability and precise control.
The APEM Panel Switches IFS3Z1AD200 is a high-reliability autoswitch engineered for industrial environments. With a compact round design (Ø9.6 mm, h=14.9 mm), this switch delivers exceptional performance through its IP67 sealing, 500,000 cycle electrical life, and 50 mΩ max contact resistance. The switch supports both AC and DC loads up to 400 mA at 32 VAC or 100 mA at 48 VDC, making it suitable for applications requiring precise control in extreme conditions. Its resistance to frost, snap-in and threaded bushing options, and 20 standard color choices provide flexibility for integration into diverse industrial systems.
The IFS3Z1AD200 operates with a maximum current of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. It features a normally open (NO) electrical function and an initial contact resistance of 50 mΩ max. The switch maintains an insulation resistance of 1 GΩ min. at 500 VDC and withstands dielectric strength of 1,000 VAC rms between terminals and frame, 1,500 VAC between terminals.
Engineered for extreme conditions, the IFS3Z1AD200 operates within a temperature range of -20 °C to +85 °C (-4 °F to 185 °F). Its IP67 sealing ensures protection against dust and water immersion, while frost resistance guarantees reliable performance in cold environments. The switch is also suitable for both snap-in and threaded bushing models, enhancing installation flexibility.
With a compact round design (Ø9.6 mm, h=14.9 mm), the IFS3Z1AD200 includes chamfered edges for safety and ease of use. The switch supports full, lens, or legend illumination options and offers 20 standard color choices. Its robust construction ensures 500,000 cycle electrical life at full load, making it ideal for high-demand industrial applications.
The IFS3Z1AD200 can be operated with gloved hands, providing user safety during installation and maintenance. It features quick-connect terminals and is designed for seamless integration into industrial control systems. The switch's soldering temperature limit of 320°C max for 3 seconds ensures compatibility with standard soldering processes without compromising integrity.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 VAC rms. between terminals and frame 1,500 VAC between terminals Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing (switches mounted on panel):- IP67 (thr |
| Operating temperature | -20 °C to +85 °C (-4 °F to 185 °F) Soldering : 320°C max. for 3 seconds Round Ø9.6 mm h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options h=14.9 mm Chamfer edges Full, lens or legen |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches IFS3Z1AD200 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 VAC rms. between terminals and frame 1,500 VAC between terminals Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing (switches mounted on panel):- IP67 (thr |
| Operating temperature | -20 °C to +85 °C (-4 °F to 185 °F) Soldering : 320°C max. for 3 seconds Round Ø9.6 mm h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options h=14.9 mm Chamfer edges Full, lens or legen |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
