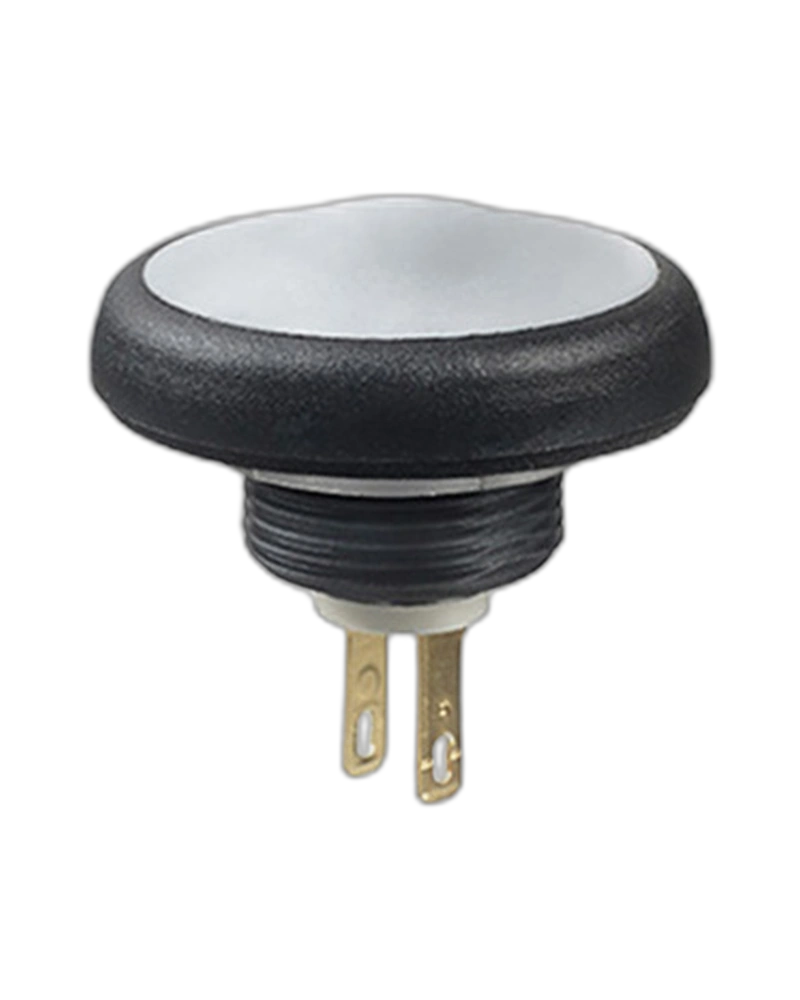

The APEM Panel Switches IFS3Z1AD1/400 is a robust autoswitch designed for industrial applications. With an IP67 sealed construction, it offers exceptional resistance to dust, water, and frost, ensuring reliable operation in harsh environments. This switch supports a maximum current of 400 mA at 32 VAC and 100 mA at 48 VDC, with an electrical life of 500,000 cycles for long-term use in demanding industrial systems.

Product Overview

The APEM Panel Switches IFS3Z1AD1/400 is a high-reliability autoswitch engineered for industrial control panels. This switch delivers exceptional durability through its IP67-rated sealing, which protects against dust, water immersion, and frost, making it ideal for use in extreme environmental conditions ranging from -20°C to +85°C. Its quick-connect terminals and robust construction ensure seamless integration into electrical systems while maintaining low contact resistance (50 mΩ max) and high electrical life (500,000 cycles). The switch operates reliably under a wide voltage range (32 VAC/48 VDC) and can be safely operated with gloved hands, providing a safe and efficient solution for industrial automation and control applications.

Electrical Specifications

The IFS3Z1AD1/400 operates within a maximum current of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. It features a low initial contact resistance of 50 mΩ max, ensuring minimal voltage drop during operation. The switch maintains electrical life of 500,000 cycles at full load, providing long-term reliability in industrial applications.

Environmental Performance

Engineered to withstand extreme temperatures from -20°C to +85°C (-4°F to 185°F), the switch is resistant to frost and suitable for outdoor or harsh indoor environments. Its IP67 sealing ensures protection against dust, water immersion, and accidental contact, making it ideal for use in industrial settings where environmental conditions are challenging.

Operational Features

The switch supports snap-in and threaded bushing models for versatile installation options. It can be operated with gloved hands, enhancing safety during maintenance. The quick-connect terminals simplify wiring and reduce installation time, while the 5 N force requirement ensures smooth operation without excessive effort.

Durability and Reliability

With an insulation resistance of 1 GΩ min. at 500 VDC and dielectric strength of 1,000 VAC rms between terminals and frame, the switch ensures robust electrical isolation. The dielectric strength of 1,500 VAC between terminals provides additional protection against electrical surges, ensuring long-term performance in demanding industrial applications.

Technical Specifications

Specifications

Product Summary

The APEMPanel Switches IFS3Z1AD1/400 is presented using the documented product characteristics available for this model.
