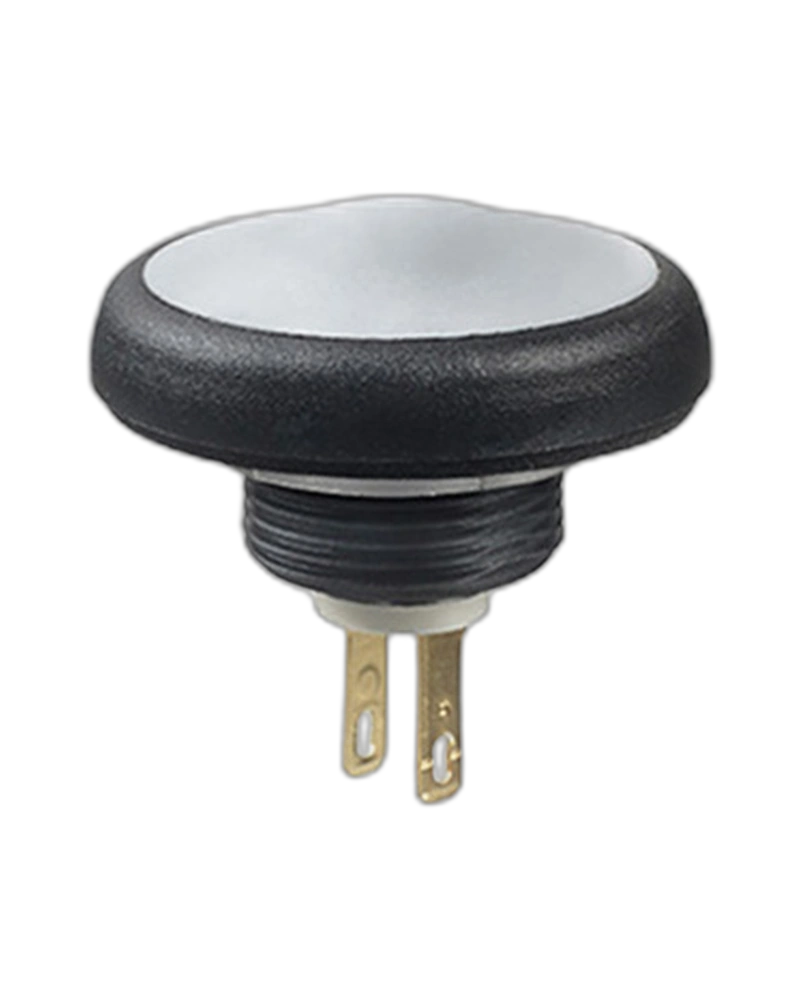

Panel Switches IFB3Z1AD600

The APEM Panel Switches IFB3Z1AD600 is a Switches and Pushbutton with documented product-specific characteristics including Terminals: Quick Connect; Insulation resistance: 1 GΩ min. at 500 VDC; Dielectric strength: 1,000 VAC rms. between terminals and frame 1,500 VAC between terminals Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing (switches mounted on panel):- IP67 (thr.

Key Features

• Terminals: Quick Connect
• Insulation resistance: 1 GΩ min. at 500 VDC
• Dielectric strength: 1,000 VAC rms. between terminals and frame 1,500 VAC between terminals Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing (switches mounted on panel):- IP67 (thr
• Operating temperature: -20 °C to +85 °C (-4 °F to 185 °F) Soldering: 320°C max. for 3 seconds Round Ø9.6 mm h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options h=14.9 mm Chamfer edges Full, lens or legen
• Panel thickness: - Snap-in models: 0.8 mm (.031) min. - 2.5 mm (.098) max. - Threaded bushing models: 0.8 mm (.031) min. - 5 mm (.196) max.
• Total travel: 4 mm (.157)
• operating force: 6,5 N +/- 2N
• Torque: 1.5 Nm max. applied to nut
• Initial contact resistance: 50 mΩ max.
• Max. current/voltage rating with resistive load: 400 mA 32 VAC - 100 mA 48 VDC
• The switch features an IP67 sealing level (threaded bushing models) and excellent resistance to frost.
• 25mm and body dia.16mm Can be used with gloves
• Round Ø9.6 mm h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options
• h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options
• Can be operated with gloved hands Snap-in and threaded bushing models Resistant to frost Sealed to IP54 or IP67
• Snap-in and threaded bushing models Resistant to frost Sealed to IP54 or IP67
• Resistant to frost Sealed to IP54 or IP67
• Sealed to IP54 or IP67
• Chamfer edges Full, lens or legend illumination option 20 standard color options
• Full, lens or legend illumination option 20 standard color options
• 20 standard color options
• Datasheet 3D CAD Files Name Last Updated File Type File Size pusbutton_switches_serie_IF 16/08/2024
• Electrical Functions: Normally Open (NO) Contact Materials: Silver (Gold-Plated) Case Color: Black
• Two mounting styles are available: threaded bushing (IFS) or snap-in (IFB).
• Actuator dia.
