Explore performance details, construction highlights, applications, and technical information in one clear overview.

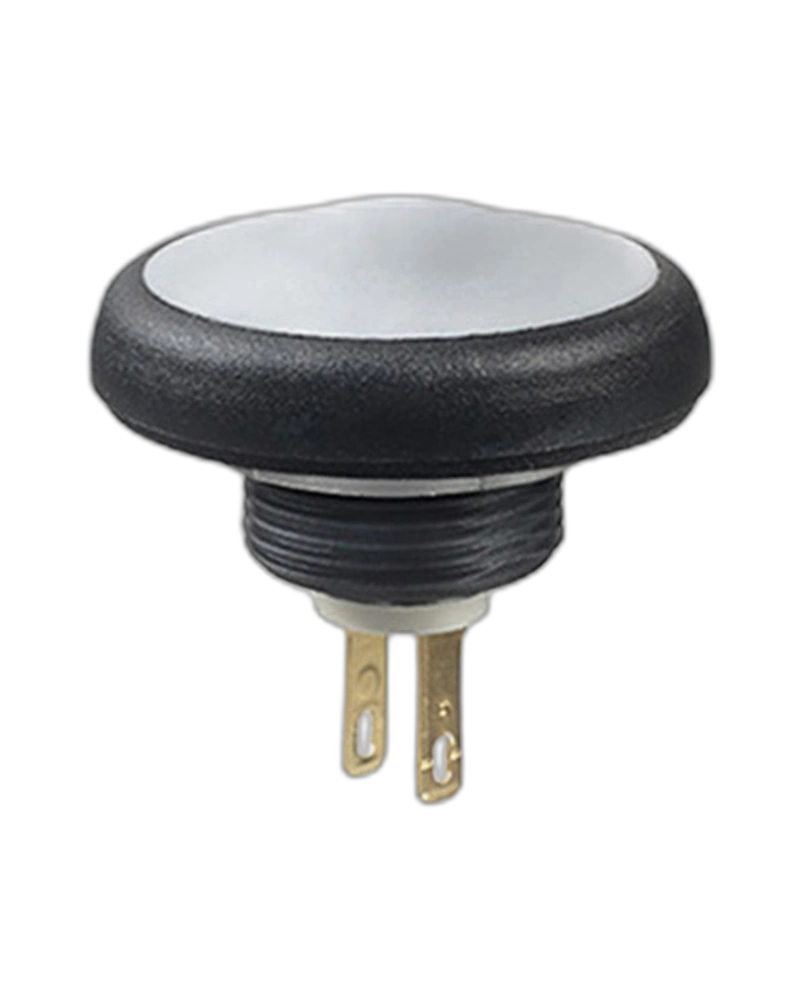

The APEM Panel Switches IFB3Z1AD500 is a robust, round-mounted autoswitch designed for industrial applications. With an IP67 seal for dust and water resistance, 500,000-cycle electrical life, and 20 standard color options, this switch ensures reliable operation in harsh environments. It supports 32 VAC/100 mA and 48 VDC/100 mA loads with a maximum operating temperature of -20°C to +85°C.
The APEM Panel Switches IFB3Z1AD500 is a high-reliability, round-mounted autoswitch engineered for demanding industrial environments. This switch features an IP67-rated seal for complete protection against dust and water immersion, ensuring uninterrupted operation in challenging conditions. With an electrical life of 500,000 cycles at full load, it delivers long-term performance for critical control applications. The switch supports 32 VAC/100 mA and 48 VDC/100 mA loads, operates within a temperature range of -20°C to +85°C, and includes 20 standard color options for customization. Its quick-connect terminals and snap-in or threaded bushing models provide flexible installation options while maintaining robust performance in frost-resistant conditions.
The IFB3Z1AD500 operates with a maximum current of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. It features an initial contact resistance of 50 mΩ max and a dielectric strength of 1,000 VAC rms between terminals and frame, with 1,500 VAC between terminals. The switch is rated for 500,000 cycles of electrical life at full load.
Engineered for extreme conditions, the IFB3Z1AD500 withstands temperatures from -20°C to +85°C (-4°F to 185°F). Its IP67 rating ensures complete protection against dust and water immersion, while frost resistance guarantees reliable operation in cold environments. The switch is also sealed to IP54 or IP67 standards for enhanced durability.
With a round Ø9.6 mm diameter and height of 14.9 mm, the IFB3Z1AD500 features chamfered edges for safety and smooth handling. It supports full, lens, or legend illumination options and is available in 20 standard colors. The switch can be operated with gloved hands and is designed for quick installation via snap-in or threaded bushing models.
The IFB3Z1AD500 is a normally open (NO) switch with a force requirement of 5 N for operation. It includes an insulation resistance of 1 GΩ min. at 500 VDC and is resistant to frost. The switch can be soldered at a maximum temperature of 320°C for 3 seconds, ensuring compatibility with standard manufacturing processes.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 VAC rms. between terminals and frame 1,500 VAC between terminals Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing (switches mounted on panel):- IP67 (thr |
| Operating temperature | -20 °C to +85 °C (-4 °F to 185 °F) Soldering : 320°C max. for 3 seconds Round Ø9.6 mm h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options h=14.9 mm Chamfer edges Full, lens or legen |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches IFB3Z1AD500 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 VAC rms. between terminals and frame 1,500 VAC between terminals Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing (switches mounted on panel):- IP67 (thr |
| Operating temperature | -20 °C to +85 °C (-4 °F to 185 °F) Soldering : 320°C max. for 3 seconds Round Ø9.6 mm h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options h=14.9 mm Chamfer edges Full, lens or legen |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
