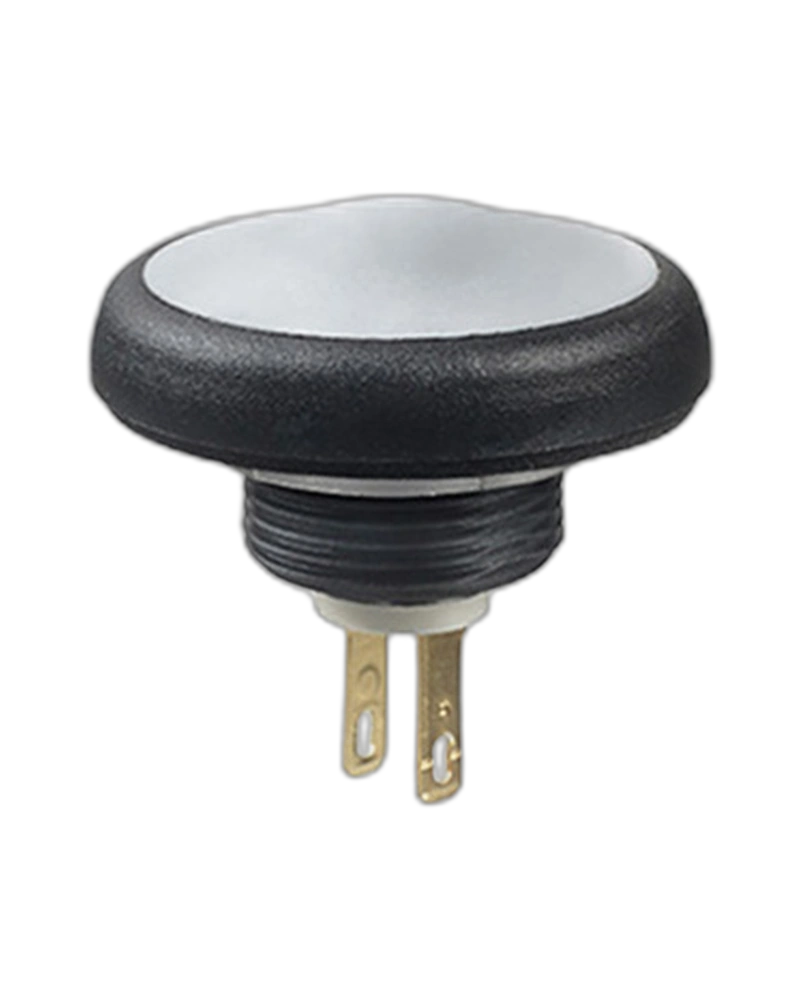

The APEM Panel Switches IFB3Z1AD200 is a robust autoswitch designed for industrial applications. Featuring IP67 sealing, 500,000 cycle electrical life, and 1 GΩ insulation resistance at 500 VDC, this switch ensures reliable operation in harsh environments. Ideal for demanding electrical systems requiring high durability and frost resistance.
The APEM Panel Switches IFB3Z1AD200 is a high-reliability autoswitch engineered for industrial use, combining exceptional durability with precise electrical performance. With a compact round design (Ø9.6 mm, h=14.9 mm), this switch delivers robust operation across extreme temperatures (-20 °C to +85 °C) and features IP67 sealing for complete protection against dust and water immersion. Its 500,000-cycle electrical life ensures long-term reliability under full load conditions, while the 1 GΩ insulation resistance at 500 VDC and 1,000 VAC dielectric strength guarantee safe electrical isolation even in demanding environments. The switch supports 20 standard color options and offers flexible illumination options, making it suitable for applications requiring both functionality and visual clarity.
The IFB3Z1AD200 delivers precise electrical performance with a maximum current rating of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. It maintains low initial contact resistance (50 mΩ max) and features a dielectric strength of 1,000 VAC rms between terminals and frame, with 1,500 VAC between terminals for enhanced safety. The switch operates reliably within a wide temperature range (-20 °C to +85 °C) and is designed for use with gloved hands, ensuring safe operation in industrial settings.
Engineered for extreme conditions, the IFB3Z1AD200 offers IP67 sealing, providing complete protection against dust and water immersion. This makes it ideal for outdoor installations or environments with high exposure to moisture, such as marine or industrial facilities. The switch is also frost-resistant, ensuring consistent performance in cold climates without degradation of electrical properties.
With a compact round profile (Ø9.6 mm, h=14.9 mm), the IFB3Z1AD200 features chamfered edges for safe handling and smooth operation. It supports 20 standard color options and offers full, lens, or legend illumination options to enhance visibility in low-light conditions. The switch includes quick-connect terminals for easy installation and compatibility with snap-in and threaded bushing models.
The IFB3Z1AD200 is designed for high-reliability applications with a 500,000-cycle electrical life at full load, ensuring long-term performance without frequent replacement. Its normally open (NO) electrical function allows for precise control of circuits, while the ability to operate with gloved hands enhances safety during installation and maintenance. The switch is suitable for both indoor and outdoor use, thanks to its robust sealing and temperature tolerance.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 VAC rms. between terminals and frame 1,500 VAC between terminals Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing (switches mounted on panel):- IP67 (thr |
| Operating temperature | -20 °C to +85 °C (-4 °F to 185 °F) Soldering : 320°C max. for 3 seconds Round Ø9.6 mm h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options h=14.9 mm Chamfer edges Full, lens or legen |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches IFB3Z1AD200 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 VAC rms. between terminals and frame 1,500 VAC between terminals Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing (switches mounted on panel):- IP67 (thr |
| Operating temperature | -20 °C to +85 °C (-4 °F to 185 °F) Soldering : 320°C max. for 3 seconds Round Ø9.6 mm h=14.9 mm Chamfer edges Full, lens or legend illumination option 20 standard color options h=14.9 mm Chamfer edges Full, lens or legen |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
