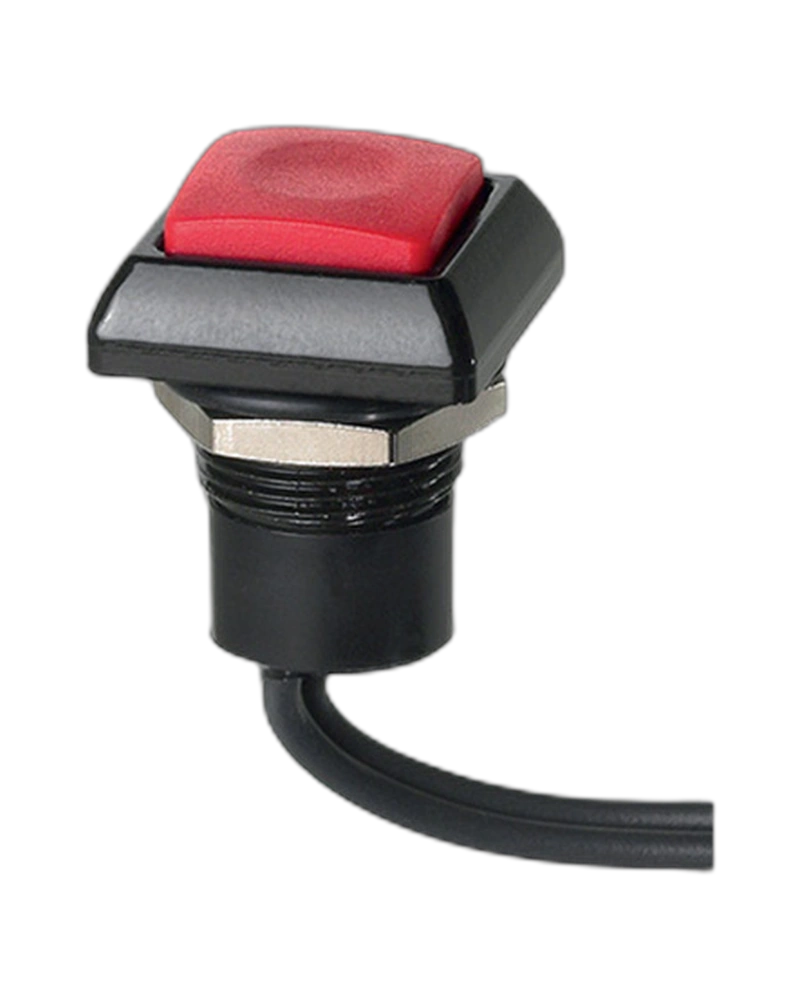

The ICC3SAD2 Panel Switch features a sleek design, pushbutton mechanism, and solder lug terminals for reliable control of electronic systems. Upgrade your setup with this efficient device. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| force | 4 N |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 HZ between terminals Front panel |
| Panel thickness | 1.5 mm (.059) min. 4 mm (.157 max.) |
| Total travel | 1.7 mm (.067)+/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles |
| Torque | 1,5 Nm max. applied to nut Soldering: 320 °C max. for 3 sec Soldering: 320 °C max. for 3 sec Momentary with short case, reduced behind-panel depth Tactile feedback Flat round actuator for optional marking Glossy actuator |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Max. current/voltage rating with resistive load | 5 A 28 VDC, 70,000 cycles, 0.2 A 48 VDC, 500,000 cycles, 0.5 A 48 VAC, 500,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
