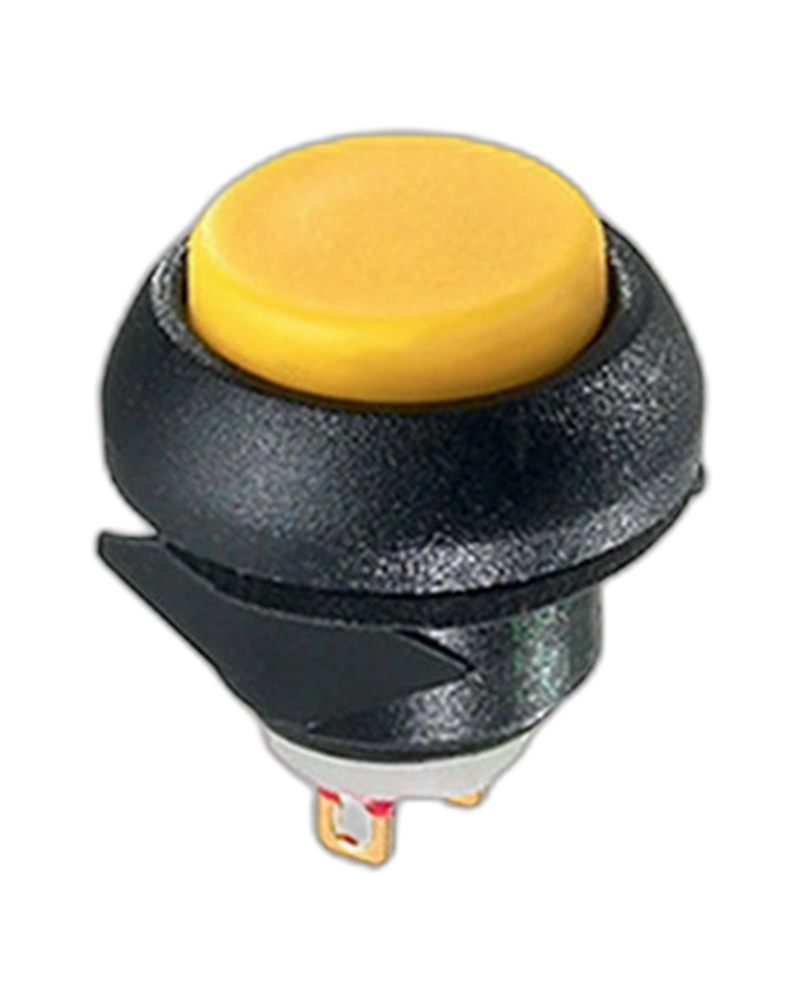

The APEM Panel Switches IBR3Z1AD900 is a compact, lightweight autoswitch designed for robust industrial applications. Featuring tactile feedback, IP54 sealing, and reliable electrical performance, this switch operates within -40°C to +85°C temperatures and handles up to 400 mA at 32 VAC or 100 mA at 48 VDC. Ideal for demanding environments requiring high durability and precise control.
The APEM Panel Switches IBR3Z1AD900 is a high-reliability, compact autoswitch engineered for industrial use in harsh conditions. With a robust IP54 seal, this switch ensures protection against dust and water ingress while maintaining exceptional electrical performance. Designed for operation across a wide temperature range (-40°C to +85°C), it delivers consistent performance in demanding environments. The switch features tactile feedback for precise user interaction, quick-connect terminals, and a low contact resistance of 50 mΩ max. Its electrical life of 500,000 cycles at full load makes it suitable for applications requiring long-term reliability without frequent maintenance.
The APEM Panel Switches IBR3Z1AD900 operates with a max. current/voltage rating of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. It delivers an initial contact resistance of 50 mΩ max and an insulation resistance of 1 GΩ min. at 500 VDC, ensuring reliable electrical connections and minimal signal degradation in industrial circuits.
Engineered for extreme conditions, this switch withstands shock resistance of 100 g (IEC 512-4, test 6c) and vibration resistance from 10 to 500 Hz at 10 g (IEC 512-4, test 6d). It also passes salt spray testing (IEC 512-6, test 11f), making it suitable for outdoor or corrosive environments without compromising performance.
With a total travel of 1.7 mm (±0.3 mm) and operating force of 4 N (±3 N), the switch provides smooth operation and precise actuation. Its compact design features a panel thickness of 0.8 mm (min.) to 1.8 mm (max.) and quick-connect terminals for easy installation and maintenance.
The switch demonstrates an electrical life of 500,000 cycles at full load, ensuring extended service life in high-demand applications. Its dielectric strength of 1,000 Vrms and robust construction support consistent performance even under demanding electrical conditions.
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP54 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 Soldering : 300 °C max. for 3 seconds Low level or mechanical life: 1 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches IBR3Z1AD900 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP54 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 Soldering : 300 °C max. for 3 seconds Low level or mechanical life: 1 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
