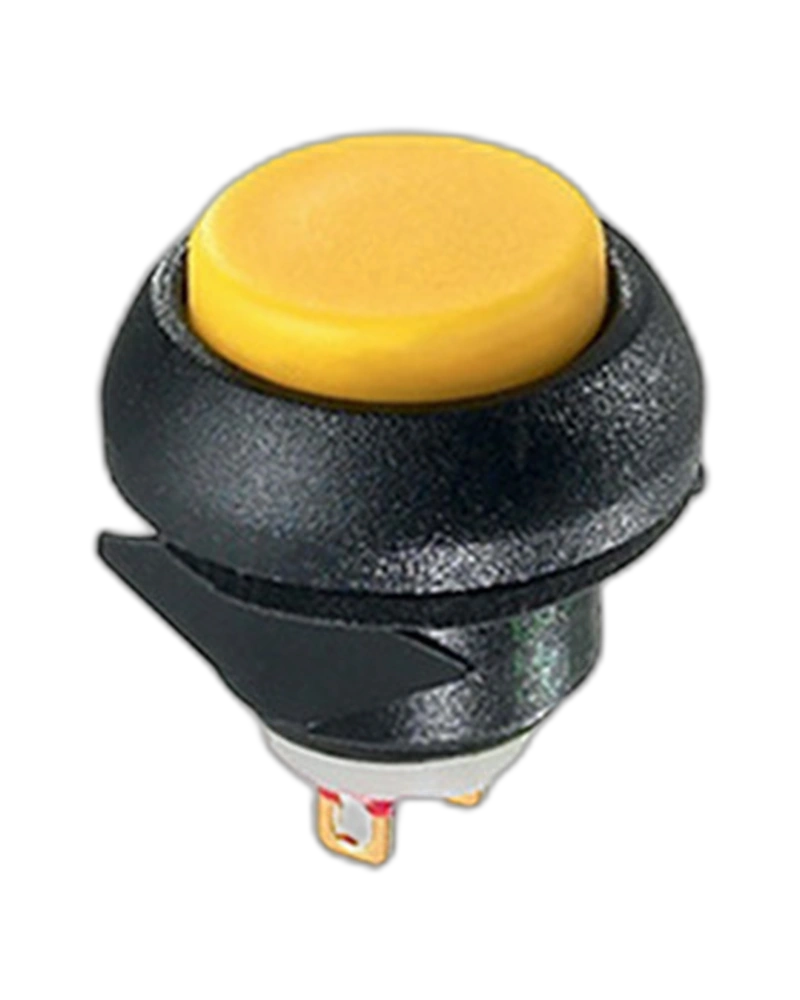

The APEM Panel Switches IBR3Z1AD600 is a compact, lightweight autoswitch designed for industrial applications. Featuring tactile feedback, IP54 sealing, and robust electrical performance, this switch operates reliably across extreme temperatures (-40°C to +85°C) and withstands harsh environments including shock, vibration, and salt spray. Ideal for demanding automation systems requiring precise control and durability.
The APEM Panel Switches IBR3Z1AD600 is a high-reliability, snap-in autoswitch engineered for industrial automation environments. This compact switch delivers precise tactile feedback, robust sealing to IP54 standards, and exceptional electrical performance with a dielectric strength of 1,000 Vrms and an insulation resistance of 1 GΩ min. at 500VDC. Designed for operation across a wide temperature range (-40°C to +85°C), it maintains consistent performance in challenging conditions including shock resistance (100 g), vibration resistance (10-500 Hz - 10 g), and salt spray resistance (IEC 512-6, test 11f). The switch supports a maximum current of 400 mA at 32 VAC and 100 mA at 48 VDC with resistive loads, ensuring reliable operation in critical industrial applications.
The IBR3Z1AD600 delivers reliable electrical operation with a maximum current rating of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. It features an initial contact resistance of 50 mΩ max and an electrical life of 500,000 cycles at full load, ensuring long-term stability in demanding industrial circuits.
Engineered for harsh industrial environments, this switch meets stringent environmental standards including shock resistance (100 g per IEC 512-4, test 6c), vibration resistance (10-500 Hz - 10 g per IEC 512-4, test 6d), and salt spray resistance (IEC 512-6, test 11f). The IP54 sealing protects against dust and water ingress, while the operating temperature range of -40°C to +85°C ensures functionality in extreme conditions.
With a compact design (panel thickness: 0.8 mm to 1.8 mm), the IBR3Z1AD600 offers a total travel of 1.7 mm (±0.3 mm) and requires an operating force of 4 N (±3 N). Its quick-connect terminals and round, curved actuator provide smooth operation and easy installation, while the switch supports up to 1,000,000 cycles for low-level or mechanical life.
This autoswitch is ideal for industrial automation systems requiring reliable, low-maintenance switching solutions. Its robust construction, environmental resilience, and precise tactile feedback make it suitable for applications such as control panels, machinery interfaces, and systems exposed to vibration, dust, or temperature fluctuations.
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP54 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 Soldering : 300 °C max. for 3 seconds Low level or mechanical life: 1 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches IBR3Z1AD600 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP54 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 Soldering : 300 °C max. for 3 seconds Low level or mechanical life: 1 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
