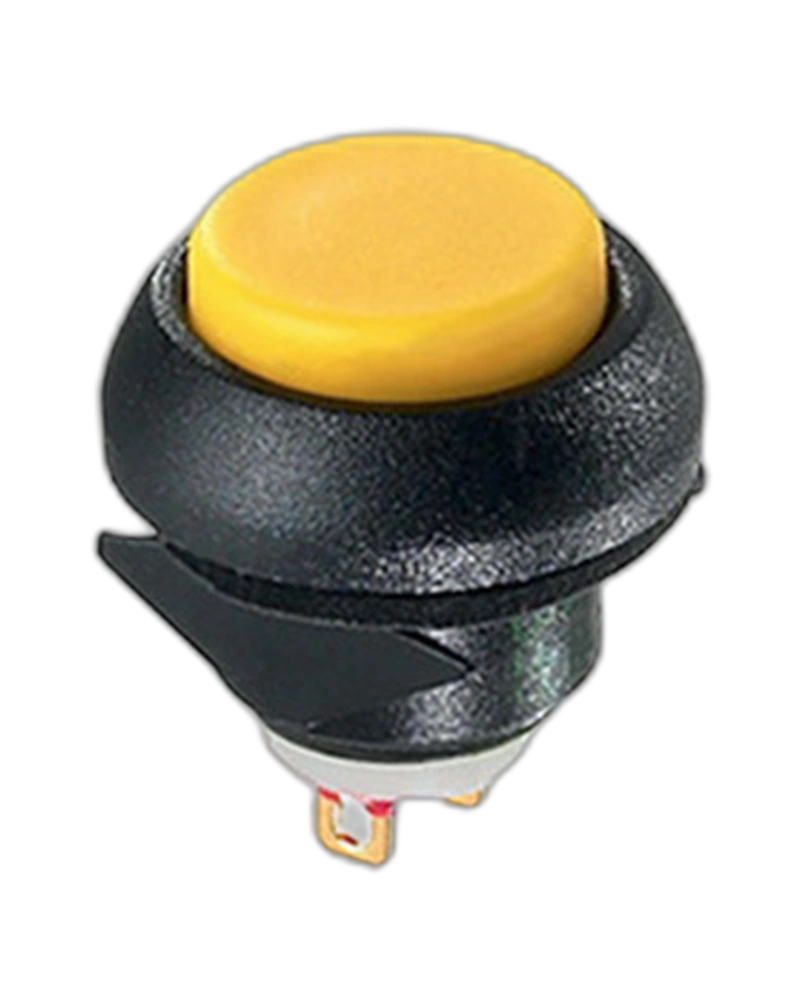

IBR3SAD110 IBR3SAD110: Versatile mounting style for easy installation and adaptability in various applications. Select Quantity
| Feature | Specification |
|---|---|
| Force | 2 N |
| Sealing | IP67 |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP54 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 Soldering : 300 °C max. for 3 seconds Low level or mechanical life: 1 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
