Explore performance details, construction highlights, applications, and technical information in one clear overview.
The APEM Panel Switches IBR3PAD600 is a robust autoswitch designed for industrial applications. With a panel thickness of 0.8 mm to 1.8 mm, total travel of 1.7 mm (±0.3 mm), and operating force of 4 N (±3 N), this switch offers reliable performance for low-current circuits. Its IP67 sealing ensures protection against dust and water, making it ideal for demanding environments.

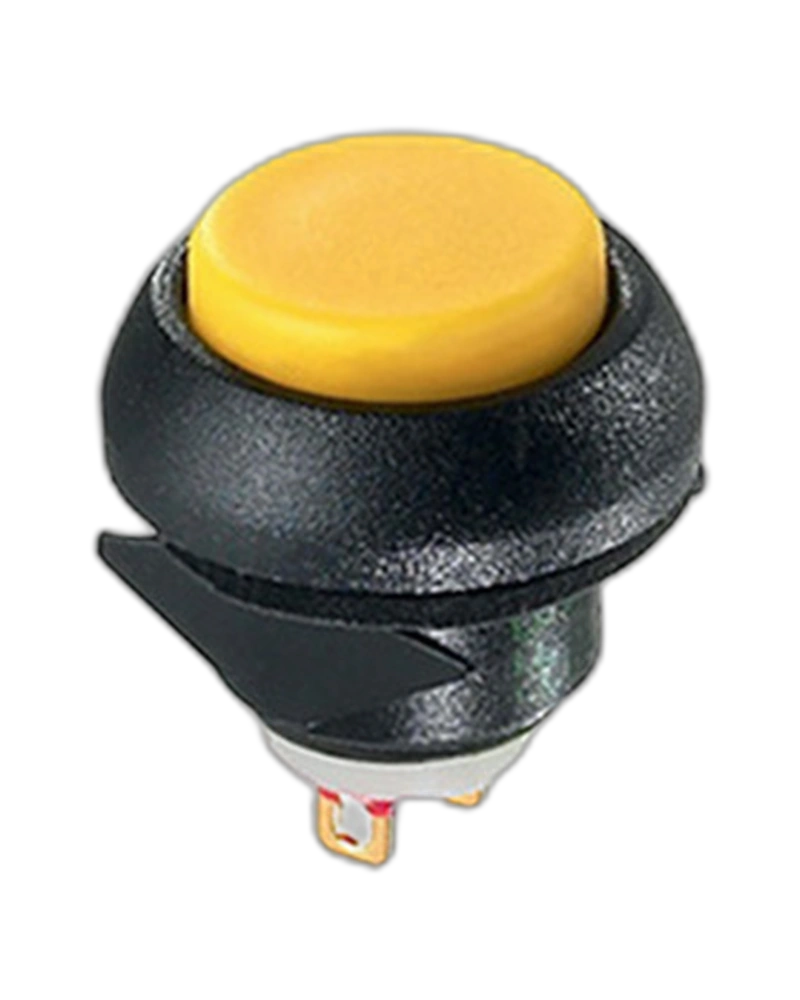

The APEM Panel Switches IBR3PAD600 is a precision-engineered autoswitch designed for industrial control panels and machinery. This switch delivers precise mechanical operation with a compact form factor, featuring a round, curved actuator for tactile feedback and a snap-in mounting option. Its IP67 rating provides exceptional protection against dust and water ingress, ensuring long-term reliability in harsh industrial settings. The switch supports both AC and DC loads up to 32 VAC/400 mA and 48 VDC/100 mA, making it suitable for a wide range of low-power applications where durability and ease of installation are critical.
The APEM Panel Switches IBR3PAD600 supports both AC and DC loads with a maximum current rating of 400 mA at 32 VAC and 100 mA at 48 VDC. This electrical capability ensures compatibility with a wide range of low-power industrial systems while maintaining safety and efficiency.
With a panel thickness ranging from 0.8 mm to 1.8 mm, the switch accommodates standard industrial panel dimensions. The total travel of 1.7 mm (±0.3 mm) and operating force of 4 N (±3 N) provide precise actuation with minimal user effort, ideal for applications requiring consistent mechanical reliability.
The IP67 rating ensures complete protection against dust and water ingress, making the switch suitable for outdoor installations and harsh industrial environments. This level of sealing extends the switch's operational life without compromising performance.
The switch features a snap-in mounting option with a reduced bezel design, allowing for compact integration into control panels. The standard mounting size of 15 mm (0.590 in) ensures easy installation while maintaining a sleek profile.
| Feature | Specification |
|---|---|
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Feature | Specification |
|---|---|
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm |
| operating force | 4 N +/- 3 N |
| Options | Reduced Bezel Standard Mounting (15mm,0.590in) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches IBR3PAD600 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Feature | Specification |
|---|---|
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm |
| operating force | 4 N +/- 3 N |
| Options | Reduced Bezel Standard Mounting (15mm,0.590in) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
