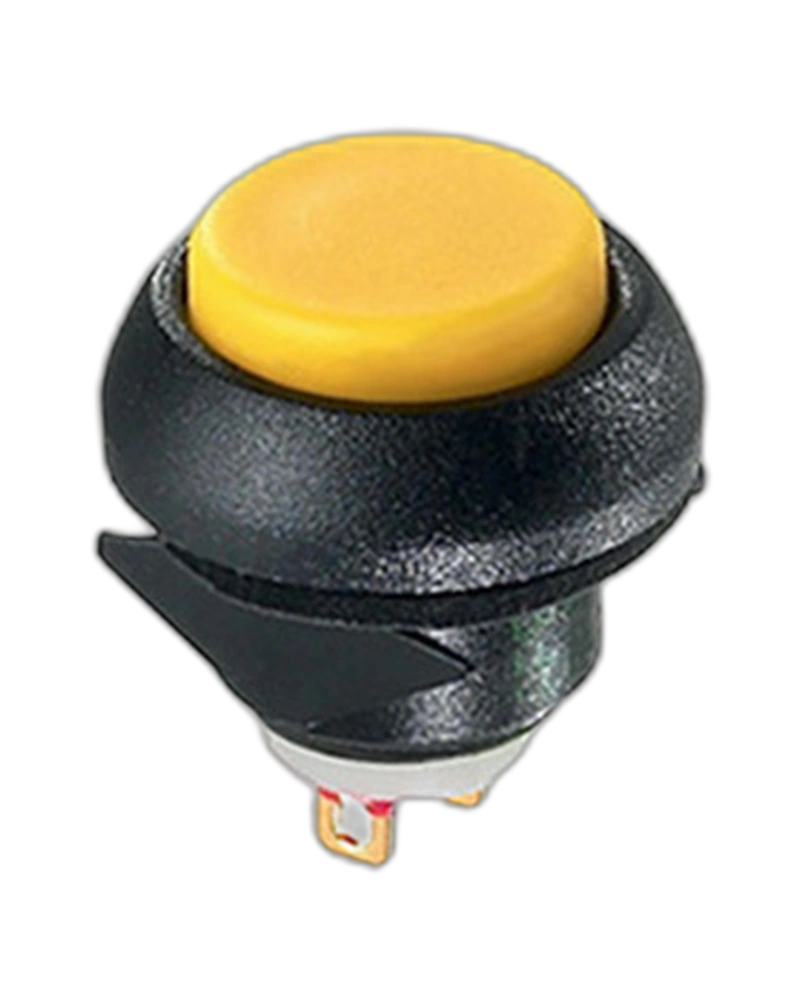

The APEM Panel Switches IBP3SAD600 is a compact, lightweight autoswitch designed for industrial applications. Featuring tactile feedback, IP54 sealing, and robust electrical performance, it operates reliably across temperatures from -40°C to +85°C. This switch supports 500,000 cycles at full load and handles 400 mA at 32 VAC or 100 mA at 48 VDC with resistive loads.
The APEM Panel Switches IBP3SAD600 is a high-reliability, compact autoswitch engineered for demanding industrial environments. With a robust construction that meets IP54 sealing standards, this switch ensures protection against dust and water ingress while maintaining precise electrical performance. Designed for applications requiring high cycle life and stable operation, the IBP3SAD600 delivers consistent performance across extreme temperature ranges (-40°C to +85°C) and withstands rigorous mechanical stresses including shock resistance up to 100g and vibration resistance from 10 to 500 Hz. Its tactile feedback and snap-in design provide immediate user confirmation and ease of installation, making it ideal for critical control systems where reliability is paramount.
The IBP3SAD600 delivers precise electrical operation with a maximum current rating of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. It features an initial contact resistance of 50 mΩ max and insulation resistance of 1 GΩ min at 500 VDC, ensuring minimal signal degradation and reliable circuit integrity. The switch operates as a Normally Open (NO) contact, providing straightforward integration into control circuits.
Engineered for harsh industrial conditions, the IBP3SAD600 withstands extreme temperatures from -40°C to +85°C (-40°F to 185°F), shock resistance up to 100g (IEC 512-4, test 6c), and vibration resistance from 10 to 500 Hz at 10g (IEC 512-4, test 6d). It also passes salt spray testing (IEC 512-6, test 11f), ensuring long-term reliability in corrosive environments.
With a panel thickness ranging from 0.8 mm to 1.8 mm, the IBP3SAD600 offers a balance of strength and compactness. The switch requires an operating force of 4 N +/- 3 N and has a total travel of 1.7 mm +/- 0.3 mm, ensuring smooth operation and minimal wear. Its snap-in design allows for quick installation with minimal tooling.
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP54 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 Soldering : 300 °C max. for 3 seconds Low level or mechanical life: 1 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches IBP3SAD600 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP54 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 Soldering : 300 °C max. for 3 seconds Low level or mechanical life: 1 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
