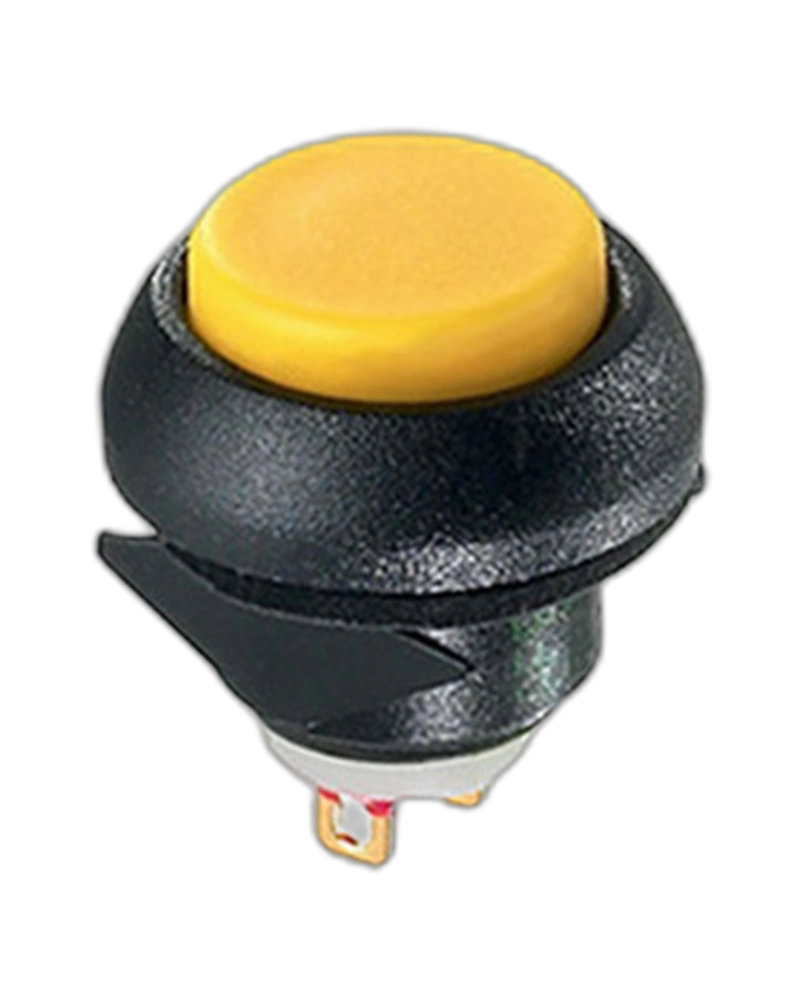

The APEM Panel Switches IBP3SAD500104UL is a robust, sealed switch designed for industrial applications. With an IP54 rating, it offers reliable operation in harsh environments, featuring tactile feedback, compact design, and electrical life up to 500,000 cycles. Ideal for demanding electrical systems requiring durability and precise control.
The APEM Panel Switches IBP3SAD500104UL is a high-performance, sealed panel switch engineered for industrial use. This compact, lightweight switch provides tactile feedback and operates within an extreme temperature range of -40°C to +85°C, ensuring reliable performance in challenging environments. Its IP54 sealing protects against dust and water ingress, while the robust construction meets stringent electrical and mechanical standards for long-term durability in critical applications.
The IBP3SAD500104UL supports a maximum current of 400 mA at 32 VAC and 100 mA at 48 VDC with resistive loads. It features a normally open (NO) electrical function and silver contact materials with gold plating for enhanced conductivity and corrosion resistance.
Engineered for extreme conditions, this switch withstands shock resistance of 100 g (IEC 512-4, test 6c) and vibration resistance from 10 to 500 Hz at 10 g (IEC 512-4, test 6d). It also passes salt spray testing (IEC 512-6, test 11f) and operates reliably across a temperature range of -40°C to +85°C.
With a total travel of 1.7 mm (±0.3 mm), the switch requires an operating force of 4 N (±3 N). Its compact design (panel thickness: 0.8 mm to 1.8 mm) ensures lightweight integration while maintaining robust mechanical stability.
The switch delivers up to 500,000 cycles of electrical life at full load and 1,000,000 cycles for low-level or mechanical operation. It features an initial contact resistance of 50 mΩ max and insulation resistance of 1 GΩ min at 500VDC, ensuring consistent performance over time.
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP54 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 Soldering : 300 °C max. for 3 seconds Low level or mechanical life: 1 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO),Bushing Bezel:Black Standard,Contact Materials:Silver (Gold-Plated) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches IBP3SAD500104UL is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP54 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 Soldering : 300 °C max. for 3 seconds Low level or mechanical life: 1 |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO),Bushing Bezel:Black Standard,Contact Materials:Silver (Gold-Plated) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
