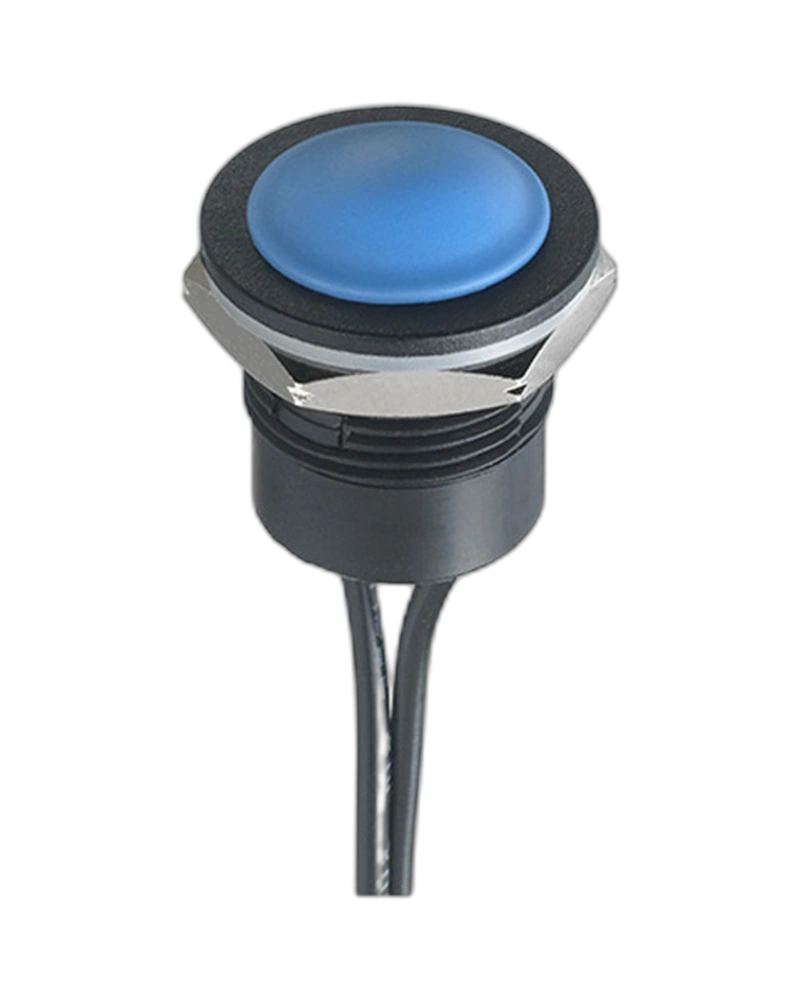

The APEM Panel Switches IAR5F1400 is a robust autoswitch designed for industrial applications. With an IP67 sealing rating, 100 MΩ insulation resistance at 500 VDC, and a total travel of 1.5 mm, this switch ensures reliable operation in harsh environments. Ideal for demanding electrical systems requiring high durability and precise switching performance.

Product Overview

The APEM Panel Switches IAR5F1400 is a high-performance autoswitch engineered for industrial use, delivering exceptional reliability and precision in demanding environments. Featuring an IP67 rating for dust and water resistance, this switch maintains electrical integrity under challenging conditions with a minimum insulation resistance of 100 MΩ at 500 VDC. Its compact design, with a panel thickness of 7 mm max and a total travel of 1.5 mm (±0.3 mm typical), ensures precise operation while meeting stringent electrical and environmental requirements. The switch supports up to 1,000,000 cycles of electrical life at full load, making it suitable for critical applications where long-term durability is essential.

Electrical Performance

The IAR5F1400 delivers precise electrical switching with a minimum insulation resistance of 100 MΩ at 500 VDC, ensuring robust protection against electrical faults. Its initial contact resistance of 100 mΩ max minimizes voltage drop during operation, while the dielectric strength of 500 Vrms guarantees reliable isolation under high-voltage conditions. The switch supports up to 1,000,000 cycles of electrical life at full load, making it ideal for applications requiring long-term reliability without frequent maintenance.

Environmental Resilience

Engineered for extreme conditions, the IAR5F1400 operates within a temperature range of -20 °C to +65 °C, ensuring consistent performance in both cold and hot environments. Its IP67 sealing rating provides complete protection against dust and water ingress, allowing the switch to function reliably in industrial settings where exposure to harsh elements is common.

Mechanical Durability

The switch features a compact panel thickness of 7 mm max, optimized for integration into tight spaces without compromising structural integrity. With a total travel of 1.5 mm (±0.3 mm typical), the IAR5F1400 ensures precise and repeatable operation, while the torque requirement of 0.5 to 1 Nm max applied to the nut ensures secure mounting without excessive force.

Technical Specifications

Product Summary

The APEMPanel Switches IAR5F1400 is presented using the documented product characteristics available for this model.
