Explore performance details, construction highlights, applications, and technical information in one clear overview.

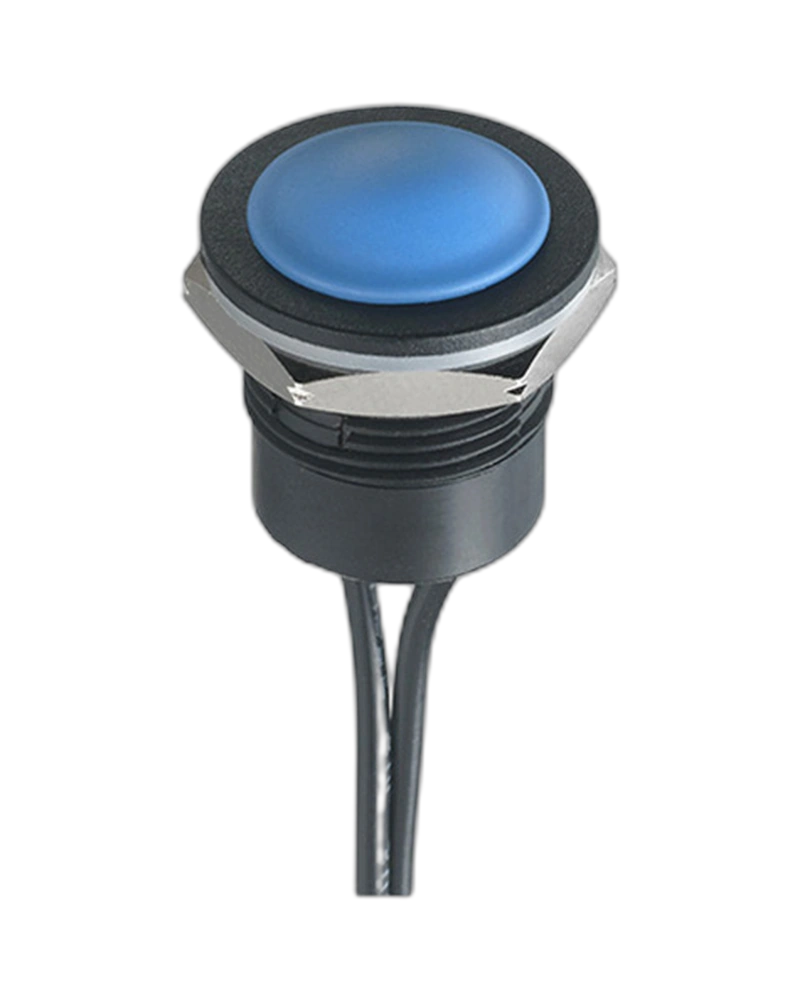

The IAR5F1300 Panel Switch features a sleek curved design, NC/NO functions, and durable gold-plated contacts for reliable performance in electrical control applications. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| force | 7 N |
| Feature | Specification |
|---|---|
| Insulation resistance | 100 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms Electrical life at full load: 1,000,000 cycles Electrical life at full load: 1,000,000 cycles Front panel sealing (see drawing opposite): IP65 and IP67 acc. to IEC 60529 Salt spray: IEC 512-6, test 11f |
| Panel thickness | 7 mm (.276) max. |
| Total travel | 1.5 mm (.059) +/- 0.3 mm Typical |
| operating force | 7 N +/- 2 N Low level or mechanical life: 1,000,000 cycles |
| Torque | 0.5 to 1 Nm max. applied to nut Resistant to frost, sand and hydrocarbons Tactile feedback Front panel sealed to IP65 and IP67 Tactile feedback Front panel sealed to IP65 and IP67 Front panel sealed to IP65 and IP67 Disc |
| Operating temperature | -20 °C to +65 °C Salt spray: IEC 512-6, test 11f |
| Max. current/voltage rating with resistive load | 2 A 24 VDC |
| Electrical Functions | Combined (NC/NO),Actuator Shape:Round, Curved |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
