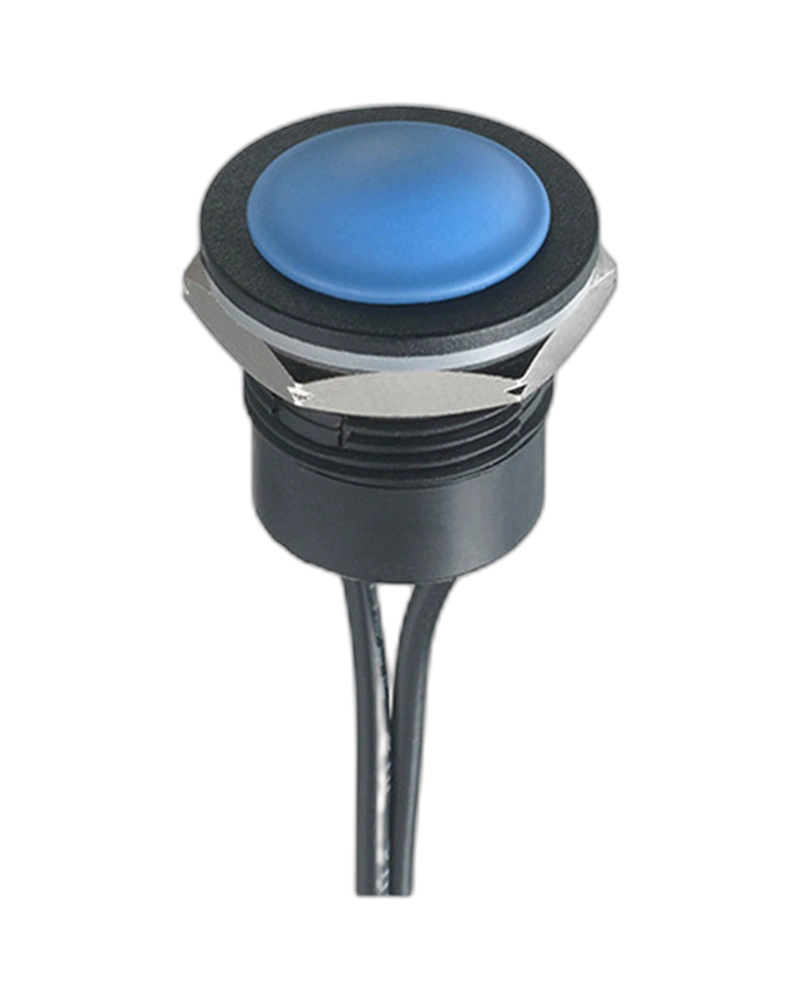

IAR5F1200 IAR5F1200 Panel Switch features a sleek round actuator, NC/NO functions, and durable gold-plated contacts for reliable performance in various applications. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 100 MΩ min. at 500 VDC |
| Panel thickness | 7 mm (.276) max. |
| Total travel | 1.5 mm (.059) +/- 0.3 mm Typical |
| Torque | 0.5 to 1 Nm max. applied to nut |
| Initial contact resistance | 100 mΩ max. |
| Dielectric strength | 500 Vrms Electrical life at full load: 1,000,000 cycles |
| Operating temperature | -20 °C to +65 °C |
| force | 7 N |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 100 MΩ min. at 500 VDC |
| Panel thickness | 7 mm (.276) max. |
| Total travel | 1.5 mm (.059) +/- 0.3 mm Typical |
| Torque | 0.5 to 1 Nm max. applied to nut |
| Operating temperature | -20 °C to +65 °C |
