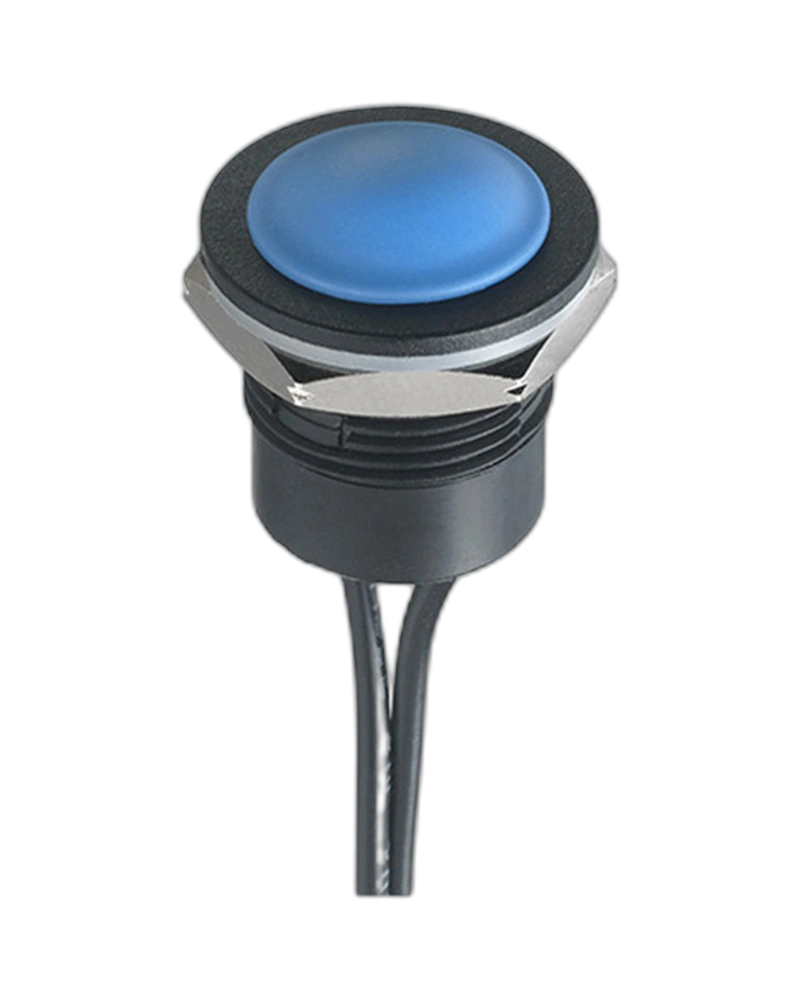

The APEM Panel Switches IAR5F1100 is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 100 MΩ min. at 500 VDC; Dielectric strength: 500 Vrms Electrical life at full load: 1,000,000 cycles Electrical life at full load: 1,000,000 cycles Front panel sealing (see drawing opposite): IP65 and IP67 acc. to IEC 60529 Salt spray: IEC 512-6, test 11f; Panel thickness: 7 mm (.276) max..
The Panel Switches IAR5F1100 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Insulation resistance | 100 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms Electrical life at full load: 1,000,000 cycles Electrical life at full load: 1,000,000 cycles Front panel sealing (see drawing opposite): IP65 and IP67 acc. to IEC 60529 Salt spray: IEC 512-6, test 11f |
| Panel thickness | 7 mm (.276) max. |
| Total travel | 1.5 mm (.059) +/- 0.3 mm Typical |
| operating force | 7 N +/- 2 N Low level or mechanical life: 1,000,000 cycles |
| Torque | 0.5 to 1 Nm max. applied to nut Rectangular rocker-action caps Three sizes: 10.1 x 12.5 / 18.65 / 25.0 mm h=12.2 mm Long travel - 2 mm The cap series can be combined into a custom keyboard Three sizes: 10.1 x 12.5 / 18.6 |
| Operating temperature | -20 °C to +65 °C Salt spray: IEC 512-6, test 11f |
| Max. current/voltage rating with resistive load | 2 A 24 VDC |
| Electrical Functions | Combined (NC/NO),Actuator Shape:Round, Curved |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches IAR5F1100 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 100 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms Electrical life at full load: 1,000,000 cycles Electrical life at full load: 1,000,000 cycles Front panel sealing (see drawing opposite): IP65 and IP67 acc. to IEC 60529 Salt spray: IEC 512-6, test 11f |
| Panel thickness | 7 mm (.276) max. |
| Total travel | 1.5 mm (.059) +/- 0.3 mm Typical |
| operating force | 7 N +/- 2 N Low level or mechanical life: 1,000,000 cycles |
| Torque | 0.5 to 1 Nm max. applied to nut Rectangular rocker-action caps Three sizes: 10.1 x 12.5 / 18.65 / 25.0 mm h=12.2 mm Long travel - 2 mm The cap series can be combined into a custom keyboard Three sizes: 10.1 x 12.5 / 18.6 |
| Operating temperature | -20 °C to +65 °C Salt spray: IEC 512-6, test 11f |
| Max. current/voltage rating with resistive load | 2 A 24 VDC |
| Electrical Functions | Combined (NC/NO),Actuator Shape:Round, Curved |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
